Overview

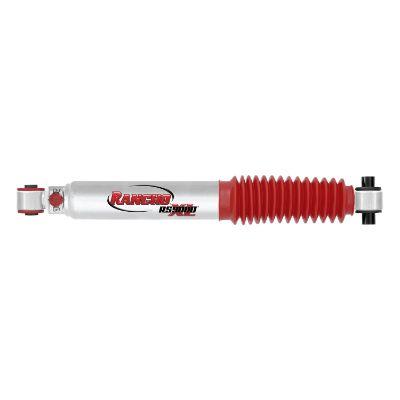

The Rancho RS999065 is a front RS9000XL tri-tube shock for the 2018 and 2019 Jeep Wrangler (JL) and the 2020 Jeep Gladiator. It is built for a front lift of 2 inches on Rubicon models and 3.5 inches on non-Rubicon models, and each shock is sold individually.

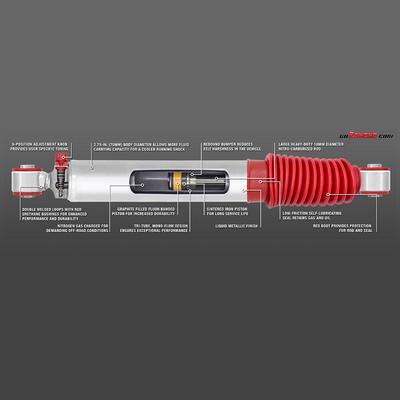

The shock has a compressed length of 18.16 inches, an extended length of 25.21 inches and 7.05 inches of travel. It has a large 2.75-inch (70 mm) tri-tube body, nine-position tuning technology and a protective boot.
The RS9000XL is a nine-position adjustable series engineered and manufactured in the U.S. Rancho backs the product with a 90-day free ride offer and a limited lifetime warranty.
Key features
- Front tri-tube shock
- 2-inch front lift for Rubicon models.
- 3.5-inch front lift for non-Rubicon models.
- Nine-position tuning technology
- Large 2.75-inch (70 mm) tri-tube body
- Protective boot
Choosing the right lift setting
Lift height changes the angle and length of the front shock, so the setting you run should match the lift on your truck. A shock sized for one lift can bind at full droop or run out of travel on a bump if the lift is different. Check the front suspension geometry, including the control arms and sway bar links, before you settle on a setup.
Front shocks are often replaced alongside other suspension work, such as new springs, bushings or a steering stabilizer. Upgrading several parts together gives more predictable handling than mixing old and new components. Look for leaking oil, a damaged boot or uneven front tire wear, since these point to a worn unit even when the truck still drives normally.
- Confirm the lift setting before buying
- Replace both front shocks together
- Inspect the boots after each season
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS999065 |
| Series | RS9000XL |
| Position | Front |
| Shock type | Tri-tube |
| Lift | 2 inch for Rubicon, 3.5 inch for non-Rubicon |
| Compressed length | 18.16 inches |
| Extended length | 25.21 inches |
| Travel | 7.05 inches |
| Charge | Gas charged |
Vehicle fitment
It is a front shock for the 2020 Jeep Gladiator in the Launch Edition, Overland, Rubicon, Sport and Sport S versions. It also fits the 2018 and 2019 Jeep Wrangler (JL) in two-door and Unlimited four-door versions.
The list does not include the Wrangler JK or Gladiator model years other than 2020. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Match the shock to your front lift. Use the 2-inch setting for Rubicon models and the 3.5-inch setting for non-Rubicon models, and confirm which lift your truck carries before installing.
What’s included
The shock is sold individually and includes a protective boot.
