Overview

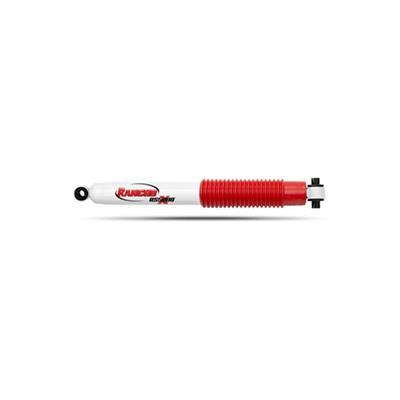

The Rancho RS55067 is a front RS5000X monotube shock for the 2018 through 2020 Jeep Wrangler JL, in two-door and Unlimited four-door body styles. It is built for a 3.5-inch lift on Rubicon models and a 4.5-inch lift on non-Rubicon models.
The shock uses progressive engagement valving, a tuned compression control valve and an enlarged 2-1/4-inch twin tube body in a monotube configuration. The design uses a rebound valving system and an advanced compression phase intended for handling on and off road.
Key features
- Front monotube shock absorber
- Progressive engagement valving
- Tuned compression control valve
- Gas pressurized body
- 16 mm nitro-carburized rod and full-displaced 35 mm bore
- 1-3/8-inch sintered iron piston with a glass-filled, Fluon banded design
- Rebound bumper, natural rubber bushings and double-welded loops
- Low-friction, self-lubricating seal and protective boot
Lift height and front shock length
On a lifted Wrangler, the front shock works through a different range of travel than it does at stock height. Lift height changes the angle of the control arms and the distance the shock must cover, so the shock is built to a specific height. Matching the shock to the lift keeps it from bottoming out or running short on the suspension’s full travel.
Monotube shocks use a single tube design, and this one pairs progressive engagement valving with a tuned compression control valve for steady damping on rough trail and highway driving. When replacing the front shocks, check the steering components and bump stops, since they share the load with the shock. Inspect the boot after trail use for tears, because grit on the rod wears the seal quickly.
- Match the shock to the lift on the truck
- Inspect the boot after trail use
- Check bump stops and steering components
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55067 |
| Series | RS5000X |
| Position | Front |
| Shock type | Monotube |
| Lift | 3.5-inch for Rubicon, 4.5-inch for non-Rubicon |
| Charge | Gas charged |
| Rod | 16 mm nitro-carburized |
| Bore | 35 mm, full-displaced |
Vehicle fitment
It is a direct fit for the 2018 through 2020 Jeep Wrangler JL two-door Rubicon, Sport and Sport S models and the Unlimited Rubicon, Sahara, Sport and Sport S models.
The list does not include the Gladiator, the 2021 and later Wrangler, or the earlier Wrangler JK. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Match the shock to your lift: 3.5 inches for Rubicon models and 4.5 inches for non-Rubicon models, since the wrong length will not sit at the correct height.
What’s included
The shock comes with its protective boot. Its bushings are natural rubber.
