Overview

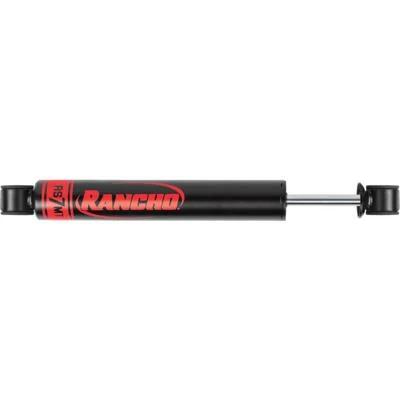

The Rancho RS77331 is a front RS7MT monotube shock for the 2007 through 2018 Jeep Wrangler (JK), in two-door and Unlimited four-door body styles. It is made for a 3.5 to 4-inch lift.
The shock is built for trucks with larger wheel and tire packages. The RS7MT dissipates heat effectively, uses a dirt wiper sealing system to keep dirt and debris out, and has a hardened piston rod that resists scuffs and corrosion.
The compressed length is 17 inches and the extended length is 26.61 inches, with 9.61 inches of travel. The top mount is a stem and the bottom mount is an eyelet.
Double-welded loops at stress areas and a double strength closure method add strength. The hot form reserve tube is part of the body design, and the all-weather fluid lets the body withstand internal temperatures of -40 to 248 degrees Fahrenheit.
Key features
- Front monotube shock for a 3.5 to 4-inch lift
- Integrated dirt wiper sealing system
- Large 2-inch monotube body with all-weather fluid for cooler operation
- Internal rebound bumper and shouldered rubber bushings to reduce noise and vibration
- PTFE-banded piston for responsiveness on changing roads
- Black satin finish with Rancho red logo
Lift height and shock length
A shock’s length is part of the suspension geometry. Lift height changes how far the shock must reach at full droop and at full compression, so the length must match the lift it is built for. On a Wrangler JK, a lift in the 3.5 to 4-inch range calls for a longer front unit than a stock truck uses.
Off-road use adds to the load on the shock, especially with larger wheel and tire packages. Heat build-up and rod damage are common, so inspect the shock after each season of trail use. Check the upper and lower mounts, the boot and the bushings at the same time, since they wear together.
- Measure ride height before buying
- Compare extended and compressed lengths
- Check the boot for tears
- Replace in pairs on the same axle
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS77331 |
| Series | RS7MT |
| Position | Front |
| Shock type | Monotube |
| Compressed length | 17 inches |
| Extended length | 26.61 inches |
| Travel | 9.61 inches |
| Body diameter | 2.0 inches |
| Top mount | Stem |
| Bottom mount | Eyelet |
Vehicle fitment
It fits the 2007 through 2018 Jeep Wrangler (JK) in two-door and Unlimited four-door versions.
The list does not include the Wrangler JL or the Gladiator, or any Wrangler model years outside 2007 through 2018. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This shock is matched to a 3.5 to 4-inch lift, so it is not the right unit for a stock or 0 to 2-inch lift. Confirm the lift height before ordering, since the extended length is longer than the 0 to 2-inch version.
What’s included
Check the package contents against your installation before starting.
