Rancho RS5000X Series Shock Absorber – RS55187

Rancho

$59.78In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 16, 2026 7:10 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS5000X rear twin tube shock for 1990–2002 Toyota 4Runner
  • Compressed length 12.34 inches, extended length 19.81 inches, travel 7.47 inches
  • Progressive engagement valving and tuned compression control valve
  • Part number RANRS55187

Description

Overview

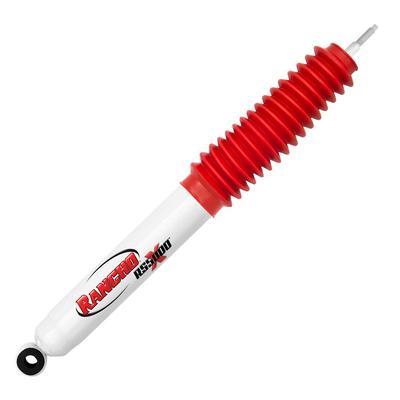

The Rancho RS55187 is a rear RS5000X twin tube shock for the 1990 through 2002 Toyota 4Runner, in the Base, Limited and SR5 versions.

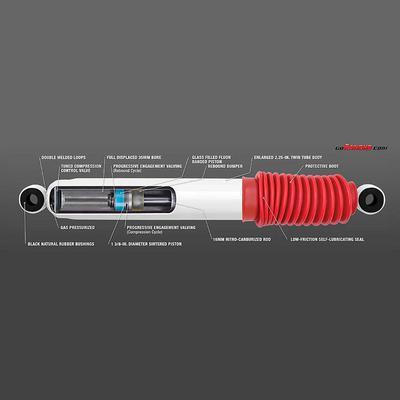

The shock measures 12.34 inches compressed, 19.81 inches extended and gives 7.47 inches of travel. It has an enlarged 2-1/4-inch twin tube body, a 16 mm nitro-carburized rod and a full-displaced 35 mm bore, plus a rebound bumper and natural rubber bushings.

Rancho says its Cross-Tuned Technology improves the vehicle’s on and off road handling and performance. The unit uses progressive engagement valving and a tuned compression control valve, and it is gas charged.

Key features

  • Rear twin tube shock for the 4Runner
  • Progressive engagement valving
  • Tuned compression control valve
  • Enlarged 2-1/4-inch twin tube body
  • 16 mm nitro-carburized rod
  • Full-displaced 35 mm bore
  • Black natural rubber bushings and double-welded loops

Rear shock on a 4Runner

The rear shocks on a 4Runner carry the load of the back of the vehicle and control rebound when the axle rises after a bump. Older 4Runners often have worn springs and bushings, and a new shock will feel best when those parts are in good shape. A twin tube design is a common choice for daily driving and light trail use.

When choosing a replacement, consider how you use the vehicle. A shock suited to stock ride height works well on paved roads, while off-road use asks more of the damper and mounts. Inspect the upper and lower bushings, look for oil on the body and check the boot. Replacing both rear shocks together keeps the vehicle balanced.

  • Look for oil streaks on the shock body
  • Check the bushings for cracks
  • Replace the boot if it is torn

Specifications

Brand Rancho
Part number RANRS55187
Series RS5000X
Position Rear
Shock type Twin tube
Compressed length 12.34 inches
Extended length 19.81 inches
Travel 7.47 inches
Charge Gas charged

Vehicle fitment

It fits the 1990 through 2002 Toyota 4Runner in the Base, Limited and SR5 versions. 4Runner years before 1990 or after 2002, and other Toyota models, are not covered. Confirm the year, model and trim of your vehicle before placing an order.

The list does not include 4Runner model years before 1990 or after 2002, or other Toyota models. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One rear shock is included, with its protective boot.

Fitment

VehicleYearsTrims
Toyota 4Runner1990–2002Base, Limited, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS55187 fit a 2003 Toyota 4Runner?

No, the 4Runner fits 1990 through 2002 only. Check the model year before ordering this rear shock, since a 2003 model falls outside its range.

How much travel does the RS55187 have?

The travel is 7.47 inches. The shock compresses to 12.34 inches and extends to 19.81 inches, so measure your old unit to confirm it matches before installing.

Is the RS55187 a front or rear shock?

It is a rear shock. It replaces the rear unit on a 1990 through 2002 4Runner, so it is not meant for the front position on that vehicle.

Do rear shocks need to be matched left and right?

Yes, replacing both rear shocks together keeps damping balanced across the axle. A single new shock beside a worn one can make the rear feel unsettled. Check the mounting bushings on both sides while the unit is off.
