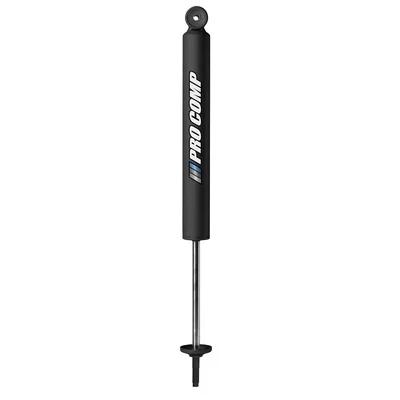

Pro Comp PRO-X Twin Tube Shock Absorber – 929592B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PRO-X gas charged twin tube shock for lifted trucks
  • Extended length 29.8 inches, collapsed length 17.1 inches, travel 12.45 inches
  • Nitrogen stabilized body with 10-stage velocity sensitive valving
  • 5/8-inch chrome hardened shaft and black powder coat finish
  • Sold individually; shock boots sold separately

Description

Overview

The Pro Comp PRO-X 929592B is a gas charged twin tube rear shock with a 29.8-inch extended length and 12.45 inches of travel. It fits 2019 to 2024 Ram 1500 and Ram 1500 Classic trucks, and the 2019 to 2021 Ram ProMaster 1500.

A twin tube shock uses an inner working cylinder inside an outer reservoir tube, a common design for trucks that see mostly pavement with some off-road use. Pro Comp built the PRO-X with a general-purpose twin tube body, 2.0 inches in diameter, and gave it extended lengths for lifted vehicles.

The 10-stage velocity sensitive valving changes damping with shock speed, so ride response shifts with road surface. The 5/8-inch chrome hardened piston rod and Teflon rebound stop support a comfortable highway ride and hold up on rough ground.

Key features

  • Gas charged twin tube design
  • Nitrogen stabilized body
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft with a Teflon rebound stop
  • Black powder coat finish

Before you buy

A gas charged shock carries a nitrogen charge in the reservoir that limits foaming of the oil during hard use. Over time, the damping oil heats up on rough ground, and the charge helps keep the response consistent. The effect is most noticeable on long descents and repeated washboard sections.

Ram trucks with a lift often run tire sizes different from stock, so the shock’s working range matters more. Check that the body, piston rod and mounting hardware are straight and free of dents, since a bent rod can bind the shock. Look for oil on the body, a leaking seal or a clunk over bumps as signs the shock is worn.

  • Oil weeping along the shock body
  • Bent or pitted piston rod
  • Clunking or bouncing after bumps

Specifications

Brand Pro Comp Suspension
Part number 929592B
Shock series PRO-X
Type Twin tube, gas charged
Location Rear
Extended length 29.8 inches
Collapsed length 17.1 inches
Travel 12.45 inches
Body diameter 2.0 inches
Piston 1-3/8-inch nylon banded
Shaft 5/8-inch chrome hardened
Valving 10-stage velocity sensitive
Finish Black powder coat
Quantity Individual shock

Vehicle fitment

It fits the 2019 to 2024 Ram 1500 and Ram 1500 Classic, and the 2019 to 2021 Ram ProMaster 1500.

It does not cover the Ram 2500 or 3500, Ram 1500 model years before 2019, or other makes. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Mount styles vary by configuration: the shock may use a stem top with a loop bottom, or eyelets at both ends. Confirm the upper and lower mount styles for your truck before ordering.

Check the installed length against the 29.8-inch extended length, since that figure sets how much room the shock needs at full droop.

What’s included

One shock absorber, sold as an individual unit.

Not included: shock boots, which Pro Comp sells as an optional accessory.

Fitment

VehicleYearsTrims
Ram 15002019–2026Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Longhorn, Rebel, Special Service, TRX, TRX Launch Edition, Tradesman
Ram 1500 Classic2019–2024Big Horn, Express, Laramie, Lone Star, SLT, Special Service, Tradesman, Warlock
Ram ProMaster 15002019–2021Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the PRO-X 929592B fit a 2019 Ram 1500?

Yes. It fits the 2019 to 2024 Ram 1500 and Ram 1500 Classic, along with the 2019 to 2021 Ram ProMaster 1500. It does not fit the Ram 2500 or 3500, so confirm your year and model before ordering.

What is the extended length of the 929592B?

The extended length is 29.8 inches and the collapsed length is 17.1 inches, which gives 12.45 inches of travel. Check those figures against the space your suspension has before you order.

Are shock boots included?

No. Shock boots are an optional accessory from Pro Comp and are sold separately, so add a boot if you want the chrome piston rod protected from dirt and grit.

Is this a gas charged shock?

Yes. It is a gas charged twin tube shock with a nitrogen stabilized body and 10-stage velocity sensitive valving. The nitrogen charge helps keep the body stable during use.

How do I tell if a shock needs replacing?

Look for oil on the body, a bent or pitted rod, bouncing after bumps or uneven tire wear. A worn shock often feels loose at highway speed. Test one at a time, and replace in pairs on the same axle when the damping has faded.
