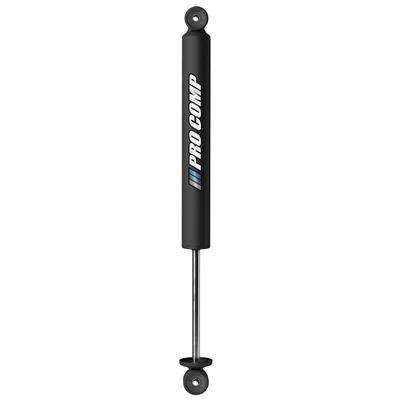

Pro Comp PRO-X Twin Tube Shock Absorber – 921502B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1975–1980 Chevrolet K10 and K20 and GMC K15 and K1500 pickups
  • Also fits 1975–1980 GMC Jimmy and Suburban models
  • 21.6-inch extended length, 13.2-inch collapsed length
  • Loop upper and lower mounts
  • Twin tube design with 10-stage velocity sensitive valving

Description

Overview

The Pro Comp 921502B is a PRO-X twin tube shock absorber for 1975–1980 Chevrolet K10 and K20 pickups and Suburbans, and for GMC K15 and K1500 trucks, including their Suburban versions. It also fits the 1975–1980 GMC Jimmy. It has a 21.6-inch extended length and a 13.2-inch collapsed length, with loop eyes at both ends.

The PRO-X line is built as a general-purpose twin tube design for trucks used mostly on pavement with occasional off-road trips. This version uses 10-stage velocity sensitive valving, a 1-3/8-inch nylon banded piston and a 5/8-inch chrome hardened shaft, all of which Pro Comp presents as suited to ordinary road use with some rougher driving.

The loop-to-loop mounts make this one of the simpler mounting layouts in the PRO-X family. The body is finished in black powder coat, and the gas charge is nitrogen stabilized. The optional shock boot is not part of the shock as sold.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Loop eyes at both ends
  • Black powder-coated finish

Working with older trucks

Older K-series trucks often carry worn bushings and original shocks that have lost much of their damping. Replacing the shock alone can make the ride feel uneven if the mounts are loose, so inspect the frame and axle brackets for rust and play before installing.

Loop eyes depend on a bushing that fits the eye snugly. A bushing that is too loose lets the shock knock, and one that is too tight can bind at full travel. Check the fit on both ends and make sure the bolts are tightened once the truck is back at its normal ride height.

  • Check bushing sleeves before installing
  • Inspect frame and axle brackets for rust
  • Replace shocks in pairs on the same axle

Specifications

Brand Pro Comp Suspension
Part number 921502B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Location Universal
Extended length 21.6 in
Collapsed length 13.2 in
Travel length 8.41 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Loop
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 1975–1980 Chevrolet K10 in the Cheyenne, Custom Deluxe, Scottsdale and Silverado trims and the K10 Suburban in the Custom Deluxe, Scottsdale and Silverado trims, along with the 1975–1980 Chevrolet K20 and K20 Suburban. On the GMC side it fits the 1975–1978 K15 and K15 Suburban, the 1979–1980 K1500, and the 1975–1980 Jimmy.

Chevrolet and GMC K-series trucks from 1981 onward, and the Silverado 1500 entries of later years, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Both mounts are loop eyes, so check the eye diameter against your existing shock before ordering. Compare the 21.6-inch extended and 13.2-inch collapsed lengths with the ride height of your truck.

What’s included

Both ends are loop eyes on this twin tube shock. The boot is a separate optional part.

Not included: the optional boot and any bushings.

Fitment

VehicleYearsTrims
Chevrolet K101975–1980Cheyenne, Custom Deluxe, Scottsdale, Silverado
Chevrolet K10 Suburban1975–1980Custom Deluxe, Scottsdale, Silverado
Chevrolet K201975–1980Cheyenne, Custom Deluxe, Scottsdale, Silverado
Chevrolet K20 Suburban1975–1980Custom Deluxe, Scottsdale, Silverado
GMC Jimmy1975–1980Base, High Sierra, Sierra Classic, Sierra Grande, Street Coupe
GMC K151975–1978Base, High Sierra, Indy Hauler, Sierra Classic, Sierra Grande
GMC K15 Suburban1975–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC K15001979–1980Base, High Sierra, Sierra Classic, Sierra Grande

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 921502B fit a 1978 GMC K15?

Yes. It fits the 1975–1978 GMC K15 and K15 Suburban in several trims, so a 1978 K15 is covered by those years.

Does the 921502B fit a 1985 Chevrolet K10?

No. The Chevrolet K10 entries on the list run from 1975 to 1980, so 1985 models are not covered by this fitment.

What is the travel length of the 921502B?

The travel length is 8.41 inches. The extended length is 21.6 inches and the collapsed length is 13.2 inches, so check these figures against your existing shock.

Can I use this shock with a lift kit?

Possibly, but check the fit first. A lift changes the length the shock must reach, so measure the installed suspension at full droop before ordering. Large lifts may also call for other geometry changes.
