Overview

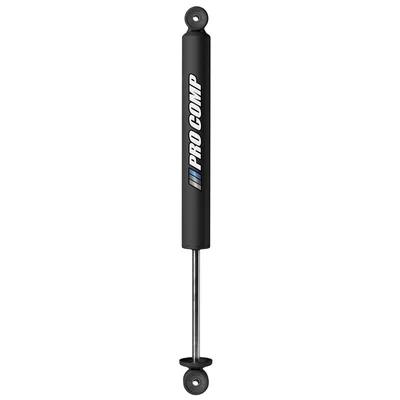

The Pro Comp 926508B is a PRO-X twin tube shock absorber for the 2000–2005 Ford Excursion and the 2000–2005 F-250 and F-350 Super Duty. It has a 27.1-inch extended length, a 16-inch collapsed length and an 11.190-inch travel length.
The PRO-X is a general-purpose twin tube design for trucks and SUVs that see mostly paved roads, with occasional off-road driving. Pro Comp uses 10-stage velocity sensitive valving to handle a range of road conditions, backed by a 1-3/8-inch nylon banded piston and a 5/8-inch chrome hardened shaft.
The shock uses loop eyes at both ends, with a 2.0-inch body in black powder coat. It is nitrogen stabilized, and the optional shock boot is sold separately from the shock, so it is not included.
Key features
- Twin tube design for general-purpose use
- 10-stage velocity sensitive valving
- 1-3/8-inch nylon banded piston
- 5/8-inch chrome hardened shaft
- Loop eyes at both ends
- Black powder-coated finish
Clearance at full droop
Full droop is the point where the wheel hangs fully extended and the shock reaches its longest length. On a heavy-duty truck, the frame, axle and shock eye must all stay clear at that position. A shock that runs out of extension can pull on its mounts, bend the bracket, or put side load on the seal.
Look at how the truck settles when the wheels are off the ground, such as on a ramp or during a trail climb. Sway bar links, brake lines and wiring can all catch if the shock sits too close to them. Keep the old hardware handy for comparison, and re-inspect the mounts after the first few drives.
- Check sway bar links after installation
- Look for rubbing on brake lines at full droop
- Inspect the loop eyes for wear at each service
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 926508B |
| Shock series | PRO-X |
| Shock type | Twin tube, gas charged (nitrogen stabilized) |
| Location | Universal |
| Extended length | 27.1 in |
| Collapsed length | 16 in |
| Travel length | 11.190 in |
| Body diameter | 2.0 in |
| Piston | 1-3/8 in nylon banded |
| Shaft | 5/8 in chrome hardened |
| Upper mount | Loop |
| Lower mount | Loop |
| Finish | Black powder coat |
| Boot | Optional, not included |
Vehicle fitment
Excursion fitment covers the Eddie Bauer, Limited, XLS and XLT trims of the 2000–2005 model years. It also covers the 2000–2005 F-250 and F-350 Super Duty in the Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims.
Excursion and Super Duty models from 2006 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 27.1-inch extended length against the installed suspension, and confirm clearance at full droop. Compare the loop eyes with the existing hardware before fitting.
What’s included
The twin tube shock has loop eyes at both ends. The boot is not included with the shock.
Not included: the optional boot.
