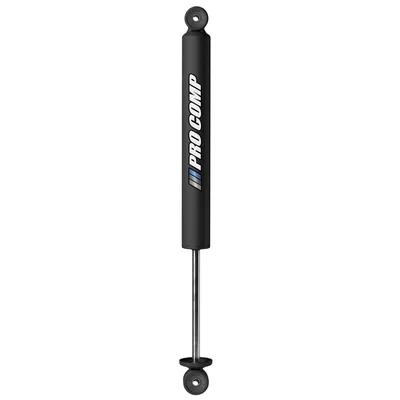

Pro Comp PRO-X Twin Tube Shock Absorber – 918510B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1980–1996 Ford F-150 and 1983–1996 Ford Ranger
  • Also fits the 1993–1995 F-150 Lightning
  • 18.7-inch extended length, 11.5-inch collapsed length
  • 7.06-inch travel
  • Stem upper mount, loop lower mount

Description

Overview

The Pro Comp 918510B is a PRO-X twin tube shock absorber for Ford F-150 pickups from 1980 to 1996, the 1983–1996 Ford Ranger and the 1993–1995 F-150 Lightning. It has an 18.7-inch extended length, an 11.5-inch collapsed length and 7.06 inches of travel.

The PRO-X is a general-purpose twin tube design for trucks that see mostly pavement with some off-road driving. Its 10-stage velocity sensitive valving is meant to handle different road conditions, and the 1-3/8-inch nylon banded piston and 5/8-inch chrome hardened shaft form the main load-bearing parts of the shock.

Mounts are a stem on top and a loop on the bottom, with a 2.0-inch body in black powder coat. It is nitrogen stabilized, and the optional shock boot is not included.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Nitrogen stabilized
  • Black powder-coated finish

Off-road use and travel

Travel is the distance a shock can move between its fully compressed and fully extended positions. On an older F-150 or Ranger used on trails, travel determines how well the wheels follow uneven ground while the shock still controls body movement. A shock with more usable stroke can keep the tires in contact with the ground longer, but it also needs proper mounting geometry to avoid binding.

Before heavy trail use, look at how the truck sits at full droop and full compression. Brake lines, bumpers and fender edges can contact a shock at the limits of its travel, and that contact can damage seals or mounts. Stock bump stops also affect the usable range, so inspect them along with the shock whenever the suspension is changed.

  • Check clearance at full droop before trail use
  • Inspect bump stops for cracking or flattening
  • Look for oil seepage after rough trail runs

Specifications

Brand Pro Comp Suspension
Part number 918510B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Location Universal
Extended length 18.7 in
Collapsed length 11.5 in
Travel length 7.06 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Stem
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

The shock fits the 1980–1996 Ford F-150 in the Base, Custom, Eddie Bauer, Ranger, Lariat, XLT and XL trims, the 1993–1995 F-150 Lightning, and the 1983–1996 Ford Ranger in the Custom, GT, S, Sport, STX, XL and XLT trims.

F-150 and Ranger models from 1997 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The shock has a stem upper mount and a loop lower mount. It is intended for these pickups, whose 18.7-inch extended length should be checked against the installed suspension, along with the 7.06-inch travel, before driving off-road.

What’s included

One twin tube shock with its stem and loop mounts. The optional boot is not included.

Not included: the optional boot and mounting hardware.

Fitment

VehicleYearsTrims
Ford F-1501980–1996Base, Custom, Eddie Bauer, Ranger, Ranger Lariat, Ranger XLT, Special, XL, XLS, XLT, XLT Lariat
Ford F-150 Lightning1993–1995All
Ford Ranger1983–1996Base, Custom, GT, S, S Plus, STX, Splash, Sport, XL, XL Sport, XLS, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 918510B fit a 1993 F-150 Lightning?

Yes. It fits the 1993–1995 F-150 Lightning, so a 1993 model year is covered, along with the 1980–1996 F-150 trucks.

Does the 918510B fit a 1998 Ford F-150?

No. It fits the F-150 from 1980 to 1996, so 1997 and later trucks are not covered. Confirm your vehicle's year, model and trim before ordering.

What is the travel length of the 918510B?

The travel length is 7.06 inches. The extended length is 18.7 inches and the collapsed length is 11.5 inches, which are the shock's own dimensions.

How does travel length affect off-road use?

Travel is the stroke the shock can use between its compressed and extended lengths. On a truck with larger tires or a lift, the shock may reach the end of its stroke sooner, so check clearance at full droop and full compression before heavy trail use.
