Pro Comp PRO-X Twin Tube Shock Absorber – 926505B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear twin tube shock, 27.1 inches extended
  • Fits 2000–2004 Silverado 2500 and Ram 1500, and Sierra 2500
  • 10 stage velocity sensitive valving; black powder coat
  • Part number 926505B; sold individually

Description

Overview

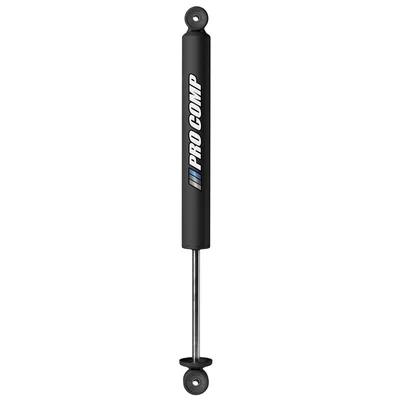

The Pro Comp PRO-X Twin Tube Shock Absorber, part number 926505B, is a rear twin tube shock with a 27.1 inch extended length. It fits the 2000–2004 Chevrolet Silverado 2500, the 2001–2004 Chevrolet Silverado 2500 HD, the 2000–2004 Dodge Ram 1500, the 2000–2004 GMC Sierra 2500 and the 2001–2004 GMC Sierra 2500 HD.

This general purpose twin tube is aimed at vehicles that run mostly on pavement with the occasional off-road trip. It uses 10 stage velocity sensitive valving, which Pro Comp says handles varied road conditions and improves handling on lifted trucks.

The shock has a 5/8 inch chrome hardened piston rod, a 1-3/8 inch nylon banded piston and a 2.0 inch body. Collapsed length is 15.9 inches and travel length is 11.190 inches. The black powder coat finish and nitrogen stabilized charge are standard on the shock.

The PRO-X line is available in extended lengths for lifted trucks, and the 926505B is one of those at 27.1 inches.

Key features

  • 10 stage velocity sensitive valving
  • 5/8 inch chrome hardened piston rod
  • 1-3/8 inch nylon banded piston
  • Nitrogen stabilized
  • Black powder coat finish
  • Designed for extended lengths on lifted trucks

Rear shock wear and boots

Rear shocks on a pickup carry the load of the bed and any cargo, so they work hardest when the truck is loaded. Twin tube designs control compression and rebound through the valving, and a worn valve often shows up as a loose or floaty ride after bumps. Look at the rear shocks when the tires show uneven wear or when the truck pitches more than it used to under braking.

A shock boot helps keep road grit off the chrome rod and seals, and it is worth considering if the truck sees gravel roads, mud or sand. Check the rubber mounts at both ends for cracking. When the old shock is removed, compare its length with the new unit so the rear suspension is not left with a height change or binding at full extension.

  • Check the rod for pitting or scoring
  • Look for oil on the shock body
  • Inspect eyelet bushings for splits

Specifications

Brand Pro Comp Suspension
Part number 926505B
Shock series PRO-X
Shock type Twin tube
Location Rear
Extended length 27.1 in
Collapsed length 15.9 in
Travel length 11.190 in
Body diameter 2.0 in
Mounts Eyelet top and bottom
Finish Black powder coat

Vehicle fitment

It fits the 2000–2004 Chevrolet Silverado 2500 and 2001–2004 Chevrolet Silverado 2500 HD, the 2000–2004 Dodge Ram 1500, and the 2000–2004 GMC Sierra 2500 and 2001–2004 GMC Sierra 2500 HD.

The Silverado 1500, the Ram 2500 and model years outside 2000–2004 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One rear shock absorber. Not included: the optional shock boot, which is sold separately.

Fitment

VehicleYearsTrims
Chevrolet Silverado 25002000–2004Base, LS, LT, WT
Chevrolet Silverado 2500 HD2001–2004Base, LS, LT, WT
Dodge Ram 15002000–2004Laramie, SLT, SRT-10, ST, Sport, WS
GMC Sierra 25002000–2004Base, SL, SLE, SLT, WT
GMC Sierra 2500 HD2001–2004Base, SL, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 926505B fit a 2002 Silverado 2500 HD?

Yes. It fits the 2001–2004 Chevrolet Silverado 2500 HD, so a 2002 model is within that range. Confirm the trim before ordering.

Does it fit a Dodge Ram 2500?

The 926505B covers the Dodge Ram 1500 from 2000 to 2004. Confirm your model before ordering if you drive a Ram 2500.

What is the extended length?

27.1 inches extended and 15.9 inches collapsed, with 11.190 inches of travel. Measure your current rear shock to compare before ordering, and check that the eyelet mounts match the vehicle's attachment points.

Are boots included?

No. The shock is sold individually, and an optional shock boot is sold separately. The boot is an add-on, so plan for it if your setup requires one.

Is a boot needed on a rear shock?

Not always. A boot is most useful on trucks that see mud, sand or gravel, where grit can wear the chrome rod and seals. On paved use a boot is optional, but it can extend the life of the rod surface.
