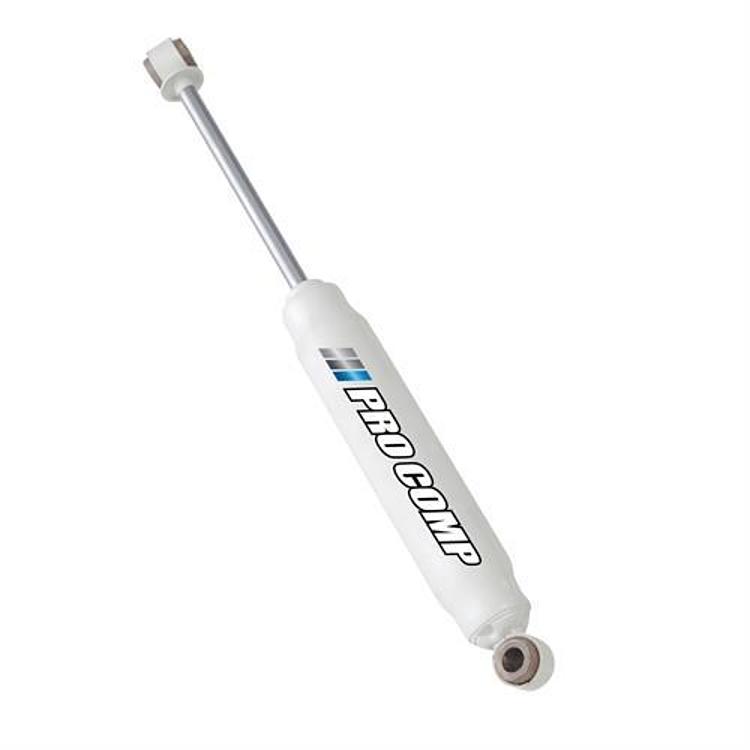

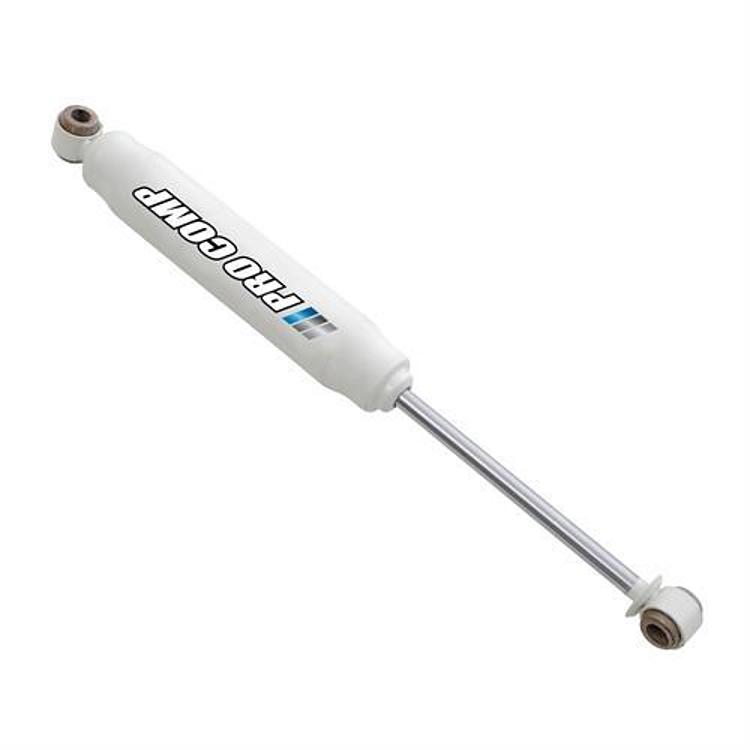

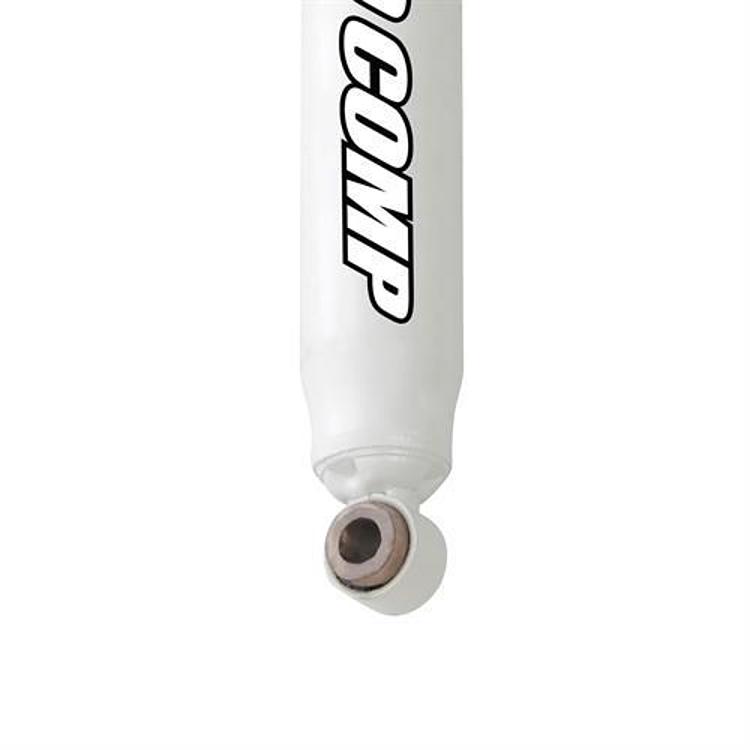

Pro Comp ES3000 Series Shock Absorber – 323509

Pro Comp Suspension

Shop Jeep Wrangler TJ Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp ES3000 rear shock for the 1997-2006 Jeep Wrangler (TJ)
  • Twin tube design with 10-stage velocity sensitive valving
  • Extended length 23.81 inches, collapsed length 14.31 inches, 9.50-inch travel
  • Designed for a 4 inch lift; sold as each, boot not included

Description

Overview

The Pro Comp ES3000 rear shock, part number 323509, is a white twin tube shock made for the 1997–2006 Jeep Wrangler (TJ) across its trims, with a 4 inch lift range.

The ES3000 is a twin tube cellular design with 10-stage velocity sensitive valving that adjusts damping to road conditions. It has a 5/8-inch chrome hardened piston rod with a Teflon rebound stop and double welded shock mounts with loop ends. The extended length is 23.81 inches, the collapsed length is 14.31 inches and the travel length is 9.50 inches.

Key features

  • Twin tube cellular design
  • 10-stage velocity sensitive valving
  • 5/8-inch chrome hardened piston rod
  • Teflon rebound stop
  • Double welded shock mounts
  • Rear position, 4 inch lift range

Rear shocks and lift changes

Rear shocks carry the weight of the rear axle and control its rebound after each compression. On a Jeep Wrangler, the length and travel of the rear shock decide how much room the axle has before the shock bottoms out or runs out of extension. Any lift changes the geometry, so a shock that suited the stock height may feel different after the suspension is raised.

When replacing rear shocks, look at the bushings and eyes at both ends. Worn bushings let the shock knock and can change how the axle moves. Shocks are usually replaced in pairs so both sides respond alike, and a rebound stop that is worn or damaged should be checked as part of the same job.

  • Worn eye bushings or knocking at the ends
  • Oil on the shock body
  • Uneven rear tire wear
  • Bounce after a dip on the trail

Specifications

Brand Pro Comp Suspension
Part number 323509
UPC 614901325096
Series ES3000
Position Rear
Extended length 23.81 inches
Collapsed length 14.31 inches
Travel length 9.50 inches
Upper mount Loop
Lower mount Loop
Shaft 5/8-inch chrome hardened
Hydraulic or gas charged It is a hydraulic shock with a cellular gas design.
Adjustable No
Remote reservoir No
Shock finish White
Boot included No
Lift range 4 inches
Sold as Each

Vehicle fitment

It fits the 1997–2006 Jeep Wrangler (TJ) across its trims.

The fitment data does not include the Wrangler (YJ), the Wrangler (JK) or the Wrangler (JL). Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the extended and collapsed lengths against the shock you are replacing before installing, since a 4 inch lift changes the length a rear shock needs to be.

What’s included

One rear shock. The boot is not included, and shock boots are sold separately.

SKU: EXP323509 Category:

Specification

Shipping weight 5.75 lbs
Package dimensions 25.00 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the ES3000 fit a 2001 Jeep Wrangler TJ?

Yes. The fitment data covers the 1997–2006 Jeep Wrangler (TJ), which includes 2001, so a 2001 TJ falls inside the covered years. Check the year and model of your vehicle before choosing this rear shock.

Is the ES3000 adjustable?

No. The shock is not adjustable and has no remote reservoir. Its 10-stage velocity sensitive valving responds to how fast the shaft moves, so the damping changes with road conditions.

What is the travel length of the ES3000?

The travel length is 9.50 inches, running from a 14.31-inch collapsed length to a 23.81-inch extended length. It is designed for a 4 inch lift range.

Does a rear shock need upgrading after a lift?

Often it does. A lift changes the length the shock must cover, so compare the lengths with the old shock before buying. Check brake lines and driveline clearance at full travel after installing, since the axle moves further.
