PRO COMP 6.0 INCH RADIUS ARM KIT WITH FRONT & REAR ES9000 SHOCKS K2197B

Pro Comp Suspension

Shop Ram 2500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

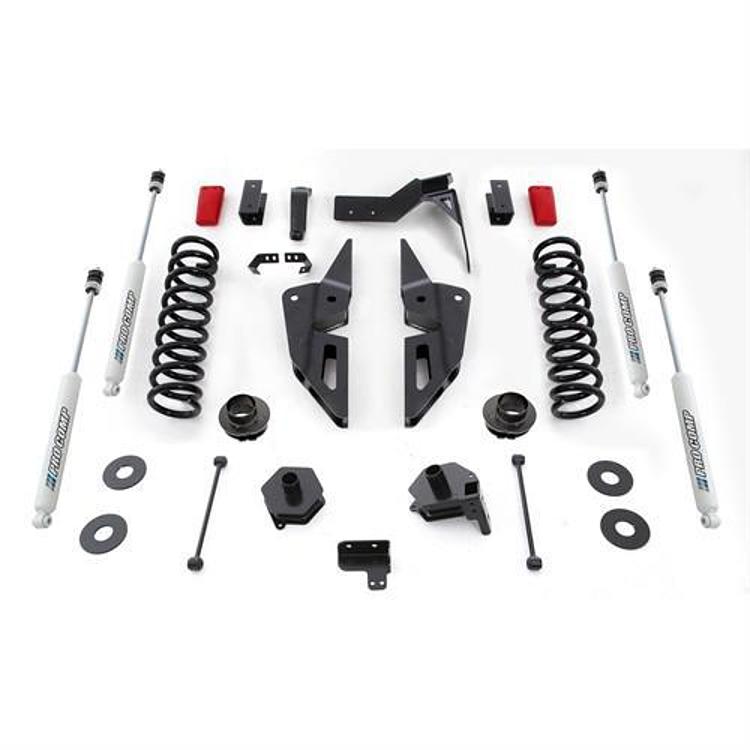

  • Pro Comp 6-inch radius arm kit with front and rear ES9000 shocks, part number K2197B
  • Fits the 2014 to 2018 Ram 2500
  • Front coil springs with radius arm drop brackets
  • Rear coil spring spacers and a drop track bar bracket
  • Black finish

Description

Overview

The Pro Comp K2197B is a 6-inch radius arm kit with front and rear ES9000 shocks for the 2014 to 2018 Ram 2500. The front uses coil springs with radius arm drop brackets, and the rear uses coil spring spacers. The kit includes a drop track bar bracket, and its finish is black.

The kit is a direct fit for the 2014 to 2018 Ram 2500. Pro Comp builds its suspension kits around cast and CNC-machined knuckles and laser-cut, CNC-formed cross members.

The rear coil spring spacers raise the rear axle to match the front, which helps the truck sit level under load. Owners who want to keep the factory rear coil springs in place will find spacers a simpler change than replacing the rear springs, and the kit’s ES9000 shocks are fitted at both ends.

Key features

  • 6-inch lift
  • Front and rear ES9000 shocks
  • Front coil springs with radius arm drop brackets
  • Rear coil spring spacers
  • Drop track bar bracket
  • Black finish

Before you buy

A radius arm drop changes how the front axle is located, so the arms, coil springs and brackets work together as one system. When comparing setups for a Ram 2500 at this ride height, look at how the front and rear lift levels match. A mismatch can leave the truck sitting uneven under load. Rear coil spring spacers are the simpler change when the factory rear coils stay in place, but they still move the rear axle and affect driveline angles.

Plan for the parts that often change with a lift like this. Track bar geometry, brake hose length and sway bar links may need checking, and worn bushings are often replaced during the same job. Before installation, inspect the shocks, ball joints and control arm bushings, and look for leaking seals, cracked rubber and uneven tire wear. After the first few drives, recheck the bracket and shock bolts and keep an eye on alignment.

Specifications

Brand Pro Comp Suspension
Part number K2197B
UPC 700008182671
Type Suspension lift kit with shocks
Lift height 6 inches
Front shocks ES9000
Rear shocks ES9000
Finish Black
Fitment Direct fit

Vehicle fitment

The kit fits the 2014 to 2018 Ram 2500 in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman trims.

The Ram 3500 is not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The radius arm drop changes the front suspension geometry, so have the alignment checked after installation. Check the driveline angles on the rear as well, because the rear spacers raise the axle.

SKU: EXPK2197B Category:

Specification

Shipping weight 219.30 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ram 25002014–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2197B fit a 2015 Ram 2500?

Yes. The kit fits the 2014 to 2018 Ram 2500, which includes 2015 models in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman trims.

Does the K2197B include shocks?

Yes. ES9000 shocks are included at the front and rear, along with the drop track bar bracket. Plan on an alignment after installation.

Is the K2197B a Ram 3500 kit?

No. The kit fits only the Ram 2500 within this range. The Ram 3500 is not covered, and Ram 3500 kits use separate part numbers with their own fitment. Confirm fit for your vehicle's year, model and trim before ordering.

How often should radius arm bushings be inspected?

Inspect them at every tire rotation or oil change, and sooner after off-road use. Look for cracked rubber, torn sleeves and play in the joint, plus clunking over bumps. Worn bushings change alignment, so replace them before setting a new alignment.
