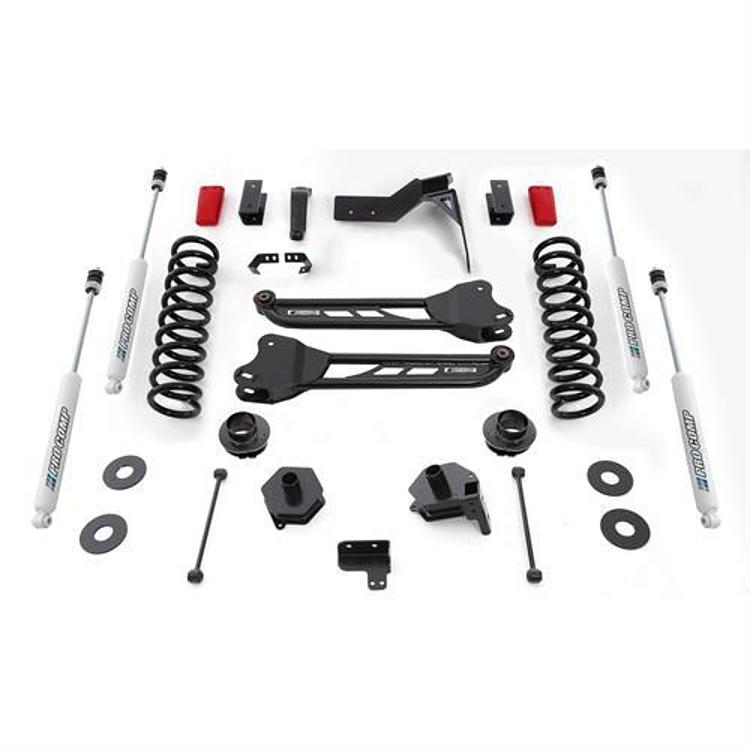

PRO COMP 6.0 INCH STAGE 2 RADIUS ARM WITH FRONT & REAR ES9000 SHOCKS K2199B

Pro Comp Suspension

Shop Ram 2500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 6-inch stage 2 radius arm kit with front and rear ES9000 shocks, part number K2199B
  • Fits the 2014 to 2018 Ram 2500 trucks
  • Front coil springs with replacement radius arms
  • Rear coil spring spacers and a drop track bar bracket
  • Black finish

Description

Overview

The Pro Comp K2199B is a 6-inch stage 2 radius arm kit with front and rear ES9000 shocks for the 2014 to 2018 Ram 2500. The stage 2 version uses replacement radius arms at the front, with coil springs, and the rear uses coil spring spacers. The kit includes a drop track bar bracket and has a black finish.

The kit is a direct fit for the 2014 to 2018 Ram 2500. It is designed to keep steering geometry in line at the new ride height.

Stage 2 kits replace the factory radius arms, which gives the front suspension a new set of arms at the higher ride height. The rear coil spring spacers and the drop track bar bracket complete the lift, and the ES9000 shocks are fitted front and rear. Pair the kit with a front alignment, since the arm geometry changes at the new height.

Key features

  • 6-inch lift
  • Replacement radius arms at the front
  • Front and rear ES9000 shocks
  • Rear coil spring spacers
  • Drop track bar bracket
  • Black finish

Stage 2 setup notes

Replacing the factory radius arms makes the front suspension a more complete system than a drop alone. The arms set caster and pinion angle, so the new geometry should be measured rather than guessed. Ask for an alignment that includes caster and toe, and make sure the steering wheel is centered before the first drive. Steering stabilizers and tie rod ends are worth inspecting while the front end is apart.

Stage 2 setups also change the way the front end moves over bumps, so pay attention to steering feel for the first several drives. Worn bushings, loose fasteners and play in the joints show up quickly on a truck at this height. Pair the arms with fresh bushings if the old ones are worn, since new arms on old joints can hide problems. Recheck bolts after the first trail runs and note any clunks or wandering.

  • Check caster and toe after installation
  • Inspect steering stabilizer and tie rod ends
  • Recheck fasteners after the first trail runs

Specifications

Brand Pro Comp Suspension
Part number K2199B
UPC 700008182691
Type Stage 2 radius arm suspension kit
Lift height 6 inches
Front shocks ES9000
Rear shocks ES9000
Finish Black
Fitment Direct fit

Vehicle fitment

Trims covered on the 2014 to 2018 Ram 2500 are Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman.

The Ram 3500 and the K2197B radius arm kit are separate. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacing the front radius arms changes the suspension geometry, so have the front alignment and steering set after installation.

SKU: EXPK2199B Category:

Specification

Shipping weight 239.90 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ram 25002014–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2199B fit a 2017 Ram 2500?

Yes. The kit fits the 2014 to 2018 Ram 2500, and 2017 models in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman trims are included.

What is the difference between the K2199B and the K2197B?

Both are 6-inch kits with ES9000 shocks for the Ram 2500. The K2199B is the stage 2 kit with replacement radius arms, while the K2197B uses a radius arm drop at the front.

Does the K2199B include shocks?

Yes. ES9000 shocks are included at the front and rear, and the kit also includes rear coil spring spacers and a drop track bar bracket.

What maintenance does a stage 2 radius arm setup need?

Check the arm bushings and ball joints at regular intervals, especially after trail use. Retighten fasteners after the first drives, and recheck front alignment whenever the arms or steering parts are changed. Replace torn boots or worn bushings promptly to keep steering tight.
