Pro Comp 6″ Lift Kit with Rear Shock Extentions – K1175E

Pro Comp Suspension

Shop Chevrolet Silverado 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 lift with rear shock extensions for 2019–2021 Chevrolet Silverado 1500 and GMC Sierra 1500
  • Fits the 2022 Sierra 1500 Limited
  • Performance rear shocks and block and U-bolt rear lift; lift height range 6–7 inches
  • Not for trucks with factory base suspension or 2-inch factory lifts

Description

Overview

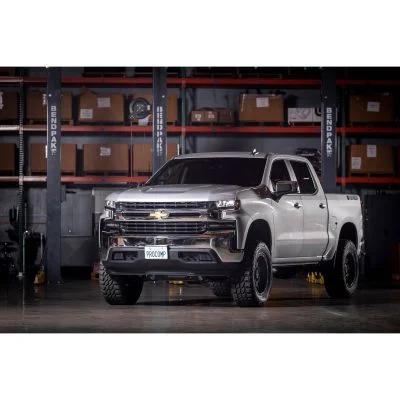

The Pro Comp K1175E is a 6-inch stage 1 lift kit with rear shock extensions for 2019–2021 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks, and for the 2022 GMC Sierra 1500 Limited. The lift height range is 6 to 7 inches, and the rear shocks are performance units from the Performance Race Series.

The 2019 Silverado and Sierra use a new chassis with extended steering knuckles that keep factory steering geometry. The front lower crossmembers and differential skid plate are 3/16-inch steel plate, and upper strut spacers keep the factory-tuned struts in place. The kit is designed for 20-inch or larger wheels and 35-inch tires for all-terrain use.

Key features

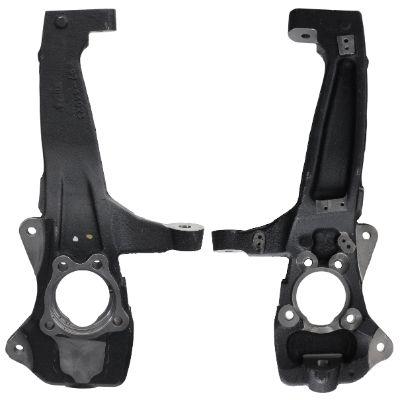

  • Extended steering knuckles that keep factory steering geometry

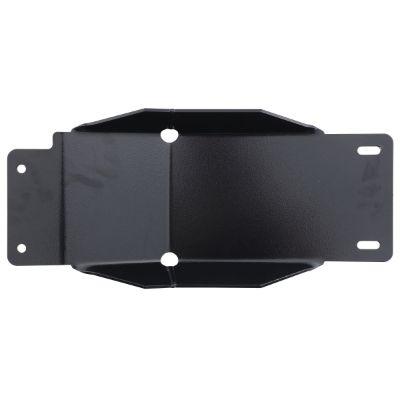

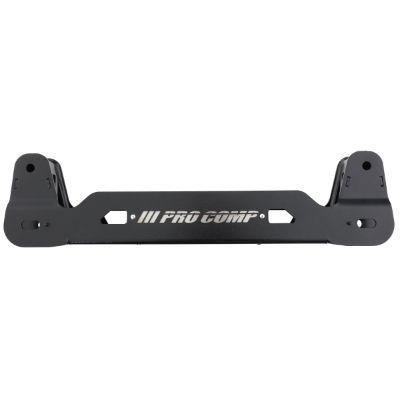

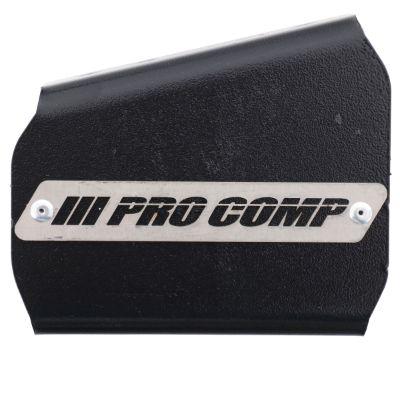

  • Front lower crossmembers and a differential skid plate of 3/16-inch steel plate

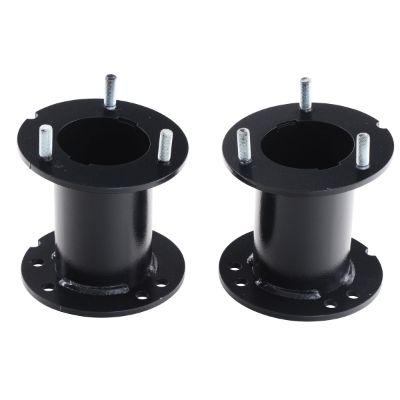

  • Upper strut spacers that keep the factory-tuned struts

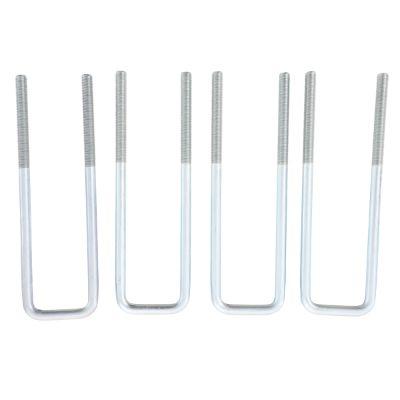

  • Rear lift blocks and U-bolts that Pro Comp says give a level stance
  • Built for 20-inch or larger wheels and 35-inch tires

Clearance and rub checks

Larger tires leave less room at the fenders, the inner wheel well and the steering stops. A rub can show up on turns, during suspension compression or when the truck is loaded. Checking clearance at full lock and with the suspension cycled through its travel helps find trouble before it causes damage.

Shock extensions and performance rear shocks change how the rear sits at full extension and compression. Rub points near the frame, the leaf spring or the shock body should be inspected after installation. Trimming plastic liners or relocating a rubbing wire are common fixes when clearance is tight.

  • Test full lock with the wheels fitted
  • Inspect fender liners and inner wheel wells
  • Check the rear shock bodies at full extension
  • Look for rub marks on the frame and brake lines

Specifications

Brand Pro Comp Suspension
Part number K1175E
Suspension type Lift kit, stage 1
Lift height 6 inches, listed range 6–7 inches
Rear shocks Performance shocks, Performance Race Series
Rear lift component Block and U-bolt
Skid plate and crossmembers 3/16-inch steel plate
Wheel and tire size 20-inch or larger wheels, 35-inch tires

Vehicle fitment

It fits the 2019–2021 Chevrolet Silverado 1500 in the Custom, LT, LTZ, RST, SSV and WT versions, the 2019–2021 GMC Sierra 1500 in the Base, Elevation, SLE and SLT versions, and the 2022 GMC Sierra 1500 Limited.

The kit is designed for 2019 GMC Denali trucks with Adaptive Ride Control. It should not be used on trucks with factory base suspension packages, Chevrolet Custom or LT Trail Boss models with a 2-inch factory lift, or GMC AT4 trucks with a 2-inch factory lift. Match the year, model and trim on your truck before buying.

Installation notes

The kit changes the front end through its steering knuckles and crossmembers, so have the alignment and driveline angles checked after installation.

What’s included

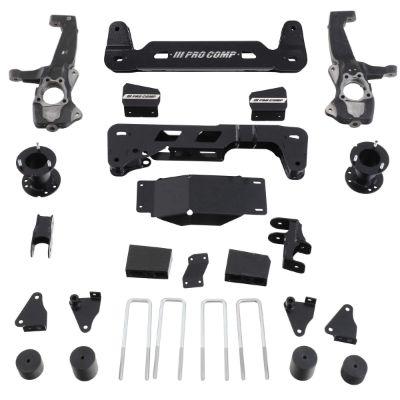

Extended steering knuckles, front lower crossmembers, differential skid plate, upper strut spacers, rear lift blocks, U-bolts and the rear shock extensions with performance shocks.

SKU: EXPK1175E Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002019–2021Custom, LT, LTZ, RST, SSV, WT
GMC Sierra 15002019–2021Base, Elevation, SLE, SLT
GMC Sierra 1500 Limited2022AT4, Denali, Elevation, Pro, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K1175E fit a 2020 Silverado 1500 LT?

Yes. The 2019–2021 Chevrolet Silverado 1500 is in the listed fitment, and the LT is one of the versions named. Compare the model year on your truck with the list above.

Can the K1175E go on a truck with a factory base suspension?

No. Pro Comp says not to use the kit on vehicles equipped with factory base suspension packages, so check the suspension package on your truck before ordering.

What tires does the K1175E suit?

It suits 20-inch or larger wheels and 35-inch tires for all-terrain use. The lift height range is 6 to 7 inches.

How can I tell if the shocks on a lifted truck need replacing?

Look for bottoming out on rough roads, a bouncy ride, oil on the shock body, or uneven tire wear across an axle. A simple bounce test and a visual check for leaks give a quick first assessment.
