Pro Comp 6 Inch Lift Kit with ES3000 Shocks – K4022B

Pro Comp Suspension

Shop Ford Excursion Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 coil spring lift with radius arm brackets for 2000–2004 Ford Excursion
  • Front radius arm brackets, sway bar spacers and bump stop extensions
  • Rear block and U-bolt kit with add-a-leafs
  • ES9000 front and rear shocks listed; pitman arm sold separately

Description

Overview

The Pro Comp K4022B is a 6-inch stage 1 coil spring lift for the 2000–2004 Ford Excursion in the Eddie Bauer, Limited, XLS and XLT trims. The front uses coil springs with radius arm brackets, and the rear uses a block and U-bolt kit with add-a-leafs.

Sway bar spacers and bump stop extensions are included at the front, and ES9000 shocks are listed at both ends. The pitman arm is sold separately. The product name gives ES3000 shocks, so the shock model should be confirmed before ordering.

Key features

  • 6-inch stage 1 lift
  • Front coil springs with radius arm brackets
  • Front sway bar spacers and bump stop extensions
  • Rear block, U-bolt kit and add-a-leafs
  • ES9000 front and rear shocks

Rear block and U-bolt setup

A block and U-bolt rear kit with add-a-leafs raises the rear of the truck and changes how the leaf pack carries load. Because the rear height changes, the driveline angles and the position of the rear axle should be checked after the work is done.

Radius arm brackets at the front change how the axle is located and can alter caster, so the alignment should be set after installation. The pitman arm is sold separately, and it should be fitted for steering correction at this height. Plan that purchase with the lift so the steering can be centered at the end of the job.

  • Check driveline angles after the rear is raised
  • Set the alignment once the front is installed
  • Confirm the shock model before installation
  • Center the steering after the pitman arm is fitted

Specifications

Brand Pro Comp Suspension
Part number K4022B
UPC 614901124538
Lift 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Coil spring kit
Front lift Coil springs with radius arm brackets
Rear lift Block, U-bolts and add-a-leaf
Front shocks ES9000
Rear shocks ES9000
Pitman arm Sold separately

Vehicle fitment

It fits 2000–2004 Ford Excursion models in the Eddie Bauer, Limited, XLS and XLT trims. Super Duty trucks and Excursion models from other years are outside this kit’s fit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 6-inch coil spring lift with radius arm brackets changes the front alignment and caster, so set the alignment after installation. The pitman arm is sold separately and should be fitted for steering correction at this height.

What’s included

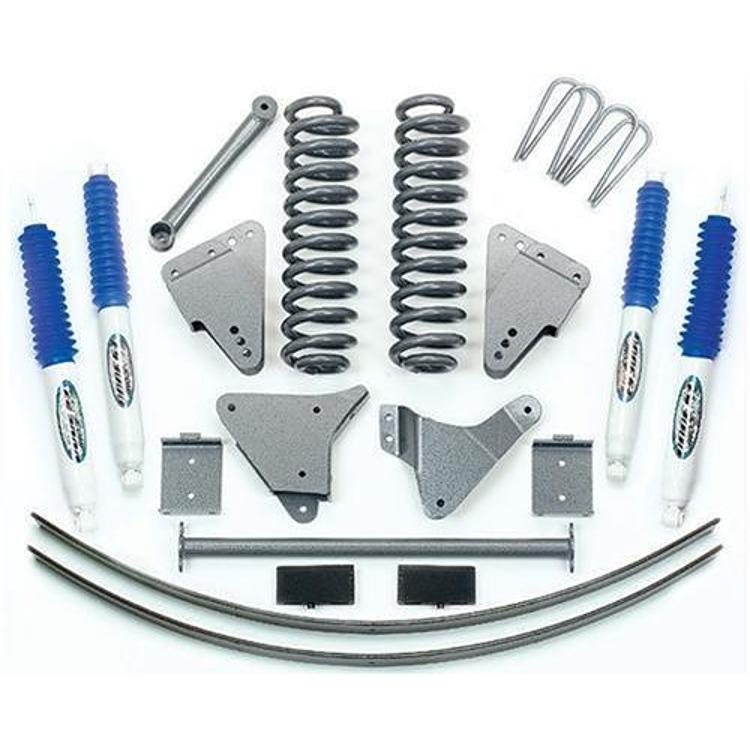

The kit includes front coil springs, radius arm brackets, sway bar spacers, bump stop extensions, the rear block and U-bolt kit with add-a-leafs, and ES9000 front and rear shocks.

SKU: EXPK4022B Category:

Specification

Shipping weight 308.56 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford Excursion2000–2004Eddie Bauer, Limited, XLS, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4022B fit a 2003 Ford Excursion?

Yes. It fits 2000–2004 Ford Excursion models, which includes 2003. Make sure your trim is one of the Eddie Bauer, Limited, XLS or XLT trims before purchase.

Is the pitman arm included with the K4022B?

No. The pitman arm is sold separately, so it must be bought as an extra for steering correction. Plan on buying it along with the lift.

Which shocks come with the K4022B?

ES9000 shocks are fitted at both the front and the rear, and the shock model should be confirmed before installation.

Is a pitman arm needed with this Excursion lift?

A pitman arm is often used at this height to correct steering, and this kit does not include one. Check steering centering after installation and look for bind or drift. Plan the purchase at the same time as the lift.
