Pro Comp 6 Inch Stage II Lift Kit with Pro Runner Shocks – K2065BP

Pro Comp Suspension

Shop Dodge Ram 3500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch coil spring and short arm lift with Pro Runner front shocks
  • Pitman arm steering correction and front sway bar links
  • Rear block and U-bolt kit
  • Fits 2003-2005 Dodge Ram 2500 and 3500

Description

Overview

The Pro Comp 6 Inch Stage II Lift Kit with Pro Runner Shocks, part number K2065BP, is a 6-inch stage 1 lift for the 2003-2005 Dodge Ram 2500 and 3500. It is a direct fit with a lift height range of 5 to 6.99 inches.

The front uses coil springs with upper and lower control arms, and the suspension is a coil spring and short arm design. The steering correction is a pitman arm. The rear uses lift blocks and U-bolts, and Pro Runner front shocks are included.

Key features

  • 6-inch lift
  • Coil springs with upper and lower control arms
  • Coil spring and short arm suspension type
  • Pitman arm steering correction
  • Front sway bar links and bump stop extensions
  • Brake line extension brackets
  • Pro Runner front shocks, included

Coil spring and short arm setup

A coil spring and short arm front end replaces the factory front setup with coil springs mounted to the upper and lower control arms. The short arms change the geometry of the front wheels as the suspension moves, which affects bump steer and camber. A pitman arm steering correction is paired with this design to keep the steering linkage working with the new geometry.

The rear block and U-bolt kit raises the leaf springs but keeps the axle location close to stock. Retorque the U-bolts after the first drives, and inspect the brake lines and hoses for stretch. Pro Runner front shocks work with the coil springs, so check the shock mounts and bushings at each service.

  • Retorque U-bolts after the first drives
  • Check brake lines and hoses for stretch
  • Inspect control arm bushings at each service
  • Confirm steering and alignment after the work

Specifications

Brand Pro Comp Suspension
Part number K2065BP
UPC 70000637816
Lift height 6 inches
Lift height range 5 to 6.99 inches
Suspension type Coil spring and short arm
Steering correction Pitman arm
Rear lift Block and U-bolt kit
Front shocks Pro Runner
Shocks included Yes
Fitment Direct fit

Vehicle fitment

It is a direct fit for the 2003-2005 Dodge Ram 2500 (Laramie, SLT and ST) and the 2003-2005 Dodge Ram 3500 (Laramie, SLT and ST).

Ram 1500 trucks and the 2006-2008 Ram 2500 and 3500 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The coil spring front end and pitman arm correction change steering and suspension geometry, so have the steering and alignment checked after installation.

What’s included

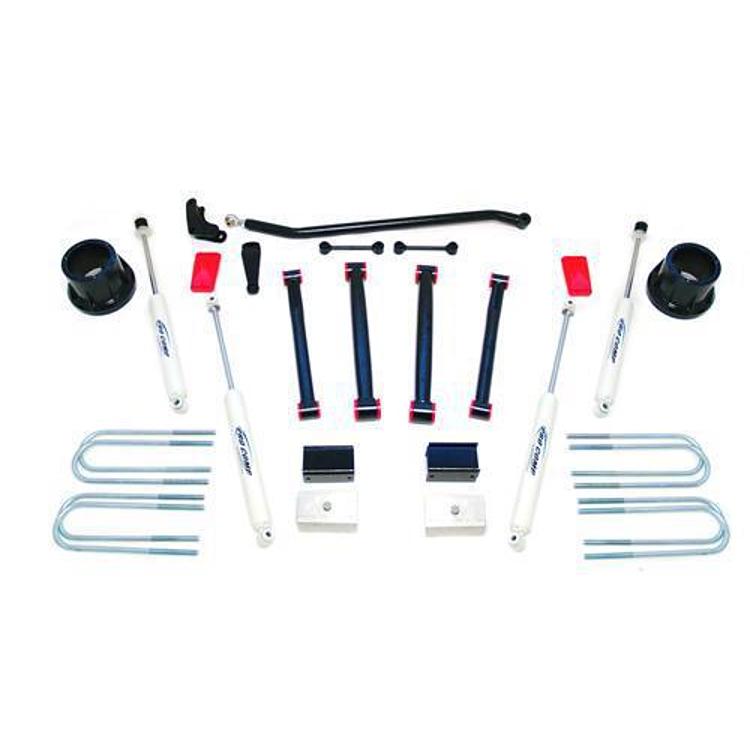

The kit includes front coil springs, upper and lower control arm components, front sway bar links, bump stop extensions, a pitman arm steering correction, brake line extension brackets, a rear block and U-bolt kit, and Pro Runner front shocks.

SKU: EXPK2065BP Category:

Specification

Shipping weight 208.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Dodge Ram 25002003–2005Laramie, SLT, ST
Dodge Ram 35002003–2005Laramie, SLT, ST

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K2065BP fit a 2004 Dodge Ram 3500?

Yes. The 2003-2005 Ram 3500 is covered, and 2004 falls within that range. The covered versions are Laramie, SLT and ST.

Is the K2065BP a stage 1 or stage 2 kit?

It is a 6-inch stage 1 lift, and the lift height is 6 inches. The stage 1 setup is the one this kit is built for, so confirm the stage matches your parts before installation.

Does the K2065BP fit a 2007 Dodge Ram 2500?

No. The Ram 2500 is covered for 2003-2005 only, so a 2007 model is not included. Confirm fit for your vehicle's year, model and trim before ordering.

Does a coil spring lift need a new steering box?

Not usually. A pitman arm correction is the steering change for this kind of kit, and the steering box itself stays in place. Check the steering linkage and alignment after installation, and look for play in the tie rod ends.
