Overview
The K4177M is a 6-inch stage 1 suspension lift with PRO-M front and rear shocks for the 2011–2016 Ford F-250 Super Duty. The lift height range is 6 to 7 inches, and the shocks come with the kit.
The rear is raised with block and U-bolt parts with add-a-leaf hardware in a block/spacer layout. Laser cut brackets and a drop pitman arm are built into the system to keep suspension and steering geometry in place. It is a direct fit for the King Ranch, Lariat, Platinum, XL and XLT versions.
Key features
- Laser cut brackets for suspension geometry
- Drop pitman arm for steering geometry
- Specific rate coil springs that Pro Comp says increase ride height and improve ride quality

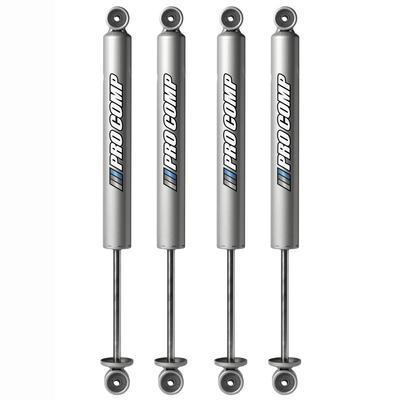

- PRO-M front and rear shocks, included
- Block and U-bolt rear lift with add-a-leaf hardware
Coil springs and ride height
Coil springs carry the weight of the front end, and a lift kit with heavier springs raises the ride height while keeping the truck level under load. Spring rate also affects how the truck handles bumps and cornering, so the new springs should feel firmer than stock. Before choosing a spring, consider the load the truck carries most often, since that drives the right setup.
Shock length and bump stop position should be reviewed with the new springs, because the suspension now moves through a different range. Check the springs for seating and the shocks for leaks after the first few drives, and listen for a rubbing sound over bumps. Replace worn leaf or coil parts together rather than one at a time, so the ride stays balanced.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4177M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-M |
| Rear shocks | PRO-M, included |
| Rear lift method | Block/spacer with block and U-bolt and add-a-leaf |
| Brackets and steering | Laser cut brackets and drop pitman arm |
| Shocks included | Yes |
Vehicle fitment
It fits the 2011–2016 Ford F-250 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT versions.
The system is designed for 2011 and newer Super Duty F-250 trucks, and its coverage ends in 2016. The F-350 Super Duty and the F-250 from 2010 and older fall outside this fit. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The rear is raised with blocks, U-bolts and add-a-leaf parts, and the coil springs raise the ride height, so check the driveline angles and the alignment after the kit is installed.

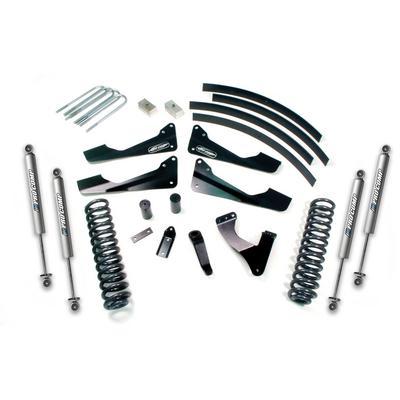

What’s included
PRO-M front and rear shocks, the block and U-bolt rear lift components with add-a-leaf hardware, the laser cut brackets, and the drop pitman arm.
