Pro Comp 3 Inch Lift Kit with ES3000 Shocks – K2051B

Pro Comp Suspension

Shop Dodge Ram 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3-inch front and rear lift with coil spring spacers and block kit
  • ES3000 front and rear shocks
  • Fits 1994-2001 Dodge Ram 1500
  • Maximum tire size 33×12.50 (listed)
  • Part number K2051B

Description

Overview

The Pro Comp 3 Inch Lift Kit with ES3000 Shocks, part number K2051B, is a 3-inch lift for the 1994-2001 Dodge Ram 1500. The front lift uses metal coil spring spacers and bump stops, and the rear uses a lift block and U-bolt kit. The kit includes ES3000 shocks at the front and rear.

Steering correction is not needed, so the kit does not include a steering arm or pitman arm change. The maximum tire size is 33×12.50.

Key features

  • 3-inch lift height
  • Metal coil spring spacers and bump stops at the front
  • Lift block and U-bolt kit at the rear, with add-a-leaf components
  • ES3000 shocks at the front and rear
  • Steering correction not needed

Installing a coil spacer lift

Coil spacers raise the front by adding height above the factory spring, so the existing springs and bump stops carry the same job at a higher ride height. This keeps the setup simple, but it also means the spring seat and upper mount take extra load. Check the spacers and upper hardware for wear before installation, and torque fasteners to the value each one requires.

Rear block and U-bolt kits work differently. They raise the axle, which changes pinion angle and brake hose length. Leaf springs also need their U-bolts re-torqued after the first drives. Shock length matters at both ends, since a raised truck can run shocks closer to their travel limits.

  • Inspect upper strut mounts and spring seats before installing spacers
  • Check brake hose length after the rear block goes in
  • Re-torque U-bolts after the first few drives
  • Confirm driveline angles after the rear lift

Specifications

Brand Pro Comp Suspension
Part number K2051B
UPC 614901122718
Lift height 3 inches
Lift height range 3 to 4.99 inches
Front lift Metal coil spring spacers and bump stops
Rear lift Block, U-bolt and add-a-leaf
Shocks ES3000, front and rear (shock boots not included)
Maximum tire size 33×12.50
Fitment Direct fit

Vehicle fitment

It fits the 1994-2001 Dodge Ram 1500 across its trim levels.

Ram 2500 and 3500 trucks and the Ram 1500 from other years are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Shock boots are not included, so check whether your shock design calls for them. Check the driveline angles after installing the rear block and U-bolts.

What’s included

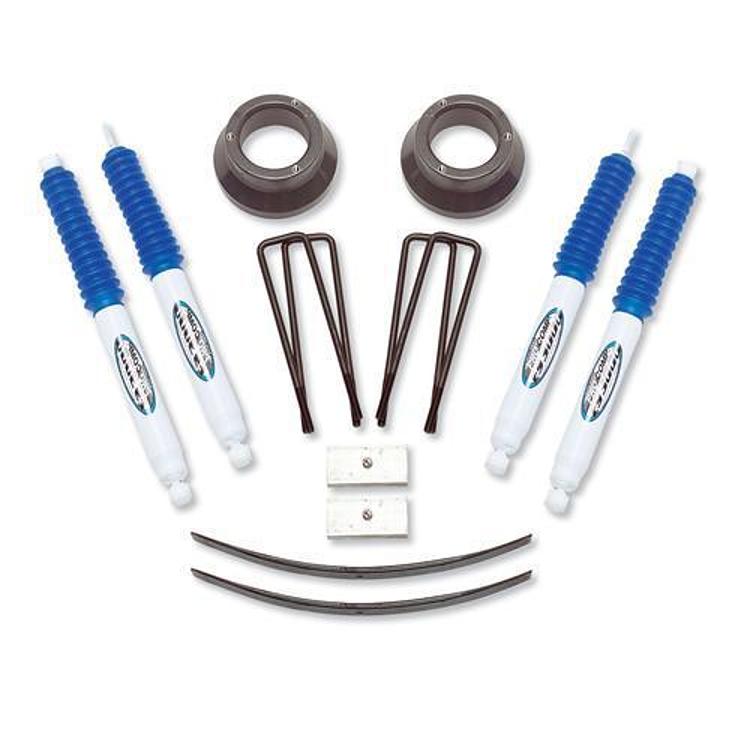

The kit includes metal coil spring spacers and bump stops for the front, a rear block and U-bolt kit with add-a-leaf components, and ES3000 shocks front and rear. The shock boots are not included.

SKU: EXPK2051B Category:

Specification

Shipping weight 64.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Dodge Ram 15001994–2001Base, LT, Laramie, ST, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K2051B fit a 1998 Dodge Ram 1500?

Yes. The kit fits the 1994-2001 Dodge Ram 1500, and 1998 falls within that range. The fit covers the Ram 1500 across its trim levels.

Does the K2051B need a steering correction?

No. Pro Comp lists steering correction as not needed for this kit. The package therefore does not include a steering arm or a pitman arm change.

Are shock boots included with the K2051B?

No. Shock boots are not included with the kit, so check whether your shock design needs them before installing. The shocks themselves are ES3000 units at the front and rear.

What is the largest tire the K2051B supports?

The maximum tire size for this kit is 33x12.50. Confirm tire clearance for your truck before ordering or installing larger tires.

How do I know if the shocks need replacing after a lift?

Look for leaks, worn bushings and bouncing after bumps. Shocks that were fine before a lift can run out of travel with a raised ride, so check their length and mounting once installed.
