Pro Comp 4″ Stage I Lift Kit with PRO-X Shocks – K1011T

Pro Comp Suspension

Shop GMC Jimmy Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1975 to 1986 Chevrolet K10 and K5 Blazer, and GMC K15 and K1500 models
  • 4-inch stage 1 lift with ES3000 front and rear shocks
  • 33-inch tire size
  • Lift height range of 4 to 5.5 inches

Description

Overview

The Pro Comp 4-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK1011T (kit K1011T), is a stage 1 suspension lift for 1975 to 1986 Chevrolet K10 and K5 Blazer trucks and GMC K15 and K1500 models. It fits the Chevrolet K10 and K10 Suburban, the K5 Blazer, the GMC Jimmy, the GMC K15 and K15 Suburban, and the GMC K1500 and K1500 Suburban from 1979 to 1986.

The specifications list a 4-inch stage 1 lift with a range of 4 to 5.5 inches and a tire size of 33 inches. Rear lift comes from a block or spacer paired with a block and U-bolt component. ES3000 shocks are listed at the front and the rear, and shocks are included with the kit.

Key features

  • 4-inch stage 1 suspension lift
  • ES3000 front and rear shocks, included
  • Block or spacer rear lift
  • Tire size of 33 inches
  • Lift height range of 4 to 5.5 inches

Rear lift and tire height

Older GM trucks from this era usually have a leaf spring rear, and a block lift changes the spring pad angle. That change moves the driveline angle and the pinion position, so vibration after installation is a sign to recheck the setup. Old rubber bushings and worn shackles should be inspected while the truck is apart.

Tire height affects speedometer reading, gearing feel and brake clearance. Heavier tires can also add load on the ball joints and the steering box. Many owners recheck the front end and tie rods, because the lift shifts the geometry more than a stock setup does.

Frame condition matters on these trucks too. Rust around the spring hangers and shock mounts is worth inspecting before the install, since new hardware will not solve a weak mounting point.

  • Check driveline angle after the first drives
  • Inspect shackles and bushings for wear
  • Verify brake hose length at full droop
  • Look for rust at spring hangers and shock mounts

Specifications

Brand Pro Comp Suspension
Part number EXPK1011T
Kit code K1011T
Suspension type Lift kit, stage 1
Lift height 4 inches stage 1; range 4 to 5.5 inches
Tire size 33 inches
Rear lift method Block or spacer
Rear lift component Block and U-bolt
Shocks included Yes
Front shocks ES3000
Rear shocks ES3000
Fit type Direct fit

Vehicle fitment

It fits the 1977 to 1986 Chevrolet K10 and K10 Suburban, the 1977 to 1986 Chevrolet K5 Blazer, the 1977 to 1986 GMC Jimmy, the 1977 to 1978 GMC K15, the 1975 to 1978 GMC K15 Suburban, and the 1979 to 1986 GMC K1500 and K1500 Suburban, across the Base, Custom, Deluxe, High Sierra, Sierra Classic and Silverado versions.

The list does not include the 1975 and 1976 Chevrolet K10 or 1987 and later trucks. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rear block and U-bolt setup changes the rear height, so measure front and rear after installation and have the alignment checked.

What’s included

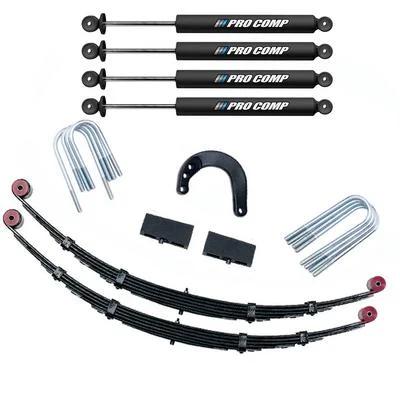

The 4-inch stage 1 lift kit with ES3000 front and rear shocks.

SKU: EXPK1011T Categories: ,

Fitment

VehicleYearsTrims
Chevrolet K101977–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet K10 Suburban1977–1986Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet K5 Blazer1977–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
GMC Jimmy1977–1986Base, High Sierra, Sierra Classic, Sierra Grande, Street Coupe
GMC K151977–1978Base, High Sierra, Indy Hauler, Sierra Classic, Sierra Grande
GMC K15 Suburban1975–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC K15001979–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC K1500 Suburban1979–1986Base, High Sierra, Sierra Classic, Sierra Grande

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K1011T fit a 1984 Chevrolet K10 Suburban?

Yes. It fits 1977 to 1986 Chevrolet K10 Suburban models, and 1984 falls within that range. Match the body style and series on your truck before ordering.

Does it fit a 1990 GMC K1500?

No. The GMC K1500 versions fit 1979 to 1986 only, so a 1990 truck is outside the fit range. Confirm your vehicle's year, model and trim before ordering.

What is the tire size?

Pro Comp lists 33 inches as the tire size for this kit, with ES3000 shocks at the front and the rear. Compare the trim on your truck with the list before ordering.

How do I know if the shocks need replacing after a lift?

Look for fluid leaks, a bouncy ride, or uneven wear on the shock bodies and mounts. Because the shocks are part of the lift, damaged units should be replaced in pairs so both sides of the axle react the same way.
