Overview
The Pro Comp K4152M is a 6-inch stage 2 lift kit with PRO-M front and rear shocks for the 2008–2010 Ford F-250 Super Duty and F-350 Super Duty. The lift height range runs from 6 to 7 inches, and the shocks are included.
The rear uses a block/spacer method with block and U-bolt components and add-a-leaf hardware. The kit fits the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions of both Super Duty models.
Key features
- 6-inch stage 2 lift for the 2008–2010 Super Duty

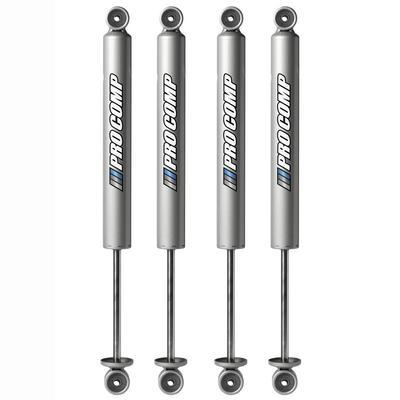

- PRO-M front and rear shocks, included
- Block and U-bolt rear lift with add-a-leaf hardware
- Lift height range of 6 to 7 inches
Block and U-bolt basics
A block-style rear lift sits between the axle and the springs and is held on by U-bolts. Because the blocks change axle position, the driveline and brake lines are affected, and those should be checked before the truck is driven hard. Plan the work so the truck can sit on level ground during the final torque.
Add-a-leafs add leaves to the existing spring pack, which helps the rear carry the new height under load. Used together with blocks, they change how the rear reacts to bumps, so a test drive after installation is worth doing.
Hardware on heavy-duty trucks sees a lot of movement. U-bolts can loosen, blocks can shift and bushings can wear. Clean, lubricate where the design calls for it, and inspect the rear at each oil change or tire rotation.
- Recheck U-bolt torque after early drives
- Look for shifting blocks or cracked brackets
- Watch for brake hose tension at the new height
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4152M |
| Suspension type | Lift kit, 6-inch stage 2 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-M |
| Rear shocks | PRO-M, included |
| Rear lift method | Block/spacer with block and U-bolt and add-a-leaf |
| Shocks included | Yes |
Vehicle fitment
It fits the 2008–2010 Ford F-250 Super Duty and 2008–2010 Ford F-350 Super Duty, in the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions.
Its fit covers the 2008–2010 Super Duty only, so 2007 and older trucks, 2011 and newer trucks, and the F-150 fall outside it. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The block and U-bolt rear lift with add-a-leaf parts raises the rear of these heavy-duty trucks, so check the rear suspension, the driveline angles and the front alignment after installation.
What’s included
PRO-M front and rear shocks, and the block and U-bolt rear lift components with add-a-leaf hardware.
