Pro Comp 4″ Stage I Lift Kit with PRO-X Shocks – K4071T

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1980 to 1989 Ford F-150 trucks
  • 4-inch stage 1 lift with PRO-X front and rear shocks
  • Block or spacer rear lift
  • Lift height range of 4 to 5.5 inches

Description

Overview

The Pro Comp 4-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK4071T (kit K4071T), is a stage 1 suspension lift for 1980 to 1989 Ford F-150 trucks, across the trim versions named in the overview.

The specifications list 4 inches of stage 1 lift and a lift height range of 4 to 5.5 inches. At the rear, a block or spacer setup with a block and U-bolt component does the lifting. PRO-X shocks are listed at the front and the rear and are included with the kit.

Key features

  • 4-inch stage 1 suspension lift

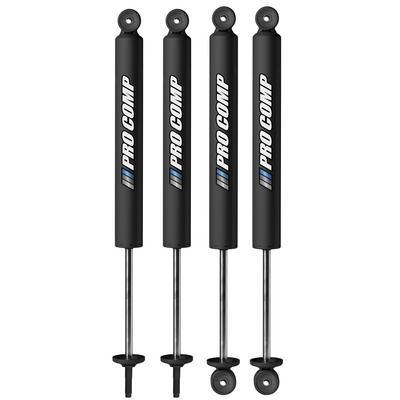

  • PRO-X shocks at the front and rear, included
  • Block or spacer rear lift with a block and U-bolt component
  • Lift height range of 4 to 5.5 inches

Old frame and body mounts

Trucks from the 1980s often have aging frames, body mounts and rubber bushings, and a lift puts new load into all of them. Before installing, look at the frame rails near the spring hangers and the body mounts for rust, cracks or soft spots. A lift is a good moment to address these areas, since the components are already being removed.

A block or spacer rear changes how the axle sits under the truck, so the spring perches and U-bolt plates should be checked for corrosion. Inspect the shock mounts, brake lines and fuel line routing after the lift. Replace any rubber bushings that have hardened or split, since they are inexpensive to change while the suspension is apart.

  • Look for frame rust near spring hangers
  • Check body mounts for cracked rubber
  • Replace hardened bushings during install

Specifications

Brand Pro Comp Suspension
Part number EXPK4071T
Kit code K4071T
Suspension type Lift kit, stage 1
Lift height 4 inches stage 1; range 4 to 5.5 inches
Rear lift method Block or spacer
Rear lift component Block and U-bolt
Shocks included Yes
Front shocks PRO-X
Rear shocks PRO-X
Fit type Direct fit

Vehicle fitment

Its fit covers the 1980 to 1989 Ford F-150 in all of the Base through XLT Lariat versions named in the overview.

The list does not include the 1979 and earlier F-150 or the 1990 and newer models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rear block and U-bolt setup changes the rear height, so measure the truck front to rear after installation and have the alignment checked.

What’s included

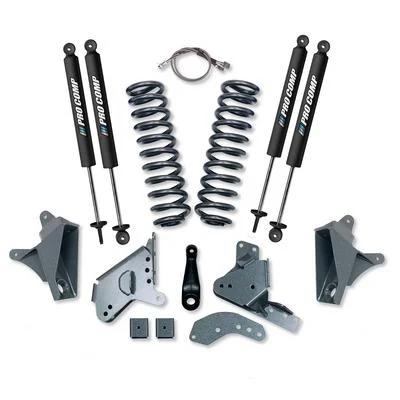

A 4-inch stage 1 lift kit, including PRO-X shocks at the front and rear.

SKU: EXPK4071T Categories: ,

Fitment

VehicleYearsTrims
Ford F-1501980–1989Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K4071T fit a 1984 Ford F-150?

Yes. It fits 1980 to 1989 Ford F-150 trucks, and 1984 falls within that range. Confirm the trim before ordering.

Are PRO-X shocks included?

Yes. PRO-X shocks are listed at the front and the rear, and they are included with the kit. The specifications list PRO-X at the front and the rear of the truck.

Does it fit a 1986 Ford F-150 XL?

Yes. It fits 1980 to 1989 Ford F-150 trucks, including the XL version, and 1986 falls within that range. Check the trim on your truck before ordering.

Should an older F-150 be inspected before a lift?

Yes. Check the frame rails, spring hangers and body mounts for rust or cracks and address any damage first. A lift adds load to these areas, so sound mounting points matter more on an older truck.
