  • Fits the 2011–2016 Ford F-250 and F-350 Super Duty.
  • 8-inch Stage II lift, lift height range 8 inches and up
  • Block and spacer rear lift with block and U-bolt components
  • PRO-X front and rear shocks, included
  • Part number EXPK4186T (K4186T)

Description

Overview

The Pro Comp EXPK4186T, also written K4186T, is an 8-inch Stage II suspension lift kit with PRO-X front and rear shocks for the 2011–2016 Ford F-250 and F-350 Super Duty. It is a direct fit for both trucks, with a block and spacer rear lift.

Stage II is the step above Stage I in Pro Comp’s 8-inch line. The general text describes Stage II systems as including replacement radius arms of 4130 chromoly tubing with 3/16-inch steel plate, laser-cut brackets and a drop pitman arm, and specific-rate coil springs.

The specifications list a lift height of 8 inches with a range of 8 inches and up, so the finished height will depend on the truck and its load.

Key features

  • 8-inch Stage II lift with a lift height range of 8 inches and up
  • The Stage II system uses replacement radius arms.
  • Laser-cut brackets and a drop pitman arm, per Pro Comp’s text
  • PRO-X front and rear shocks, included
  • Direct fit to the listed 2011–2016 Super Duty trucks

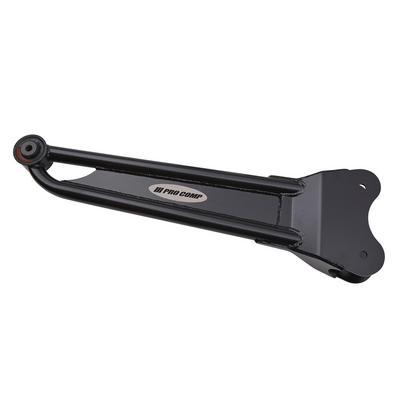

Stage II radius arms and steering

Radius arms control how the axle locates under acceleration and braking, so a Stage II system changes more of the rear geometry than a basic lift. Pairing new arms with the block and spacer rear keeps the axle in a stable position at the new height. Alignment and steering checks become more important as a result.

Coil springs and drop pitman arm designs are often replaced together with arms in higher stage systems, because the steering and spring rates must match. Inspect the steering linkage, ball joints and tie rod ends for play before installing and again after the first drives. Replace worn bushings early.

  • Check steering linkage for play
  • Inspect ball joints and tie rod ends
  • Align the front end after install
  • Recheck pinion angle at the new height

Specifications

Brand Pro Comp Suspension
Part number EXPK4186T (K4186T)
Kit type Lift kit, complete suspension system
Kit stage Stage 2
Lift height 8 inches; lift height range 8 inches and up
Rear lift method Block and spacer
Rear lift component Block and U-bolt with add-a-leafs
Front shocks PRO-X
Rear shocks PRO-X
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

It fits the 2011–2016 Ford F-250 Super Duty and 2011–2016 Ford F-350 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT trims.

Trucks from 2010 and earlier and from 2017 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Stage II radius arms replace factory parts and change axle location, so an alignment and a check of the steering geometry are needed after installation.

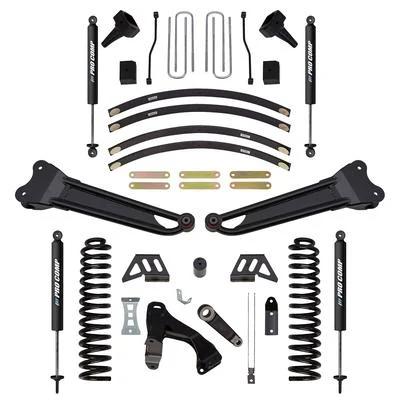

What’s included

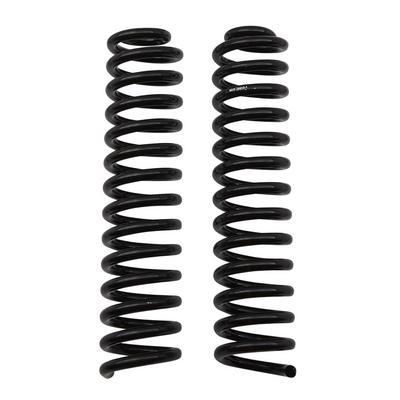

PRO-X front and rear shocks come with the kit. The Stage II system also includes coil springs and the radius arm set. Check the package contents against your installation before starting.

SKU: EXPK4186T Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT
Ford F-350 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How is the K4186T different from the Stage I K4184T?

The K4186T is a Stage II kit, while the K4184T is Stage I. Both use PRO-X shocks and cover the 2011–2016 Super Duty trucks, but this Stage II kit adds the radius arm system.

Does this kit fit an F-350 Super Duty?

Yes. It fits the 2011–2016 Ford F-350 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT trims, as well as the F-250 Super Duty in the same years.

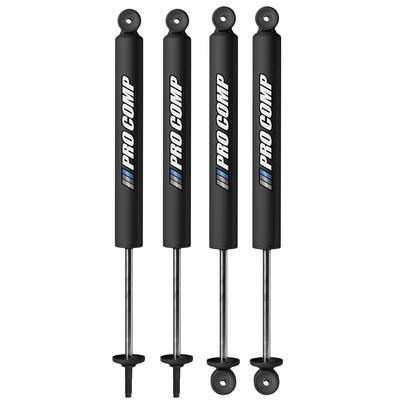

What shocks come with the Stage II kit?

PRO-X shocks are listed at the front and rear, and the specifications mark them as included with the kit. They are part of the Stage II system.

How do I know if radius arm bushings need replacing?

Look for clunking over bumps, wander under braking, or uneven rear tire wear. Check the bushings for cracks, separation or movement by hand. Replace them as a set so the arms keep the same geometry on both sides.
