Pro Comp 6″ Stage 1 Suspension Lift Kit with PRO-M Shocks – K6006MS

Pro Comp Suspension

Shop Nissan Titan Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 suspension lift with PRO-M front and rear shocks for Nissan Titan pickups
  • Block and U-bolt rear lift with block/spacer method; lift height range 6–7 inches
  • Tire size of 35 inches
  • Fits 2004–2015 and 2017–2021 Titan models

Description

Overview

The Pro Comp K6006MS is a 6-inch stage 1 suspension lift with PRO-M front and rear shocks for the Nissan Titan. It fits the 2004–2015 and 2017–2021 model years, and the lift height range is 6 to 7 inches.

The rear uses a block and spacer design with block and U-bolt components. The tire size is 35 inches. The kit raises the height and levels the stance of these trucks.

Key features

  • 6-inch stage 1 lift for the Nissan Titan

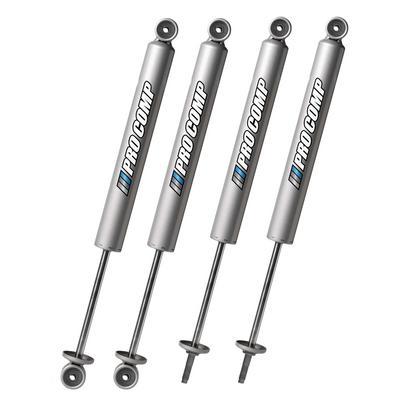

  • PRO-M front and rear shocks, included

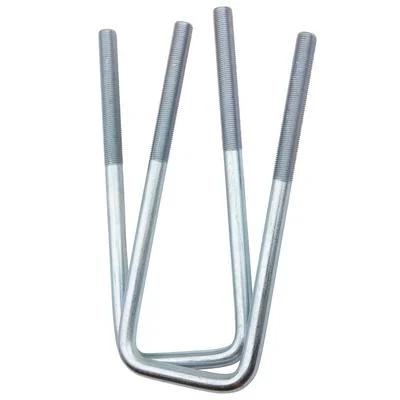

  • Block and U-bolt rear lift components
  • Lift height range of 6 to 7 inches
  • Tire size of 35 inches

Driveline and ride height

A block and U-bolt rear lift raises the axle relative to the frame, which changes the pinion angle and the driveline angle. On a truck used for towing or daily hauling, that angle matters more than the height itself. Pinion angle can be checked with an angle gauge at the axle yoke, and some owners add a pinion correction or a different driveshaft when the change is large.

Front and rear lift parts should be chosen together, so the ride height does not end up uneven. Shock length, brake hose reach and sensor wires all depend on the new height. Keep part numbers for the block set, since replacement pieces are often needed after years of heat cycling.

  • Measure pinion angle before and after the install
  • Check brake hose reach at full droop
  • Inspect U-bolts and nuts at each service

Specifications

Brand Pro Comp Suspension
Part number K6006MS
Suspension type Lift kit, 6-inch stage 1
Lift height 6 inches, listed range 6–7 inches
Front shocks PRO-M
Rear shocks PRO-M, included
Rear lift method Block/spacer with block and U-bolt
Tire size 35 inches
Shocks included Yes

Vehicle fitment

It fits Nissan Titan trucks in the LE, PRO-4X, Platinum Reserve, S, SE, SL, SV and XE versions, covering 2004–2015 and 2017–2021.

There is no 2016 model year in the fit. Other Nissan trucks, including the Titan XD, are not covered. Match your truck’s year, model and trim to this fit before ordering.

Installation notes

On a Titan, the block and U-bolt rear lift and the front lift change the ride height and the driveline angles, so have the alignment checked after the kit is installed and confirm the driveline clearance at the new height.

What’s included

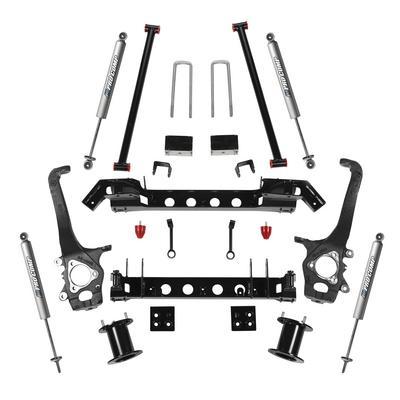

PRO-M front and rear shocks, the block and U-bolt rear lift components, and the rest of the lift hardware for this kit.

SKU: EXPK6006MS Categories: ,

Fitment

VehicleYearsTrims
Nissan Titan2004–2015, 2017–2021LE, PRO-4X, Platinum Reserve, S, SE, SL, SV, XE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K6006MS fit a 2018 Nissan Titan PRO-4X?

Yes. The 2017–2021 Nissan Titan is in the listed fitment, and the PRO-4X is one of the versions named. Confirm the model year and version on your truck before ordering.

Does the K6006MS fit a 2016 Nissan Titan?

No. The fit has no 2016 model year, so a 2016 Titan is not covered by this kit. Confirm the year and trim on your truck before ordering.

What tire size does the K6006MS work with?

The specifications list a 35-inch tire size for this kit. Check the clearance on your own truck with the wheels you plan to run before buying tires.

Do I need a pinion correction after a block lift?

Not always. Measure the pinion angle with an angle gauge after the install. If the angle differs noticeably from the driveline at the transmission end, a correction kit or a shaft change can reduce vibration. Recheck the angle after any suspension change.
