Pro Comp 4 Inch Lift Kit with ES3000 Shocks – K3067

Pro Comp Suspension

Shop Jeep CJ5 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 leaf spring lift for 1976–1981 Jeep CJ5 and CJ7 models
  • Pitman arm steering correction, with brake lines not included
  • ES3000 front and rear shocks
  • Max tire size 33×12.50 on 15 to 20-inch wheels

Description

Overview

The Pro Comp K3067 is a 4-inch stage 1 leaf spring lift with ES3000 shocks for 1976–1981 Jeep CJ5 and CJ7 models. It fits CJ5 Base, Golden Eagle, Laredo and Renegade trims, and CJ7 Base, Golden Eagle, Golden Hawk, Laredo and Renegade trims.

A pitman arm corrects the steering for the raised height, and ES3000 shocks are fitted at the front and the rear. The rear is positioned as a rear kit and uses springs with U-bolts. Brake lines are not included, so the existing lines will need to be checked against the new height.

Key features

  • 4-inch stage 1 lift
  • Front leaf springs
  • Rear springs and U-bolts
  • Pitman arm steering correction
  • ES3000 front and rear shocks
  • Wheel size range 15 to 20 inches

Steering and brake line planning

A pitman arm changes the steering linkage geometry, so centering and toe should be checked once the new height is set. Even small changes can make the steering wander or pull, especially at highway speed. Keeping the steering components in good condition makes these checks easier, since worn tie rod ends and loose drag link joints can mask the effect of a new arm.

Brake lines are the other part to plan around. Taller suspension stretches the lines at full droop, so measure them against the new ride height before mounting the wheels. Flexible hoses should be inspected for cracks, bulges and chafing wherever they pass near the frame or suspension travel. Replacing older lines during the lift is a sensible way to avoid a second tear-down later.

Specifications

Brand Pro Comp Suspension
Part number K3067
UPC 614901123203
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Leaf spring
Front lift Leaf springs
Rear lift Springs and U-bolts
Steering correction Pitman arm
Brake lines Not included
Front shocks ES3000
Rear shocks ES3000
Position Rear
Max tire size 33×12.50
Wheel size range 15 to 20 inches
Wheel width range 8 to 10 inches

Vehicle fitment

It fits 1976–1981 Jeep CJ5 and 1976–1981 Jeep CJ7 models in the trims named above. Later CJ models and Wrangler generations are not covered.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because brake lines are not included, measure and order lines that suit the new height before the lift goes in. The pitman arm change alters the steering linkage, so check the steering centering once the kit is installed.

What’s included

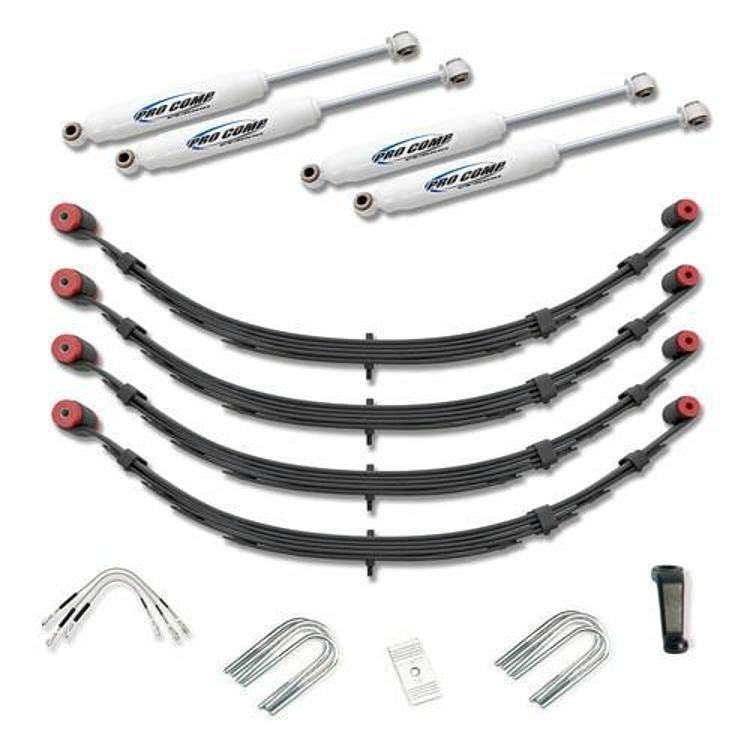

The kit includes front leaf springs, rear springs and U-bolts, a pitman arm for steering correction and ES3000 front and rear shocks. Brake lines are not included.

SKU: EXPK3067 Category:

Specification

Shipping weight 168.64 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1981Base, Golden Eagle, Laredo, Renegade
Jeep CJ71976–1981Base, Golden Eagle, Golden Hawk, Laredo, Renegade

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3067 include brake lines?

No. The brake lines are not included with this kit, so they must be sourced separately to suit the raised height.

Does the K3067 fit a 1979 Jeep CJ7?

Yes. It fits 1976–1981 Jeep CJ7 models, which includes 1979. Confirm your trim before ordering, since several CJ7 trims are covered.

What steering correction does the K3067 use?

The kit uses a pitman arm for steering correction, and ES3000 shocks are supplied at both ends. Check the steering centering after installation because the pitman arm changes the linkage.

Can a pitman arm kit be used with other steering upgrades?

Often yes, but the steering linkage should be rechecked whenever a second steering part changes. Tie rod ends, drag links and steering stops all affect centering. Check each part after installation and keep a record of the alignment for later service.
