Overview

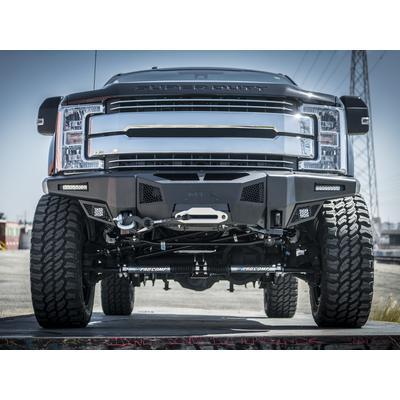

The Pro Comp K4214 is a Stage III 8-inch 4-link suspension kit for the 2017–2021 Ford F-250 and F-350 Super Duty. It is sold without shocks and provides up to 8 inches of lift.

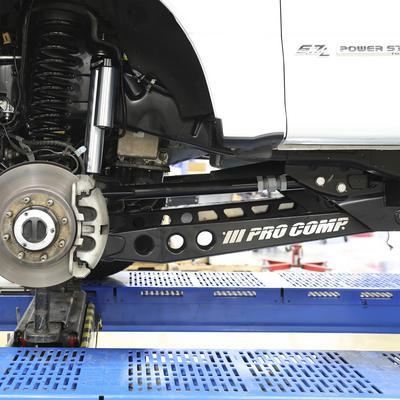

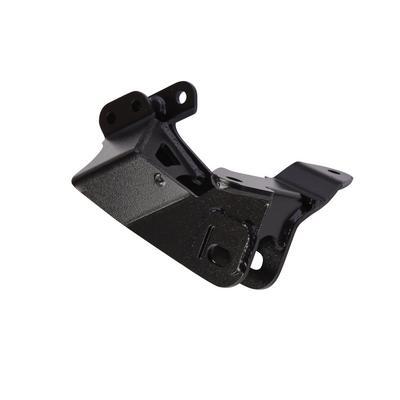

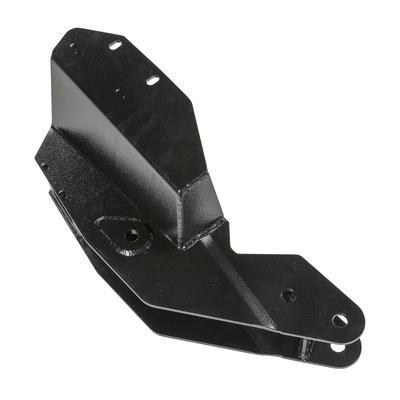

The kit uses extended-length control arms in a 4-link arrangement. Pro Comp says its brackets keep the roll center in place, increase wheel travel and hold caster and pinion angle change to a minimum. The upper control arms are tubular and can be adjusted on the vehicle for caster, and the lower arms are custom-stamped steel.
The kit does not include shocks, so a shock package needs to be chosen separately for an 8-inch lift. The lower arms clear 40-inch tires at full steer, so check tire and wheel choice against that clearance.
Key features
- Extended-length control arms in 4-link geometry

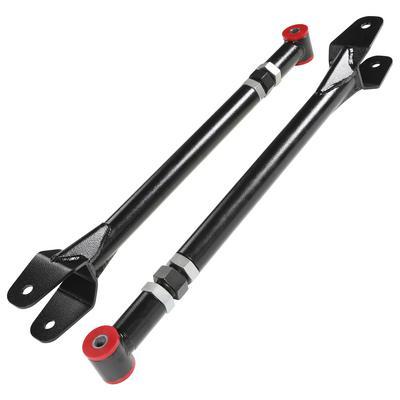

- Tubular upper control arms adjustable for caster
- Transfer case crossmember between the brackets

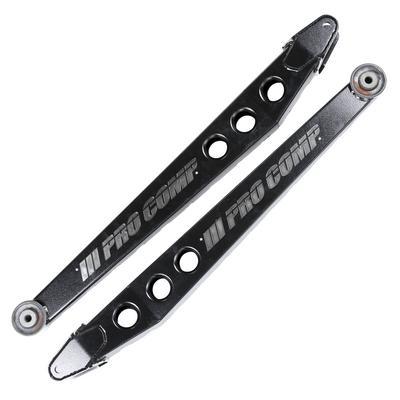

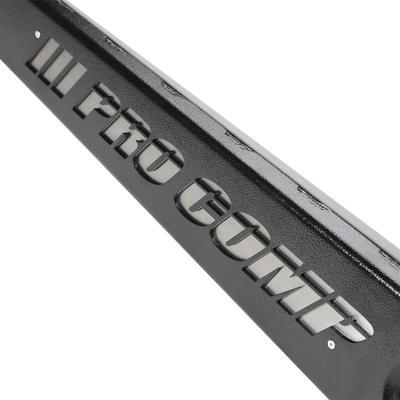

- Custom-stamped steel lower arms
- Shocks not included
Choosing a shock package
Because this kit ships without shocks, the shock choice sits with the buyer. Look for units rated for the longer travel that an 8-inch 4-link creates, and check that the eyelet and stud sizes match the brackets on the truck. Matching the front and rear pair keeps the truck balanced over bumps and under braking.
Other parts often replaced with a lift of this size include brake hoses, sway bar links and bump stops. Inspect them during installation, since their length and reach change at height. Plan a full driveline check once the new shocks and arms are in place, and retorque all bolts after the first few drives.
- Confirm shock eye and stud dimensions before buying
- Consider brake hose extensions if the hose is short
- Replace worn sway bar end links during the install
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4214 |
| Suspension type | 4-link suspension kit |
| Kit | Stage III, 8 inches |
| Shocks | None |

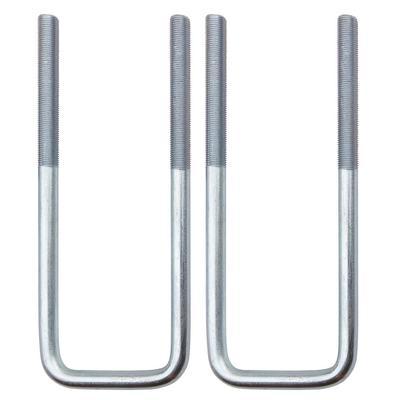

| Rear lift component | Block and U-bolt |
| Lift height range | 8 in and up |
Vehicle fitment
It fits the 2017–2021 Ford F-250 Super Duty and the 2017–2021 Ford F-350 Super Duty, in the King Ranch, Lariat, Limited, Platinum, XL and XLT trims.
Super Duty models from 2022 onward and the F-450 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An 8-inch 4-link kit needs a professional alignment and a driveline angle check after installation. Choose shocks rated for the 8-inch height, and confirm the clearance for the tire size you plan to run.

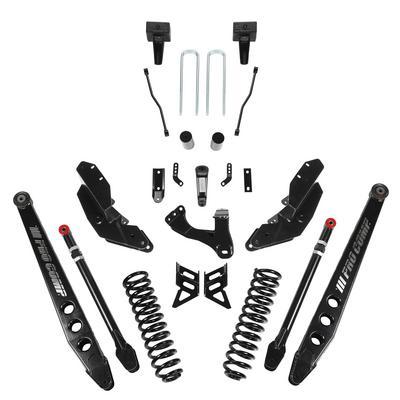

What’s included

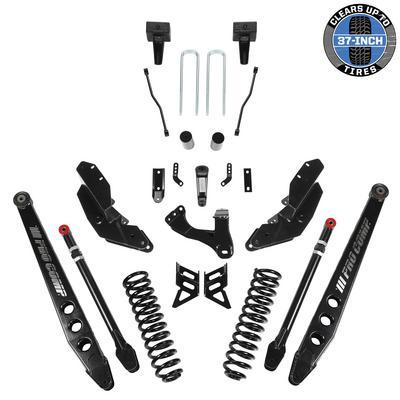

The 4-link components described above are included, and no shocks are part of the kit.
Not included: shocks, tires and wheels.
