Pro Comp 6″ Lift Kit with Pro-VST Front Coilovers and Pro-VST Rear Shocks – K5089BX

Pro Comp Suspension

Shop Toyota Tacoma Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch suspension system for 2016–2023 Toyota Tacoma pickups
  • Extended steering knuckles keep the rack-and-pinion steering in the factory location
  • Rock-proof crossmembers and PRO-VST front and rear shocks
  • Lift height range 6–7 inches with block/spacer rear lift

Description

Overview

The Pro Comp K5089BX is a 6-inch lift kit with PRO-VST front coilovers and PRO-VST rear shocks for the 2016–2023 Toyota Tacoma. Pro Comp built it as a 6-inch suspension system for the 2016 Tacoma, with a 6 to 7 inch lift height range and shocks included.

The front uses extended steering knuckles, so the rack-and-pinion steering unit stays in its factory location. Rock-proof crossmembers are part of the design, and Pro Comp says its engineering keeps the suspension angles right through the full range of compression and extension travel without binding the ball joints.

Key features

  • Extended steering knuckles that keep the rack-and-pinion steering in the factory location
  • Rock-proof crossmembers for added durability
  • Geometry designed to avoid ball joint binding through full compression and extension travel
  • PRO-VST front coilovers and PRO-VST rear shocks, included
  • Block and U-bolt rear lift with add-a-leaf hardware

Choosing the right setup

Front suspension lifts raise the truck through the knuckles and springs, which changes the angles of the steering and axle joints. Extended knuckles are a common way to keep the steering rack where the factory put it, so the tie rods stay closer to their original geometry. Owners often pair a lift like this with a steering stabilizer and fresh tie rod ends during the same job.

Look at the wheel and tire size you plan to run before buying. Bigger tires add load to ball joints and wheel bearings, so inspect those parts during the first few weeks of driving. Check the brake hoses for stretch once the truck sits at full height, and recheck the lug nuts after a short run. Asking a shop to inspect the old components before the install begins can prevent surprises.

Specifications

Brand Pro Comp Suspension
Part number K5089BX
Suspension type Lift kit, stage 1
Lift height 6 inches, listed range 6–7 inches
Front shocks PRO-VST coilovers
Rear shocks PRO-VST, included
Rear lift method Block and U-bolt with add-a-leaf
Shocks included Yes

Vehicle fitment

It fits the 2016–2023 Toyota Tacoma in the Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport and Trail configurations.

It is made for 2016–2023 Tacoma models, not the 2005–2015 Tacoma, the 4Runner or the Tundra. Check the year and trim on your truck before buying.

Installation notes

The kit adds extended steering knuckles and rock-proof crossmembers at the front, and the lift changes driveline angles, so have the alignment and driveline angles checked after installation.

What’s included

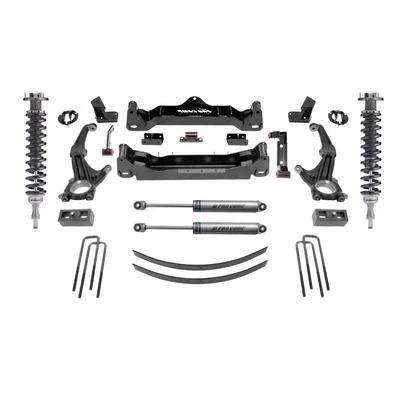

PRO-VST front coilovers, PRO-VST rear shocks, extended steering knuckles, rock-proof crossmembers, and the rear block and U-bolt lift hardware.

SKU: EXPK5089BX Categories: ,

Fitment

VehicleYearsTrims
Toyota Tacoma2016–2023Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K5089BX fit a 2016 Toyota Tacoma?

Yes. It fits the 2016–2023 Toyota Tacoma and is built as a 6-inch suspension system for the 2016 Tacoma. It includes extended steering knuckles and rock-proof crossmembers at the front.

Does the K5089BX keep the factory steering position?

Yes. The extended steering knuckles keep the rack-and-pinion steering unit in its factory location. The steering setup stays as the factory built it, with the knuckles doing the lifting work at the front.

Which shocks are included with the K5089BX?

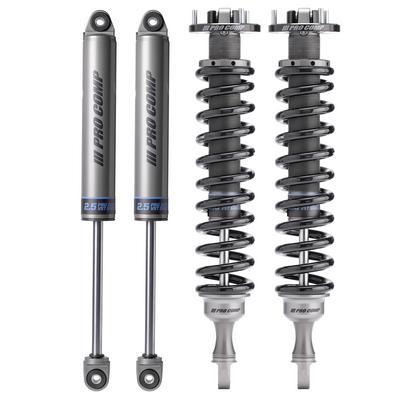

PRO-VST front coilovers and PRO-VST rear shocks come with the kit. The lift height range is 6 to 7 inches, and the shocks are part of the same package for the front and rear.

Do I need a steering stabilizer after this lift?

Not always, but many owners fit one. Extended knuckles keep the steering geometry closer to stock, yet larger tires and a higher stance can still cause wander or shake. Inspect the tie rod ends and ball joints regularly, especially after rough trail use.
