Overview
The Pro Comp K4181M is a 6-inch stage 1 lift kit for the 2011–2016 Ford F-350 Super Duty. The specifications list PRO-M front shocks and a block/spacer rear lift, with a lift height range of 6 to 7 inches and shocks included.
Laser cut brackets help maintain suspension geometry on the F-350 Super Duty, and a drop pitman arm is used for steering geometry. Specific rate coil springs raise ride height and are designed to improve ride quality, and stage 1 systems include radius arm drop down brackets.
Key features
- Laser cut brackets for suspension geometry
- Drop pitman arm for steering geometry
- Specific rate coil springs that raise ride height
- Radius arm drop down brackets in stage 1 systems
- PRO-M front shocks
Coil springs and steering geometry
Coil springs set ride height and carry the weight of the front end, so a change in spring rate affects both comfort and how the truck settles under load. Specific rate springs are chosen to suit a heavier truck, and checking the fit at the spring seats and the upper mounts is a useful step during installation.
Steering geometry depends on the pitman arm, the drag link and the tie rods working together. A drop pitman arm alters the angle of the steering linkage, which can change steering centering and response. After any change, check for play in the joints and test steering at low speed before a longer drive.
- Check spring seats and upper mounts for fit
- Inspect drag link and tie rod ends for play
- Confirm steering centers after alignment
- Look for wear on the laser cut brackets over time
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4181M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-M |
| Rear lift method | Block/spacer |
| Shocks included | Yes |
| Fitment | Direct fit for the 2011–2016 Ford F-350 Super Duty |
Vehicle fitment
It fits the 2011–2016 Ford F-350 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT versions.
It fits the F-350 Super Duty through 2016. Check that your F-350’s year, model and trim fall inside this fit before buying, since 2017 and newer trucks and the F-250 Super Duty fall outside the 2011–2016 entry.
Installation notes
The rate coil springs raise the ride height, and the drop pitman arm is part of the steering setup. Check the driveline angles and the steering alignment after the kit is installed.

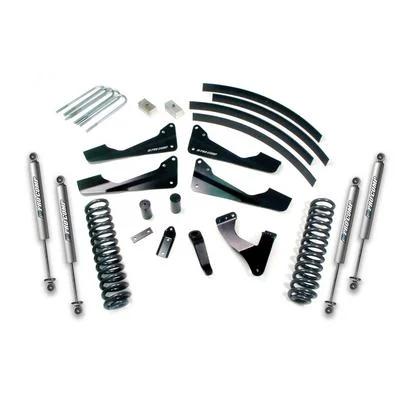

What’s included
The kit includes PRO-M front shocks, laser cut brackets, a drop pitman arm, specific rate coil springs and radius arm drop down brackets for stage 1 systems. Confirm the rear shock model against your installation plan before ordering.
