Pro Comp 6 Inch Stage I Lift Kit with MX2.75 Coilover Front Shocks and Pro Runner Rear Shocks – K5080BPX

Pro Comp Suspension

Shop Toyota Tacoma Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • This 6-inch lift is for the 2012–2015 Toyota Tacoma.
  • Front MX2.75 coilovers with Pro Runner rear shocks
  • Knuckle-type front with a block-type rear lift
  • Product name and spec table disagree on the stage, so confirm before ordering

Description

Overview

The Pro Comp K5080BPX is a 6-inch lift kit with front MX2.75 coilovers and Pro Runner rear shocks for the 2012–2015 Toyota Tacoma. It is a knuckle-type front lift with a block-type rear lift.

This is a Stage 1 kit, so confirm the stage before ordering. The rear uses blocks with Pro Runner shocks, and no steering correction is part of the kit.

Key features

  • 6-inch lift height
  • Front MX2.75 coilovers
  • Pro Runner rear shocks
  • Knuckle-type front suspension
  • Block-type rear lift
  • Lift height range of 5 to 6.99 inches

Coilover front, block rear

Coilovers combine the spring and damper into one unit, which changes how the front is tuned compared with separate coils and shocks. Spring rate and damping work together, so the coilover setting should match the truck’s typical load. Check brake lines and sensor wires for clearance once the front is fitted.

A block-type rear lift raises the axle while the leaf springs stay in place, so the rear ride can feel firmer on rough pavement. Pro Runner rear shocks are paired with the blocks here. Recheck the rear U-bolts after the first drives and confirm the driveline angle has not become too steep.

  • Set alignment after coilover installation
  • Check brake line length at full extension
  • Inspect coilover mounts for cracks

Specifications

Brand Pro Comp Suspension
Part number K5080BPX
UPC 700007161431
Lift height 6 inch (lift height range 5 to 6.99 inches)
Lift kit stage Stage 1 in the spec table (Stage II in the short description)
Suspension type Knuckle
Rear lift Block
Front shocks MX2.75 coilovers
Rear shocks Pro Runner

Vehicle fitment

Trims covered are Base, Pre Runner, TRD Pro and X-Runner for the 2012–2015 Toyota Tacoma.

Only the 2012 through 2015 model years are on the list, so the 2011 and 2016 and newer Tacomas are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Coilovers on the front change the spring and damper setup, so set the alignment after the coilovers are installed and check the brake lines for clearance.

What’s included

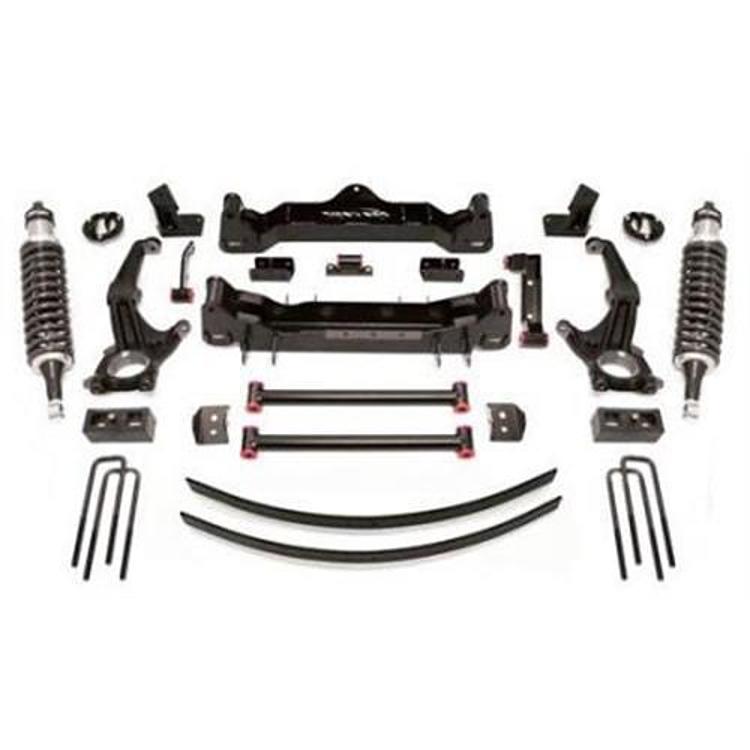

The kit includes the front MX2.75 coilovers, the knuckle-type front components, the block-type rear lift, and Pro Runner rear shocks, as named in the product name and spec table.

SKU: EXPK5080BPX Category:

Specification

Shipping weight 261.80 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Toyota Tacoma2012–2015Base, Pre Runner, TRD Pro, X-Runner

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the K5080BPX a Stage 1 or Stage II kit?

The product name and spec table point to Stage 1, while the short description says Stage II. Confirm the stage with the seller before ordering so the parts match what you expect.

Does it fit a 2016 Tacoma?

No. Coverage runs from 2012 through 2015, so a 2016 Tacoma is outside it. Confirm fit for your vehicle's year, model and trim before ordering.

What rear shock is included?

The spec table lists Pro Runner rear shocks, and the rear lift is a block-type arrangement. The front uses MX2.75 coilovers, so both shock positions are named in the kit.

How often should coilovers be serviced?

Check them at routine service intervals and after rough trail use. Look for oil on the body, a bouncy ride, or uneven tire wear. Coilover springs and dampers that show leaks or fatigue should be replaced as a set.
