Overview
The Pro Comp K4179M is a 6-inch stage 1 lift kit with PRO-M shocks for the 2011–2016 Ford F-250 Super Duty and F-350 Super Duty. It is a direct fit for the King Ranch, Lariat, Platinum, XL and XLT versions of both trucks.
The suspension systems for the 2011 and newer Super Duty F-350 use laser cut brackets and a drop pitman arm to keep suspension and steering geometry in place. Specific rate coil springs raise ride height and improve ride quality. Stage 1 systems include radius arm drop down brackets that help keep the factory ride quality.
Key features
- Laser cut brackets for suspension geometry
- Drop pitman arm for steering geometry
- Specific rate coil springs that raise ride height
- Radius arm drop down brackets in stage 1 systems

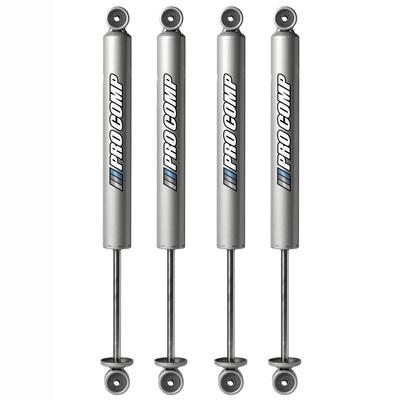

- PRO-M shocks
Things to check
A stage 1 lift on a heavy-duty truck is a good time to look at the whole front end. Steering components, tie rods and the pitman arm carry the load of larger tires and any added front bumper or winch. Inspecting them when the lift goes in prevents surprises later.
Coil springs and shocks should be sized together so the ride stays controlled at both loaded and empty weights. Check the bump stops and the spring seats after installation, and recheck torque on the fasteners after the first few drives. Keep a note of the alignment readings so later changes can be compared.
- Inspect tie rods and steering joints during install.
- Check bump stops and spring seats after the first drives.
- Compare alignment readings before and after changes.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4179M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches |
| Brackets | Laser cut, with radius arm drop down brackets |
| Steering | Drop pitman arm |
| Springs | Specific rate coil springs |
| Shocks | PRO-M; several shock options available |
| Fitment | Direct fit for the 2011–2016 F-250 and F-350 Super Duty |
Vehicle fitment
The kit is a direct fit for the 2011–2016 Ford F-250 Super Duty and the 2011–2016 Ford F-350 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT versions.
It fits through the 2016 model year, so 2017 and newer Super Duty trucks are not included. It does not fit the 2010 and older Super Duty or the F-150. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the coil springs raise the ride height, the driveline angles and the alignment should be checked after installation. The steering setup uses the drop pitman arm, so the steering alignment should be included in that check.

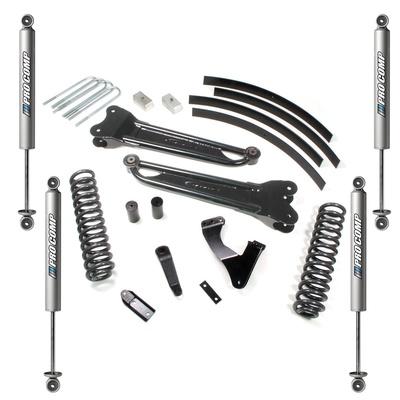

What’s included
Laser cut brackets, the drop pitman arm, specific rate coil springs, radius arm drop down brackets and PRO-M shocks.
