Overview
The Pro Comp 5-inch Stage I Lift Kit with PRO-M Shocks, part number EXPK4035M (kit K4035M), is a stage 1 suspension lift for 2005 to 2007 Ford F-250 Super Duty and F-350 Super Duty trucks. It fits the Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions of both trucks.
The kit is listed at 5 inches of stage 1 lift. The specifications also list a lift height range of 6 to 7 inches, which is higher than the stage 1 figure, so the two numbers should be checked with Pro Comp before installation. The rear uses a block or spacer with a block and U-bolt component and add-a-leafs. PRO-M shocks are included at the front and the rear.
Key features
- 5-inch stage 1 suspension lift

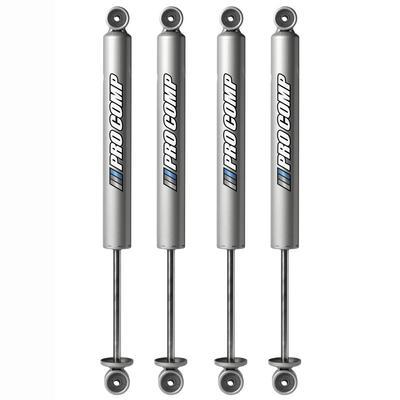

- PRO-M shocks at the front and rear, included
- Block and U-bolt rear with add-a-leafs
- Lift height range of 6 to 7 inches
Add-a-leaf rear setups
Add-a-leafs add extra leaves to the rear spring pack, which can help with load support and rear height. They change the spring rate and the way the rear axle sits, so driveline angle and rear ride should be checked after installation. Owners who carry heavy loads often notice the difference most.
The leaf pack, U-bolts and spring hangers should be inspected regularly. Look for cracked leaves, loose clamp plates and worn bushings. Pair the rear setup with the shocks, since a change in leaf stiffness affects how the rear damping feels on rough roads.
- Check U-bolt torque after the first drives
- Inspect the leaf pack for cracks or shifting
- Look for driveline vibration under load
- Recheck rear height after loading the truck
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK4035M |
| Kit code | K4035M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 5 inches stage 1; range of 6 to 7 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt with add-a-leafs |
| Shocks included | Yes |
| Front shocks | PRO-M |
| Rear shocks | PRO-M |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2005 to 2007 Ford F-250 Super Duty and F-350 Super Duty across the Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions.
The list does not include the 2004 and earlier or 2008 and later Super Duty trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The add-a-leaf rear setup changes the rear height and driveline angle, so confirm the lift height and check the driveline after installation.

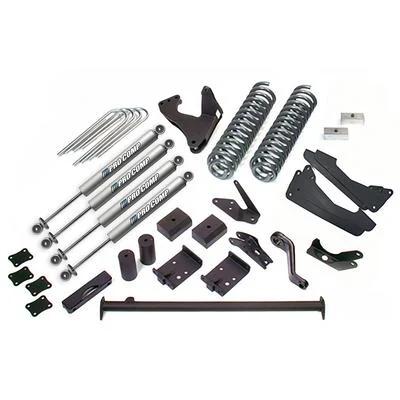

What’s included
The 5-inch stage 1 lift kit with PRO-M front and rear shocks.
