Overview
The Pro Comp K4151T is a 6-inch stage 1 lift kit with PRO-X front and rear shocks for the 2008–2010 Ford F-250 Super Duty and F-350 Super Duty. The lift height range runs from 6 to 7 inches, and the shocks come with the kit.
The rear is lifted with a block and spacer method using block and U-bolt components with add-a-leaf hardware. It fits the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions of both Super Duty models.
Key features
- 6-inch stage 1 lift for the 2008–2010 Super Duty

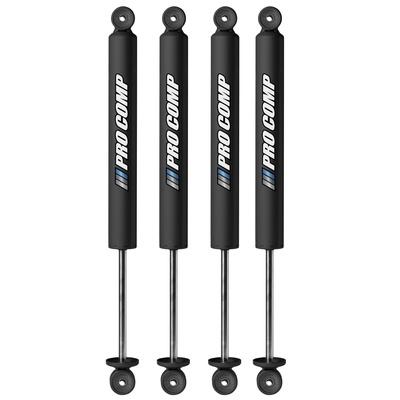

- PRO-X front and rear shocks, included
- Block and U-bolt rear lift with add-a-leaf hardware
- Lift height range of 6 to 7 inches
Choosing lift height and shocks
A lift on a heavy-duty truck changes more than ride height. Raising the rear with a block and U-bolt setup shifts the axle position, so driveline angles change and the pinion needs to be checked. Have an installer measure these once the work is finished, and recheck the U-bolt nuts after the first few trail runs.
Shock length matters when the ride height moves. Shocks matched to the new geometry keep the wheels under control at both ends, which is why replacing front and rear units together is common on a lift. Worn bushings and tired springs are the usual signs the old parts are due for replacement, so inspect them before the kit goes on.
- Look for leaking shock bodies
- Check U-bolts for stretch or rust
- Inspect leaf packs and hangers for cracks
- Re-torque fasteners after initial driving
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4151T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-X |
| Rear shocks | PRO-X, included |
| Rear lift method | Block/spacer with block and U-bolt and add-a-leaf |
| Shocks included | Yes |
Vehicle fitment
It fits the 2008–2010 Ford F-250 Super Duty and 2008–2010 Ford F-350 Super Duty in the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions.
It does not fit the 2007 and older or 2011 and newer Super Duty trucks, or the F-150. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The block and U-bolt rear lift with add-a-leaf parts raises the rear of these heavy-duty trucks, so check the driveline angles and the front alignment after the kit is installed.

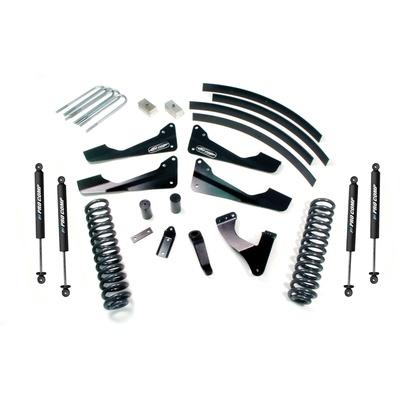

What’s included
PRO-X front and rear shocks, and the block and U-bolt rear lift components with add-a-leaf hardware.
