Overview

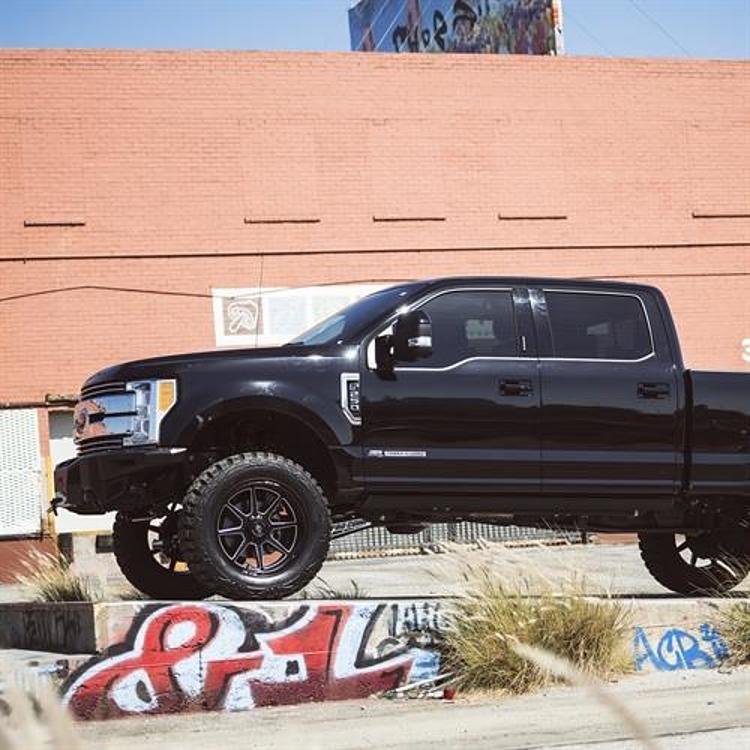

The K4207B is a 4-inch Stage 2 coil spring lift kit with ES9000 front and rear shocks for the 2017–2018 Ford F-250 and F-350 Super Duty. It is made for 4WD diesel models and adds heavy duty radius arm upgrades to the Stage 1 design.

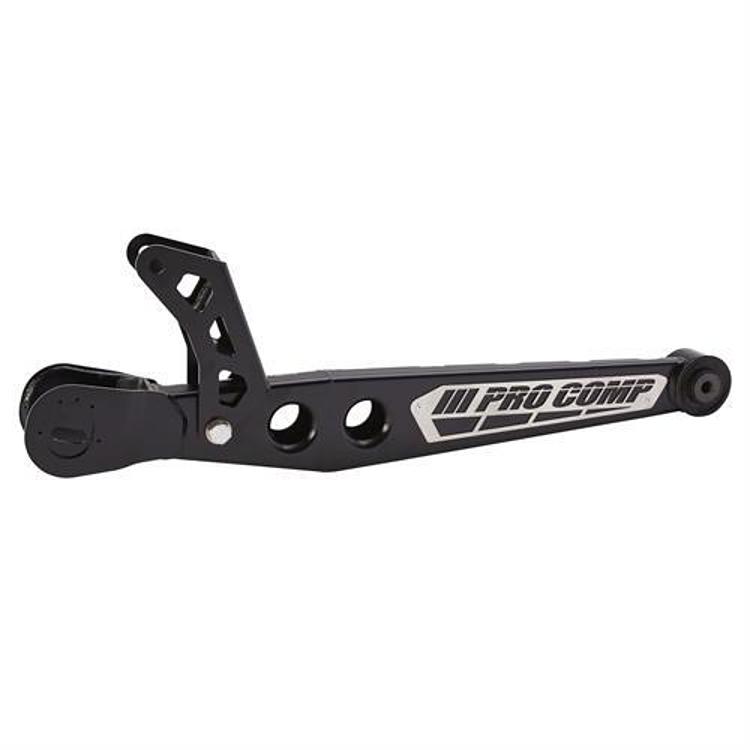

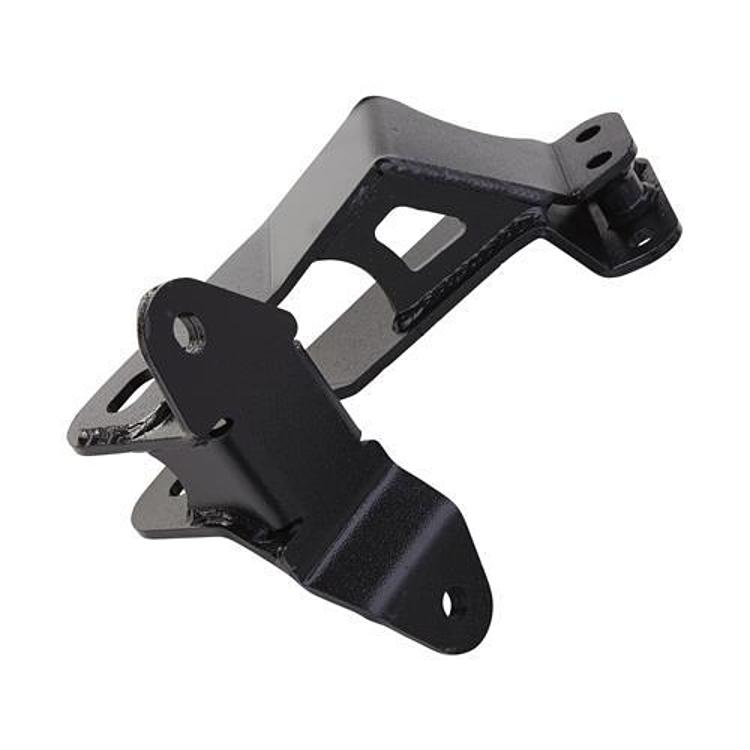

The radius arms are precision laser cut from 3/16 inch steel and finished in a durable powder coat that adds strength and a finished look. Radius arm drop brackets correct the steering geometry for a smooth, comfortable ride.
Key features
- 4-inch lift height, Stage 2
- Radius arm upgrades in 3/16 inch precision laser cut steel
- Durable powder coat finish on the radius arms
- Radius arm drop brackets for steering geometry
- ES9000 front and rear shocks
- Made for 4WD diesel models
Radius arm care and wear
Radius arms take the longitudinal forces of acceleration and braking, so their bushings and mounts carry a lot of the truck’s control. Heavy duty arms help resist flex, but the rubber or polyurethane bushings still wear with time and should be inspected at each service. A worn bushing often shows up as clunking over bumps or a change in tire wear pattern at the front.
Powder coat holds up well on steel, but chips caused by gravel or trail debris should be touched up to prevent rust from starting at the edges. Keep the bolts torqued to the factory specification for the hardware being used, and recheck them after the first few drives. Inspect the drop brackets alongside the arms, since they share the load and any movement there affects alignment.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4207B |
| UPC | 70000792294 |
| Lift height | 4 inch (lift height range 3 to 4.99 inches) |
| Lift kit stage | Stage 2 |
| Suspension type | Coil spring kit |
| Radius arms | 3/16 inch precision laser cut steel with powder coat |

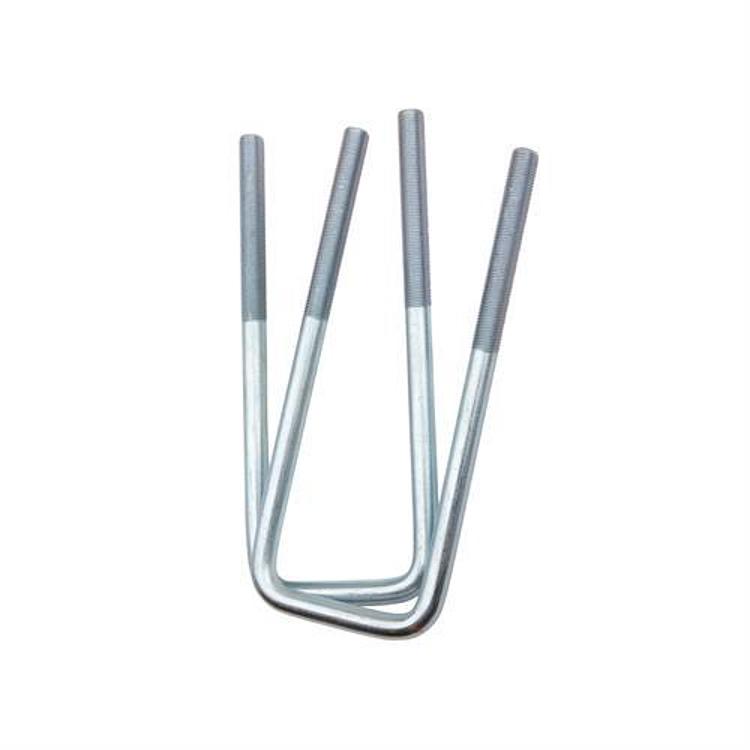

| Rear lift | Lift blocks and U-bolts |

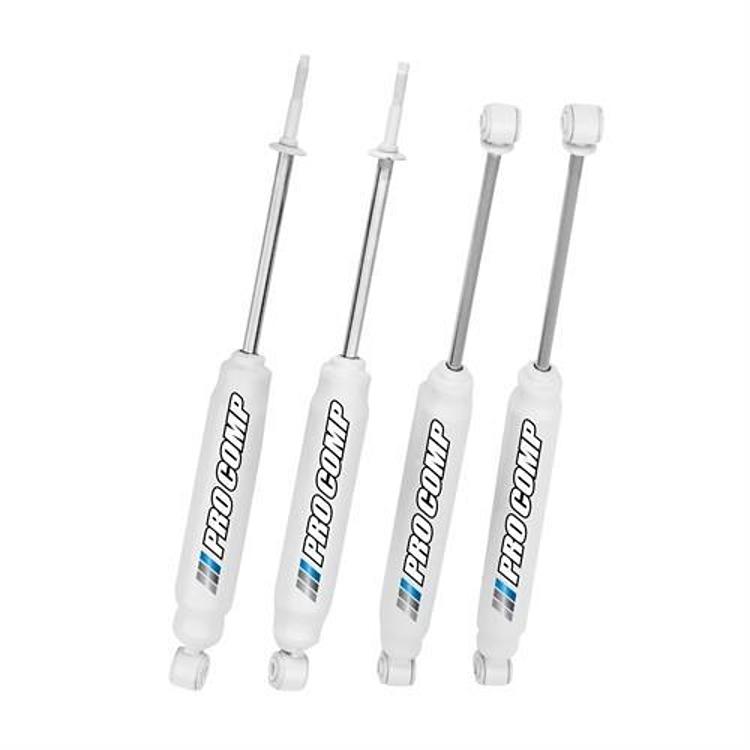

| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Applies to | 4WD diesel models |
Vehicle fitment
Fitment covers the 2017–2018 F-250 and F-350 Super Duty, including King Ranch, Lariat, Limited, Platinum, XL and XLT versions.
The coverage is limited to 2017 and 2018 model years, so the 2016 trucks and the 2019 and newer models are outside the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upgraded radius arms and drop brackets change the front geometry, so have the alignment and the driveline angles checked once the kit is in.
What’s included

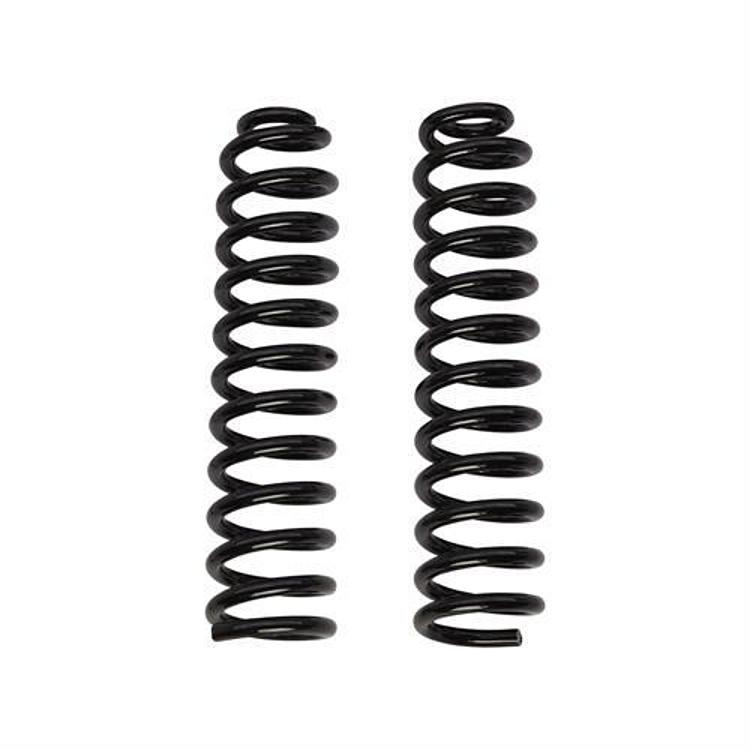

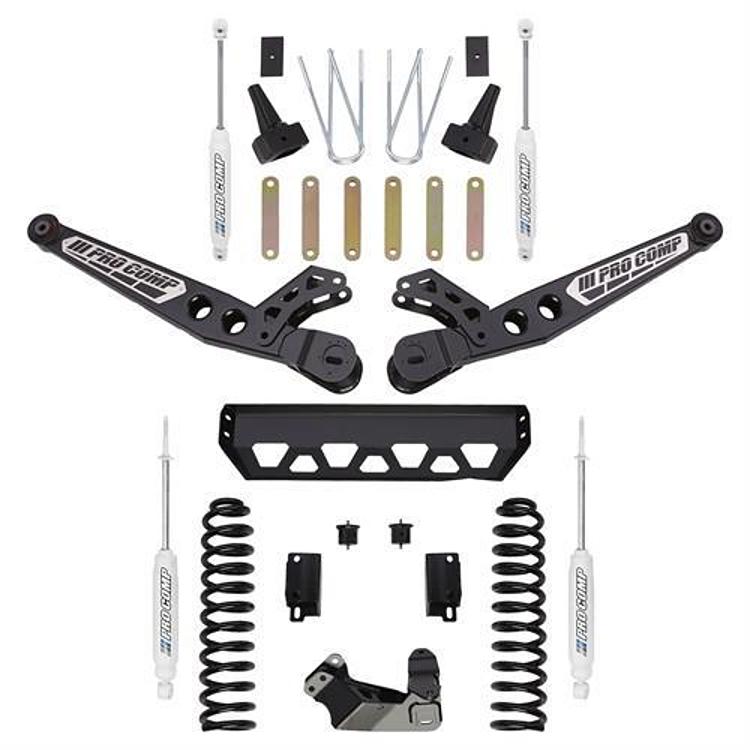

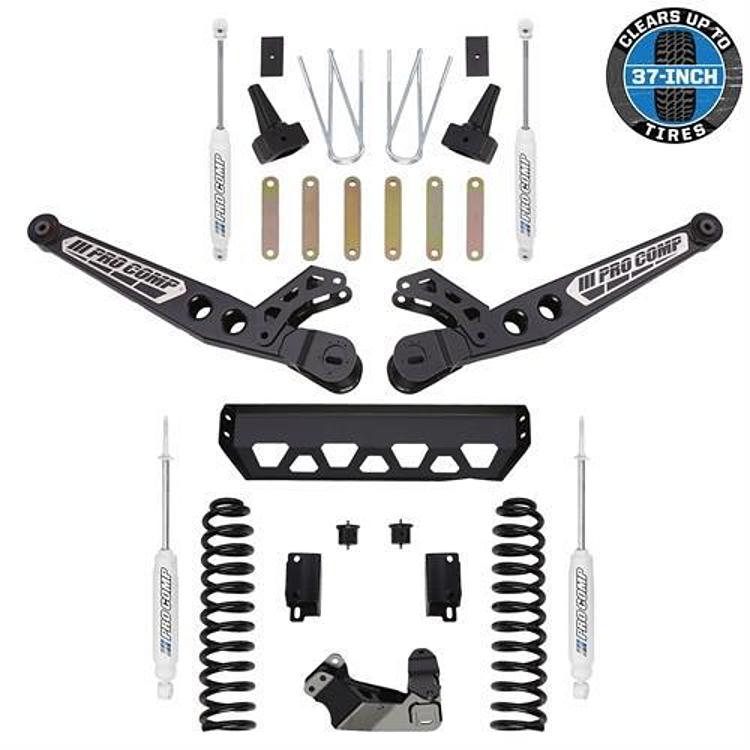

The kit includes the radius arm upgrades in powder coated 3/16 inch steel, radius arm drop brackets, coil spring components, the block and U-bolt rear lift, and ES9000 front and rear shocks.
