Overview
The K4190T is a 6-inch stage 1 lift kit with PRO-X rear shocks for the 2015–2019 Ford F-150. The lift height range is 6 to 7 inches, and the rear shocks come with the kit. The rear uses a block and spacer lift with block and U-bolt components.
The kit has one-piece drop down crossmembers and high-strength, extended steering knuckles, which are designed to maintain steering geometry and factory CV axle angles. It is also compatible with the factory stability control system and is designed to clear 35-inch tires.
Key features

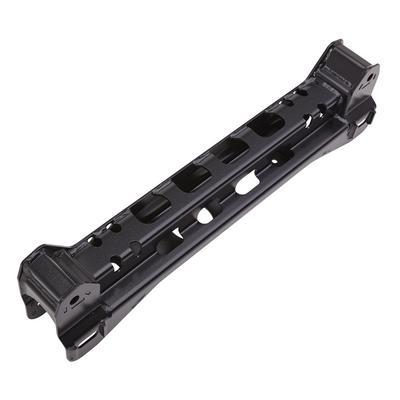

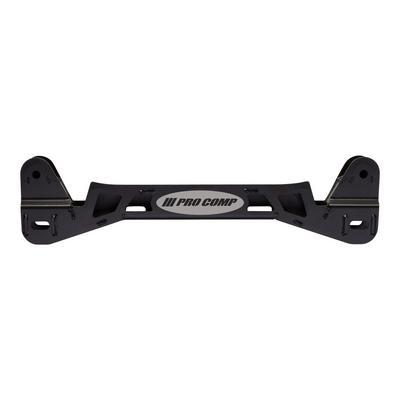

- One-piece drop down crossmembers
- High-strength, extended steering knuckles
- Steering geometry and factory CV axle angles maintained.
- Compatible with the factory stability control system.

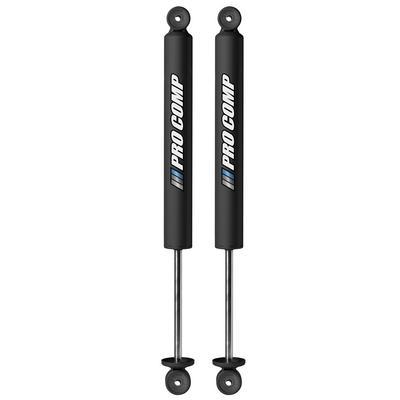

- PRO-X rear shocks, included
Front end and CV angles
Extended steering knuckles and drop down crossmembers move the front suspension points, so the steering linkage and axle angles change with the new height. Front CV joints work best when the axle angles stay within a moderate range, and a worn joint can click on turns. Have the tie rod ends, ball joints and track bar inspected before the lift, since older parts are often replaced alongside the kit.
After installation, the alignment should be set again with the steering geometry in mind, and the toe and caster readings should be recorded. Brake hoses and the front wheel speed sensor wiring may need checking, because the new position changes how they route through full travel. Check CV boots for splits after the first few drives and look for grease on the inside of the wheel.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4190T |
| Suspension type | Lift kit, 6-inch stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Rear shocks | PRO-X, included |

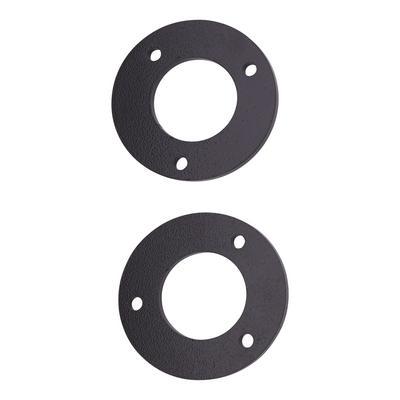

| Rear lift method | Block/spacer with block and U-bolt |
| Tire clearance | 35-inch tires |
Vehicle fitment
It fits the 2015–2019 Ford F-150 in the King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, XL and XLT versions.
The fit ends with the 2019 model year, leaving the 2014 and older F-150, the 2020 and newer F-150 and the Super Duty F-250 and F-350 outside it. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The extended knuckles and drop down crossmembers are part of the front end, so have the alignment and CV axle angles checked after installation. Recheck the driveline angles as well, because the lift changes the ride height.
What’s included
PRO-X rear shocks, the one-piece drop down crossmembers, the extended steering knuckles, and the rear block and U-bolt lift components.
