Overview
The Pro Comp K5066B is a 6-inch Stage 1 knuckle-type lift kit for the 2005–2008 Toyota Tacoma. The front uses crossmembers, compression struts and steering knuckles, and the rear is lifted with lift blocks, U-bolts and add-a-leafs.
The steering correction uses brake line extension brackets. Front sway bar spacers and bump stop extensions complete the front package. The front shocks are re-used OEM units, so confirm the shock package before ordering.
Key features
- 6-inch lift height from a Stage 1 kit
- Front and rear crossmembers
- Compression struts
- Steering knuckles for the front end
- Front sway bar spacers and bump stop extensions
- Rear block and U-bolt kit with add-a-leafs
Front geometry and alignment
Knuckle-type front lifts move the steering knuckles and control arm mounts, so the front suspension geometry changes in more ways than a simple spring swap. Caster, camber and toe all shift with the new ride height, and steering feel can change slightly. Uneven tire wear is often the first sign of a setup that needs adjustment.
Compression struts and the rear block and add-a-leaf setup are often replaced together when a truck is lifted, because mismatched heights can strain the driveline and axle. Check the pinion angle and driveline angles after installation. Rear U-bolts and block hardware should be retightened after the first few drives.
Watch for signs of a worn front end: clicks or knocks at the knuckles, a pull under braking, or sway bar links that rattle. Inspect boots and joints at every service and replace any part that has play.
- Alignment after installation
- Pinion and driveline angle check
- Brake line length and clearance
- Retighten U-bolts and block hardware
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5066B |
| UPC | 614901207330 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Knuckle |
| Front control | Front and rear crossmembers, compression struts and steering knuckles |
| Steering correction | Brake line extension brackets |
| Rear lift | Lift blocks and U-bolts with add-a-leafs |
| Front shocks | Re-use OEM |
Vehicle fitment
It fits 2005–2008 Toyota Tacoma Base and Pre Runner models.
The list covers the 2005 through 2008 model years only, so the 2004 and earlier Tacomas and the 2009 and newer generations are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compression struts and the steering knuckles change the front geometry, so have the alignment set and the driveline angles checked after the kit is installed.
What’s included

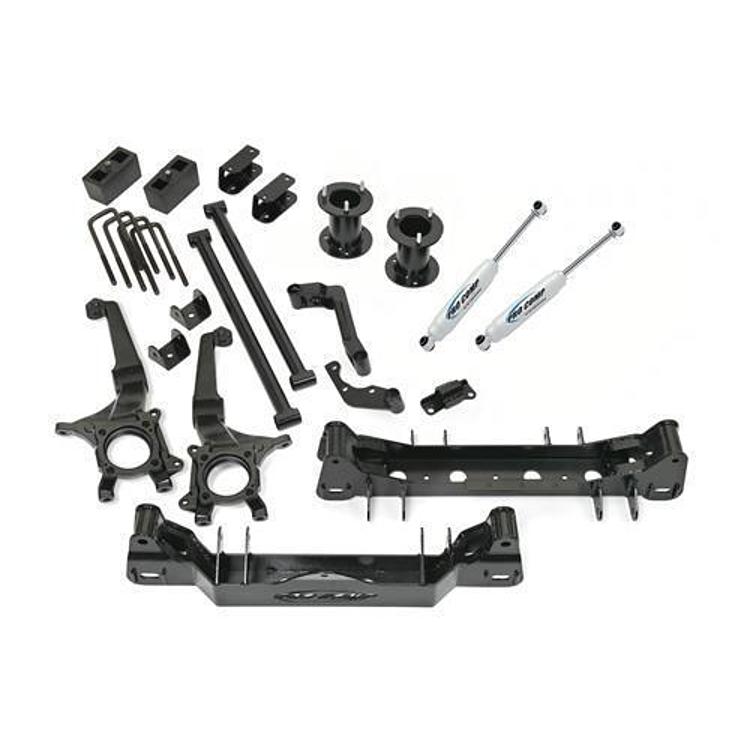

The kit includes front and rear crossmembers, compression struts, steering knuckles, front sway bar spacers, bump stop extensions, brake line extension brackets, and the rear block and U-bolt kit with add-a-leafs.
