Overview

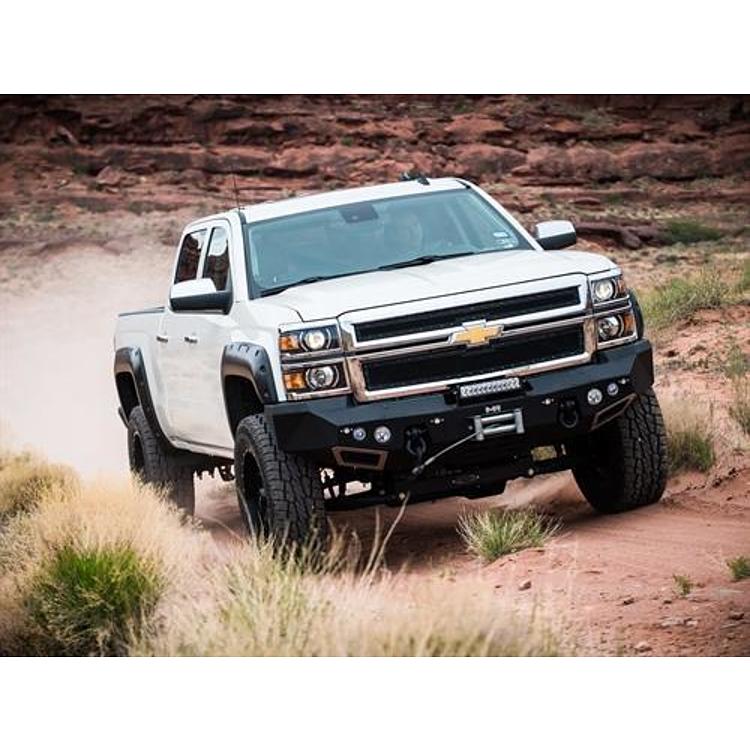

The Pro Comp 6 Inch Lift Kit with Pro-Runner Shocks, part number K1171BPX, is a 6-inch suspension lift for the 2014-2018 Chevrolet Silverado 1500 and GMC Sierra 1500. The kit is built for 2WD and 4WD trucks with a gas engine and is a direct fit for those trucks.

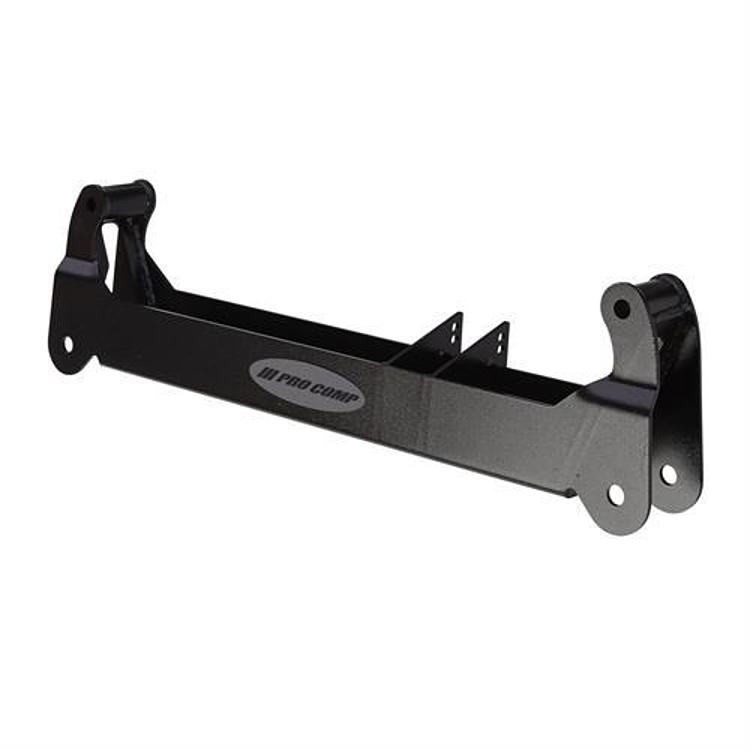

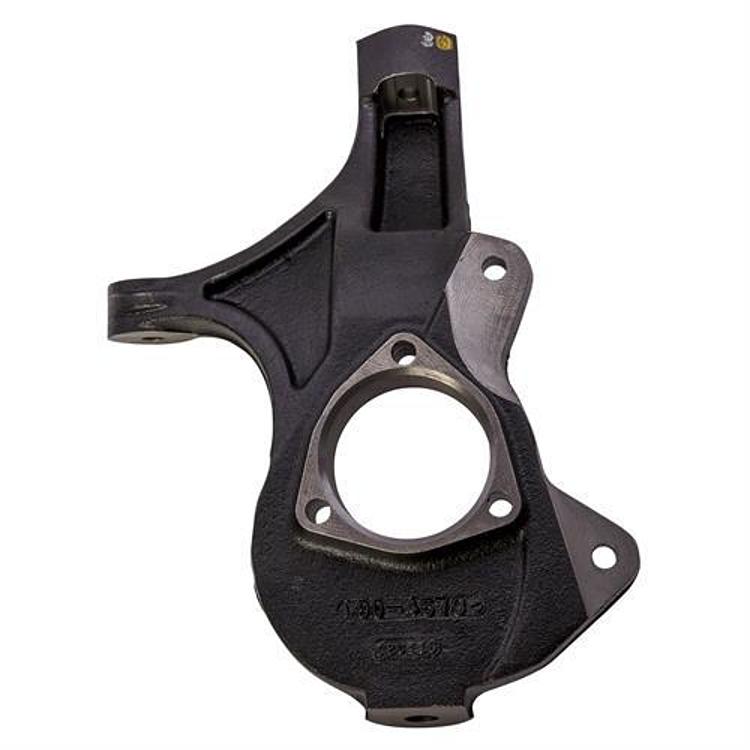

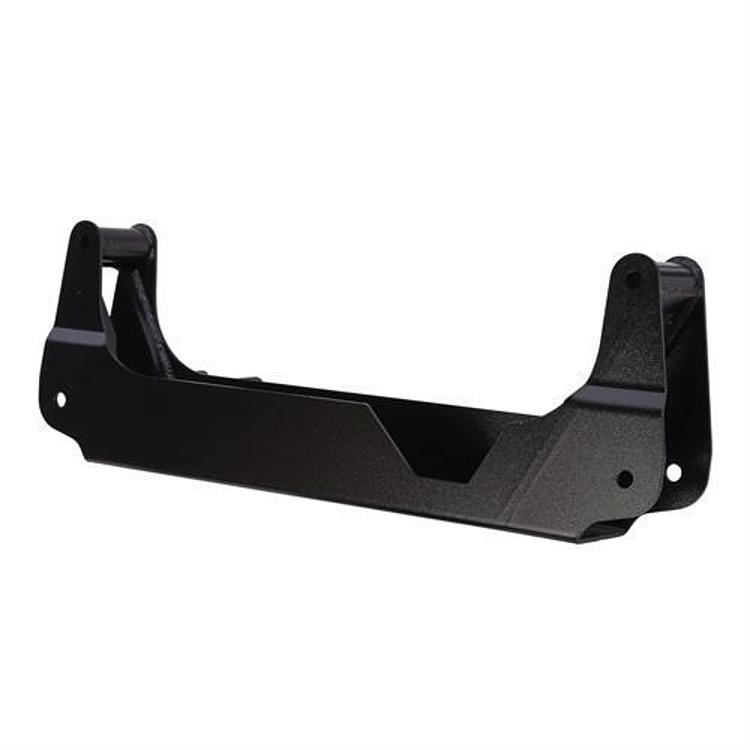

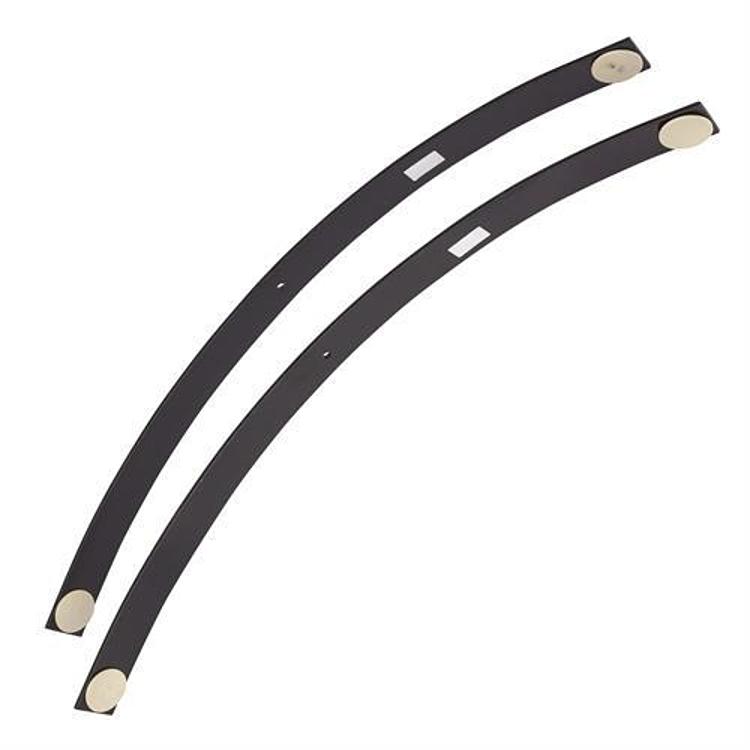

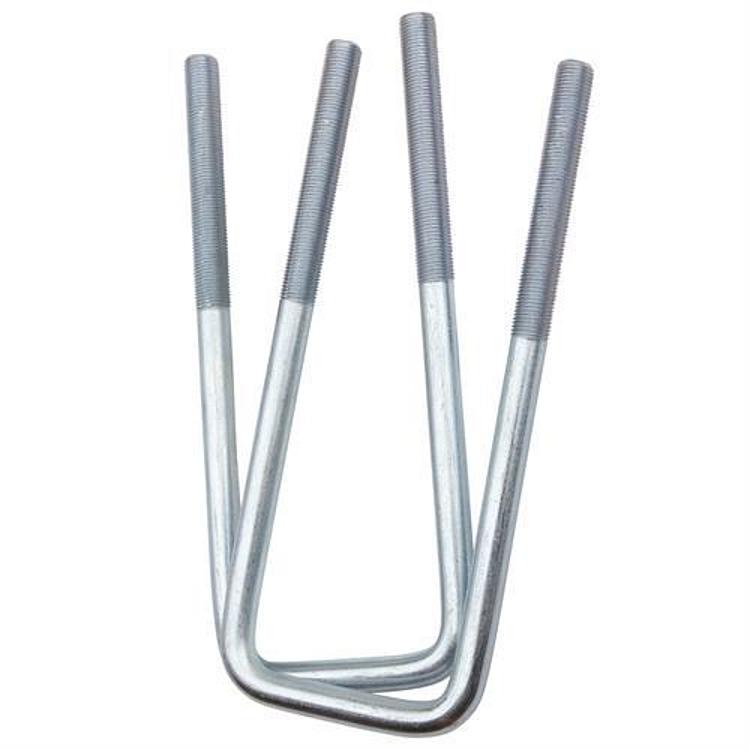

The kit uses front steering knuckles, crossmembers and drop brackets with MX 2.75 coilover shocks at the front. At the rear it uses lift blocks with add-a-leaf springs and U-bolts, along with Pro Runner shocks. A skid plate is included.
Trucks built before April 1, 2016 had cast steel or aluminum control arms, and trucks built on or after that date have stamped steel arms. The kit is designed to work with both versions.
Key features
- Lift height range of 5 to 6.99 inches
- Front steering knuckles and crossmembers

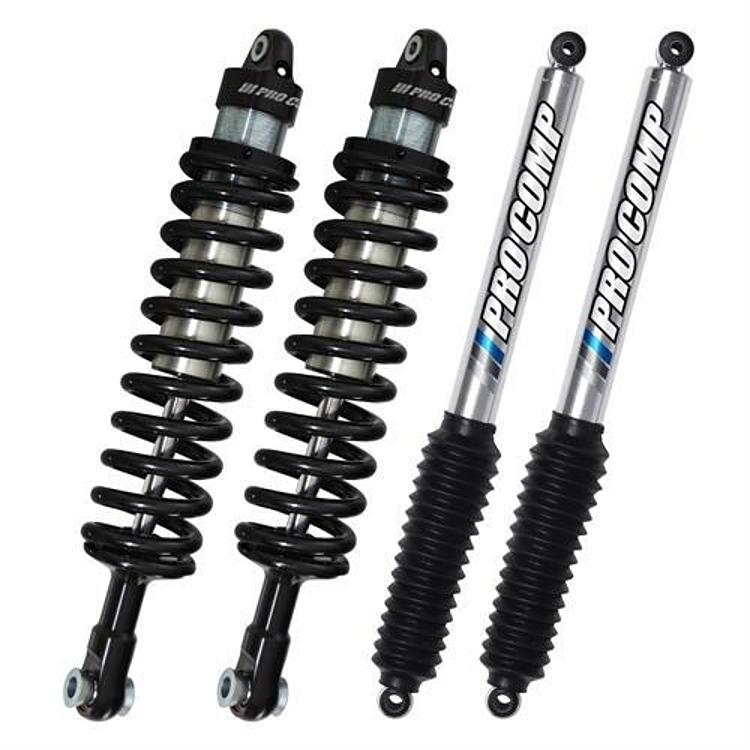

- Front MX 2.75 coilover shocks
- Rear lift blocks with add-a-leaf springs and U-bolts
- Rear Pro Runner shocks

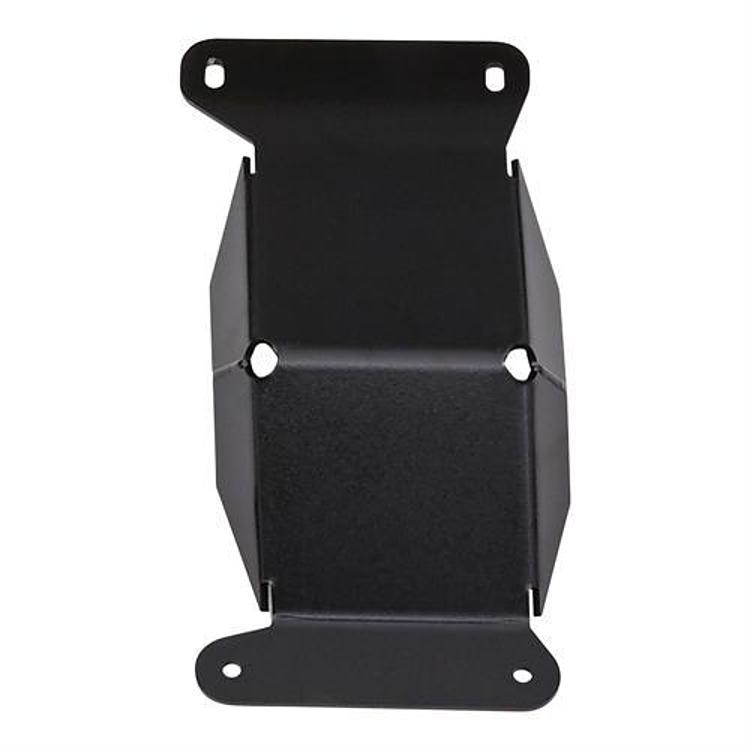

- Skid plate included
Before you install
A lift that changes front geometry and the rear axle position affects more than ride height. Steering linkage, brake lines and driveline angles all move, so a truck that was set up at stock height may need inspection after the change. Lift blocks and add-a-leaf springs shift the rear axle, which can change pinion angle and brake line tension, so those parts are worth checking first.
Choosing a truck build around a lift also means considering tire size and wheel offset. Larger tires can rub at full steering lock or in suspension travel, and trimming may be needed. Skid plates protect the lower components, but they do not change the lift geometry, so they work best alongside a full alignment and inspection.
- Check brake lines and hoses for stretch after the lift
- Inspect U-bolts and block hardware after the first drives
- Confirm tire clearance at full steering lock
- Re-check the front alignment and driveline angles
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1171BPX |
| UPC | 70000779561 |
| Lift | 6 inches, stage 1 |
| Suspension type | Coilover |
| Front shocks | MX2.75 coilover |
| Rear lift component | Block and U-bolt |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2014-2018 Chevrolet Silverado 1500 and the 2014-2018 GMC Sierra 1500 across their trim levels.
Silverado 2500 and 3500 models and 1500 trucks from other years are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit changes the front geometry and the rear axle position, so have the alignment and driveline angles checked after installation.
What’s included

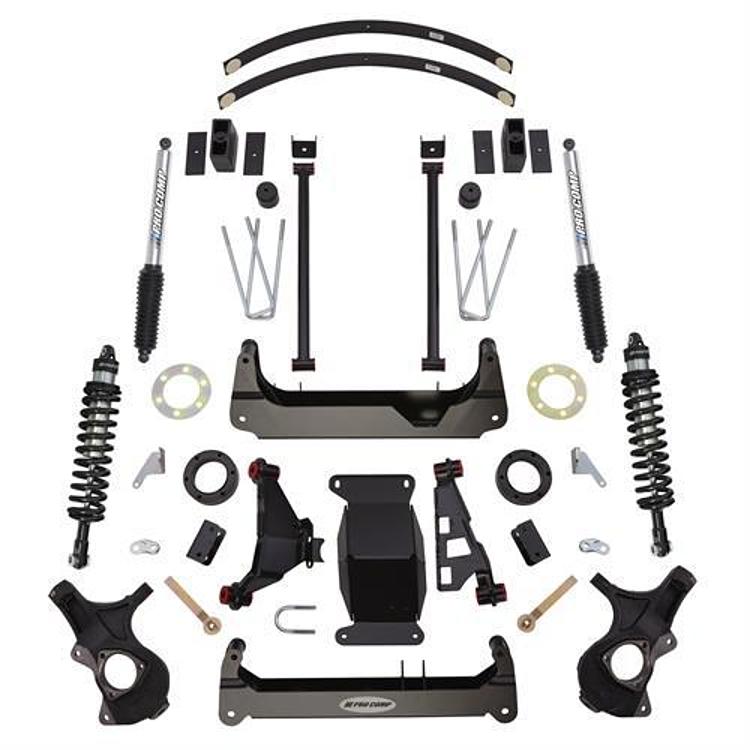

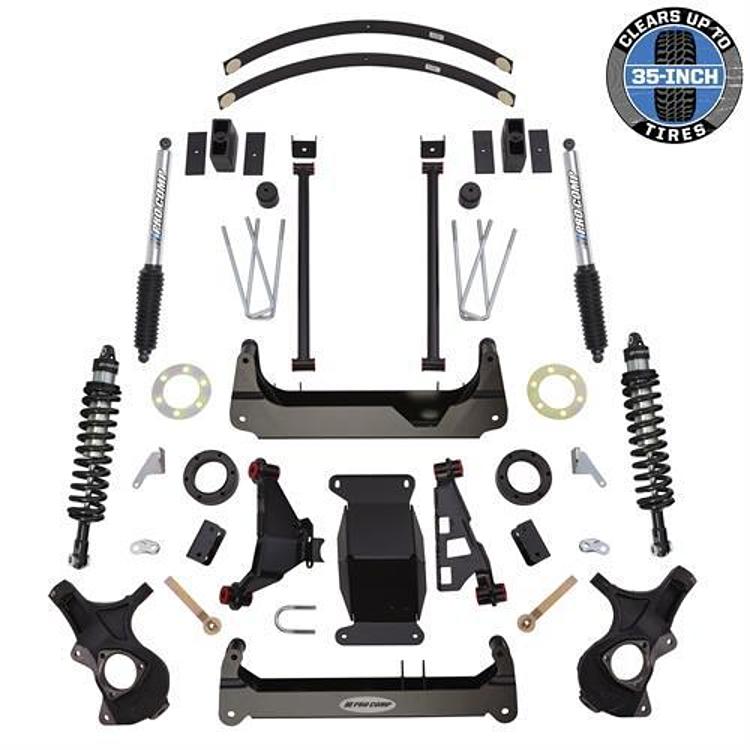

The kit includes front steering knuckles, crossmembers, drop brackets, front MX 2.75 coilover shocks, a skid plate, rear lift blocks with add-a-leaf springs and U-bolts, and rear Pro Runner shocks.
