Pro Comp 5 Inch Lift Kit with Rear ES9000 Shocks – K1174B

Pro Comp Suspension

Shop Chevrolet Colorado Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5-inch lift for 2015-2017 Chevrolet Colorado and GMC Canyon
  • Accommodates 33-inch tires with minor trimming
  • Extended steering knuckles keep factory geometry
  • Rear ES9000 shocks and front strut extension included

Description

Overview

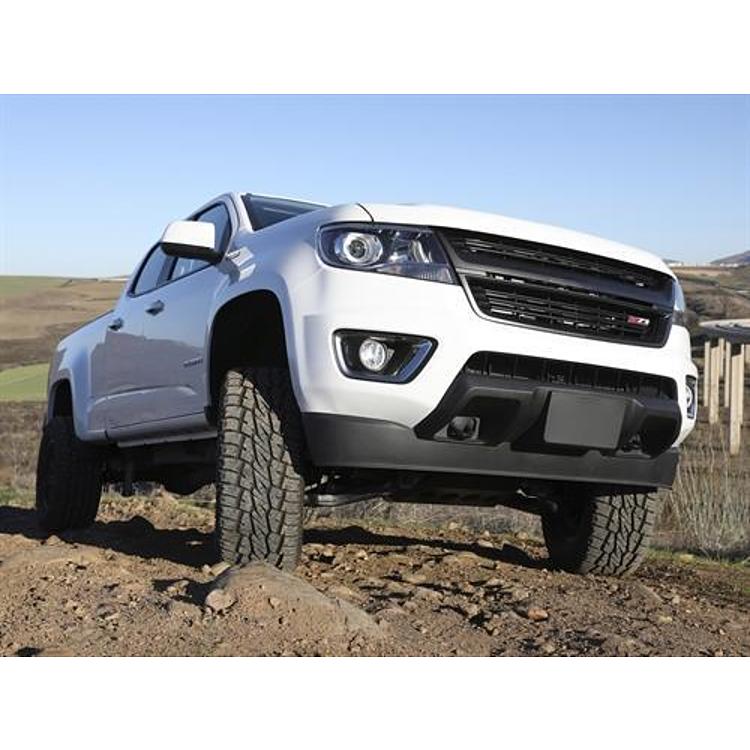

The Pro Comp 5 Inch Lift Kit with Rear ES9000 Shocks, part number K1174B, is a 5-inch suspension lift for the 2015-2017 Chevrolet Colorado and GMC Canyon in 2WD and 4WD form. It works with gas and diesel engines and gives enough height to run 33-inch tires with minor trimming.

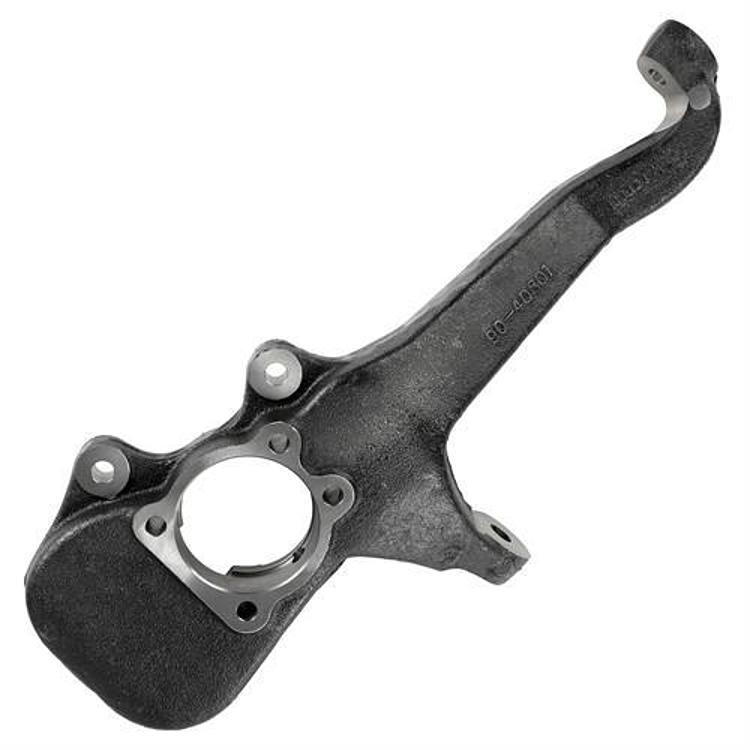

The kit uses a bracket and knuckle design with extended steering knuckles, which Pro Comp says keeps the factory steering geometry. A front strut extension and rear ES9000 shocks are included, along with heavy-duty replacement tie rods and a protective skid plate. A stainless steel backing plate is part of the front cross member.

The kit is FMVSS 126 compliant and works with factory electronic stability control. It does not require clocking the transfer case and involves less cutting than comparable lift kits.

Key features

  • 5-inch lift, stage 1
  • Extended steering knuckles that keep factory geometry
  • Heavy-duty replacement tie rods

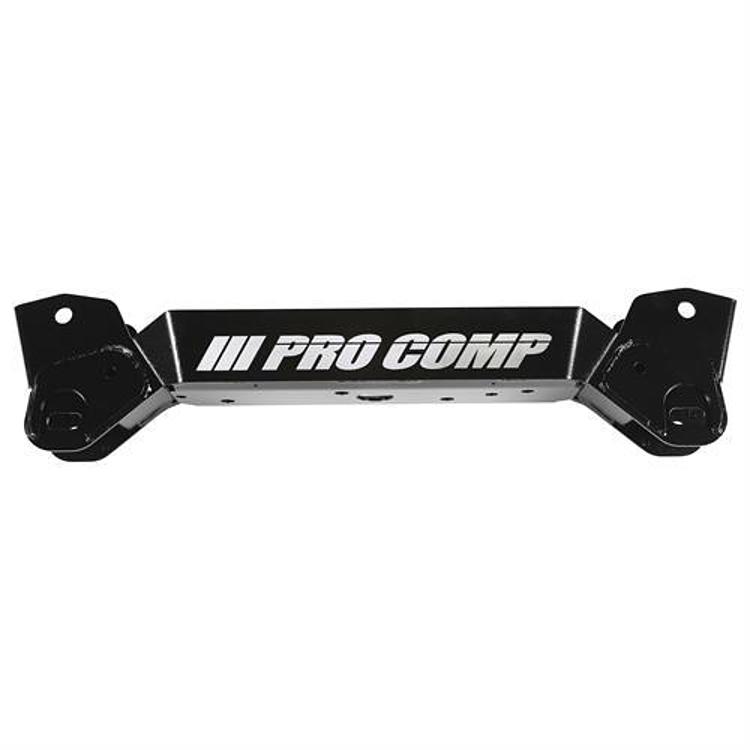

  • Stainless steel backing plate on the front cross member
  • Front strut extension and rear ES9000 shocks

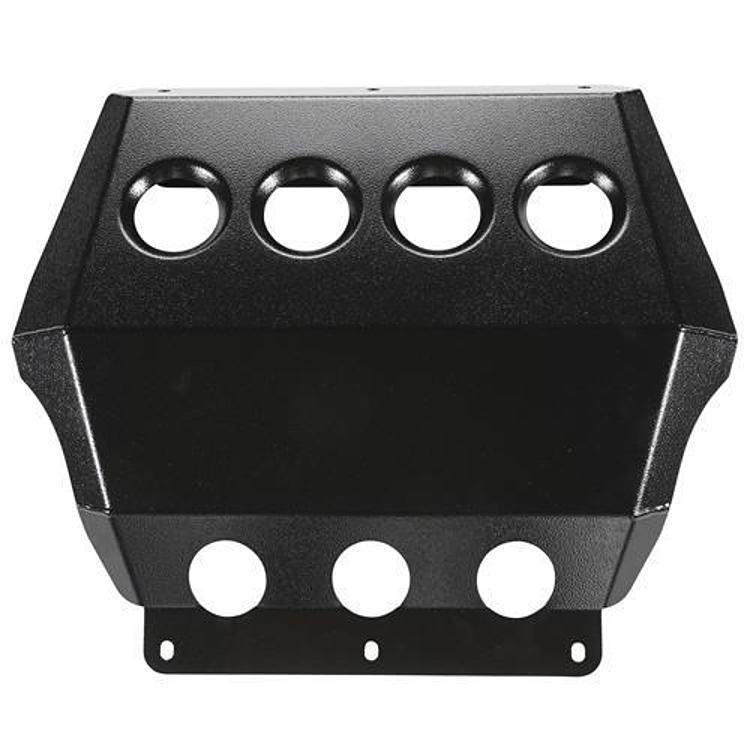

  • Protective skid plate
  • No need to clock the transfer case

Planning a 33-inch tire fit

Moving to larger tires changes gearing, weight and the way the drivetrain loads the suspension. Tire clearance depends on the lift, the wheel offset and the amount of trimming done during the install, so plan those together instead of one at a time. Confirm clearance at full steering lock and full suspension travel once everything is assembled.

Extended steering knuckles and a bracket design keep the steering geometry in place, but any change at the front end still needs an alignment. The steering linkage, ball joints and wheel bearings deserve a look before the lift goes on, since they will see different angles than before. Heavy-duty tie rods are worth checking for fit and torque once the kit is complete.

  • Check wheel offset before ordering tires
  • Inspect wheel bearings and ball joints before installing
  • Re-check the alignment after the first drive
  • Recheck tire clearance after any tire change

Specifications

Brand Pro Comp Suspension
Part number K1174B
UPC 700008450661
Lift 5 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Bracket and knuckle

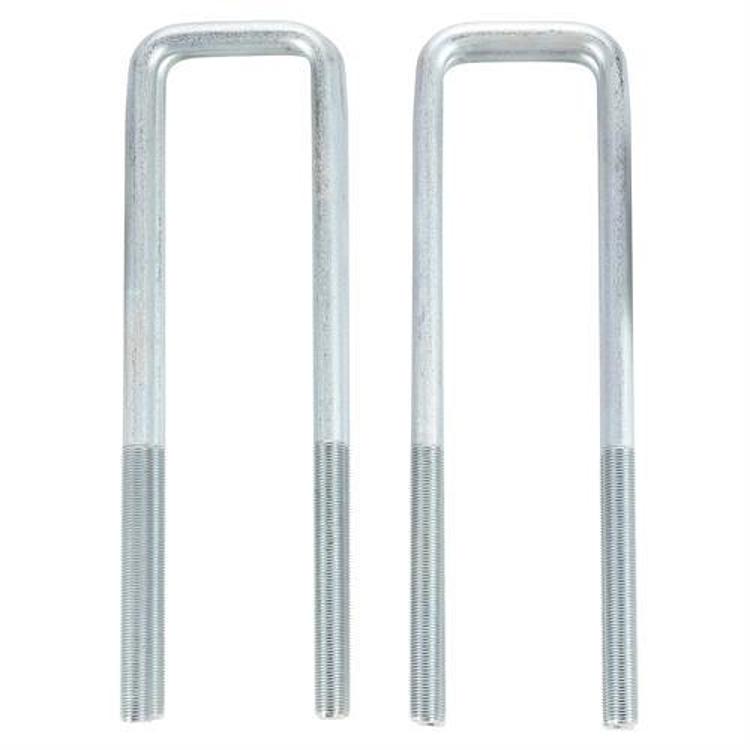

Rear lift method Lift blocks and U-bolts

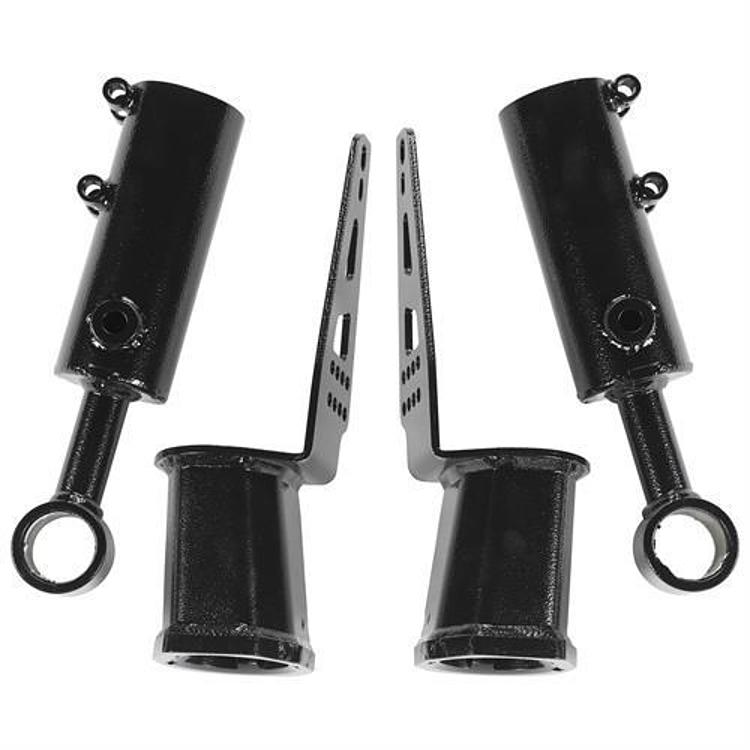

Front shocks ES9000 (front strut extension)
Tire clearance 33-inch tall tires with minor trimming

Vehicle fitment

It fits the 2015-2017 Chevrolet Colorado (Base, LT, WT, Z71 and ZR2) and the 2015-2017 GMC Canyon (Base, Denali, SL, SLE and SLT).

The 2014 and earlier and 2018 and later Colorado and Canyon are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pro Comp says 33-inch tires fit with minor trimming, so plan for that step during installation. The kit changes the front geometry, so have the alignment checked afterward.

What’s included

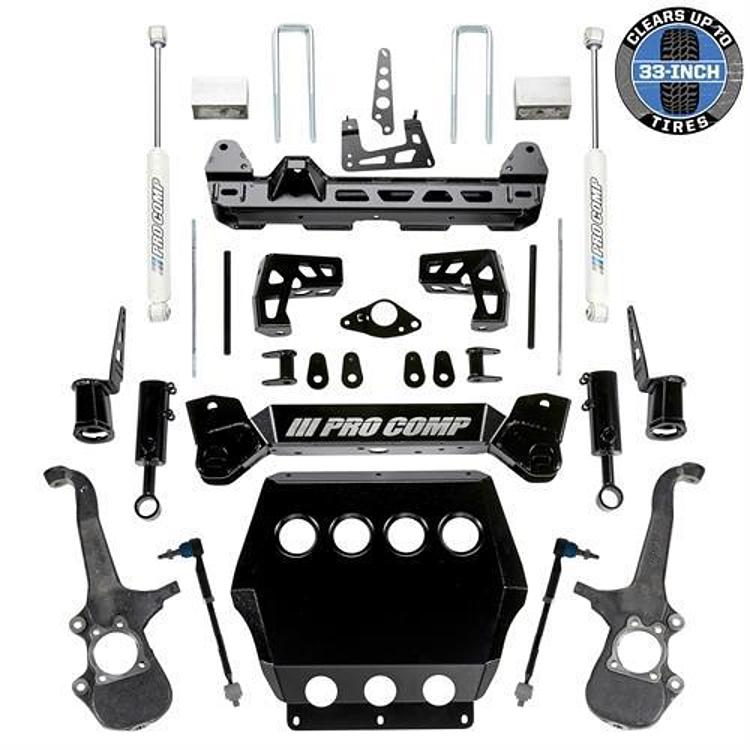

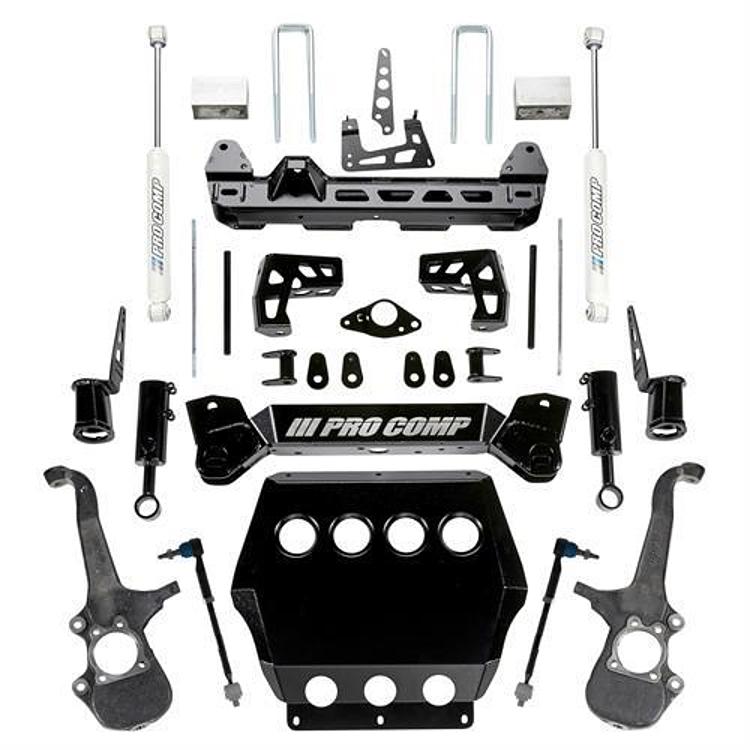

The kit includes the bracket and knuckle assembly, a front strut extension, rear ES9000 shocks, heavy-duty replacement tie rods, and a protective skid plate. The stainless steel backing plate is part of the front cross member assembly.

SKU: EXPK1174B Category:

Specification

Shipping weight 232.30 lbs
Package dimensions 48.00 × 24.00 × 23.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Colorado2015–2017Base, LT, WT, Z71, ZR2
GMC Canyon2015–2017Base, Denali, SL, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1174B fit a 2016 Chevrolet Colorado?

Yes. It fits the 2015-2017 Chevrolet Colorado, and 2016 falls within that range. The trims covered include Base, LT, WT, Z71 and ZR2.

Will it clear 33-inch tires?

Yes, with minor trimming. The kit accommodates 33-inch tall tires after minor trimming, so plan that step during installation. Check tire clearance once the lift is complete.

Is the kit compatible with stability control?

Yes. The kit is 100 percent compatible with factory electronic stability control. It is FMVSS 126 compliant, so it meets that standard.

Does this kit need the transfer case clocked?

No. The kit does not require clocking the transfer case during installation, so that step can be skipped. Confirm your vehicle's year, model and trim before ordering.

Do the shock bushings need checking after the lift?

Yes. Shock bushings and mounts carry load every time the suspension moves, and they can loosen or crack over time. Inspect them at each service and after rough trail use, and replace any that are torn or worn.
