Pro Comp 4 Inch Lift Kit with ES3000 Shocks – K5054B

Pro Comp Suspension

Shop Toyota Pickup Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch Stage 1 kit for 1986–1995 Toyota 4Runner and Pickup
  • Steering knuckle spacers with front and rear crossmembers and front sway bar links
  • Bump stop extensions and upper control arm mount brackets
  • Rear block and U-bolt kit with ES3000 front and rear shocks

Description

Overview

The Pro Comp K5054B is a 4-inch Stage 1 spacer lift kit with ES3000 front and rear shocks for the 1986–1995 Toyota 4Runner and Toyota Pickup. It uses steering knuckle spacers and front and rear crossmembers, and a rear block and U-bolt kit lifts the back of the truck.

Bump stop extensions and upper control arm mount brackets are included, and the front sway bar links are part of the front package. The lift height range is 3 to 4.99 inches.

Key features

  • 4-inch lift height from a Stage 1 kit
  • Steering knuckle spacers
  • Front and rear crossmembers
  • Front sway bar links
  • Bump stop extensions
  • Upper control arm mount brackets

Upper control arms and bump stops

Upper control arm mount brackets change where the arm attaches to the frame, which alters caster, pinion angle and the way the axle moves through its travel. Because older frames can flex or corrode, the brackets and their welds deserve a close look before the kit goes on. Bump stop extensions limit travel at full compression and protect the shocks and springs from bottoming out.

On an older truck, the rubber on bushings and bump stops often has hardened, so inspect them and replace any that are cracked. Confirm the bump stops clear the springs at full travel, and check the lines and steering shaft for clearance. After driving, look for shifted bolts, fresh grease on the joints and any uneven tire wear across the front axle.

Specifications

Brand Pro Comp Suspension
Part number K5054B
UPC 614901207187
Lift height 4 inch (lift height range 3 to 4.99 inches)
Lift kit stage Stage 1
Suspension type Spacer
Front lift Steering knuckle spacers
Rear lift Lift blocks and U-bolts
Front shocks ES3000
Rear shocks ES3000

Vehicle fitment

It fits the 1986–1995 Toyota 4Runner in the DLX and SR5 versions, and the 1986–1995 Toyota Pickup in the Base, Base Turbo, DLX, SR5 and SR5 Turbo versions.

The list covers the 1986 through 1995 model years only, so the 1985 and earlier trucks and the 1996 and newer generation are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Upper control arm mount brackets and steering knuckle spacers change the front suspension geometry, so have the alignment checked after installation, and confirm the bump stops clear the springs at full travel.

What’s included

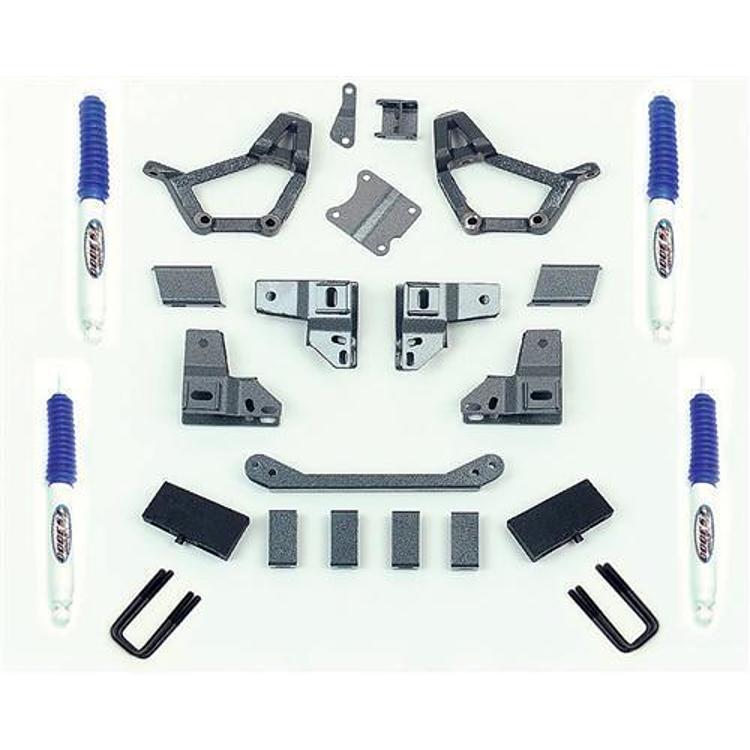

The kit includes steering knuckle spacers, front and rear crossmembers, front sway bar links, bump stop extensions, upper control arm mount brackets, the rear block and U-bolt kit, and ES3000 front and rear shocks.

SKU: EXPK5054B Category:

Specification

Shipping weight 100.60 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1986–1995DLX, SR5
Toyota Pickup1986–1995Base, Base Turbo, DLX, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K5054B fit a 1995 Toyota Pickup?

Yes. It fits the 1986 through 1995 Toyota Pickup in the Base, Base Turbo, DLX, SR5 and SR5 Turbo versions, so a 1995 model year is within the fitment.

Does the K5054B fit a 1996 4Runner?

No. The list covers 1986 through 1995 only, so the 1996 and later 4Runner is outside the entry. Check the year on your truck before ordering.

Is the kit a 4-inch lift?

Yes. The product name and specifications table both give a 4-inch lift, within the range of 3 to 4.99 inches.

Should upper control arm bushings be replaced during a lift?

Replacing them is a good idea on an older truck, because worn bushings change the alignment and can loosen under the new geometry. Inspect each bushing for cracks, sagging or play, and replace any that show wear before setting the alignment.
