Overview
The Pro Comp 5-inch Stage I Lift Kit with Rear PRO-X Shocks, part number EXPK1174T (kit K1174T), is a stage 1 suspension lift for the Chevrolet Colorado and GMC Canyon. It fits the 2015 to 2020 Chevrolet Colorado in the Base, LT, WT, Z71 and ZR2 versions, and the 2015 to 2021 GMC Canyon in the AT4, All Terrain, Base, Denali, Elevation, Elevation Standard, SL, SLE and SLT versions.

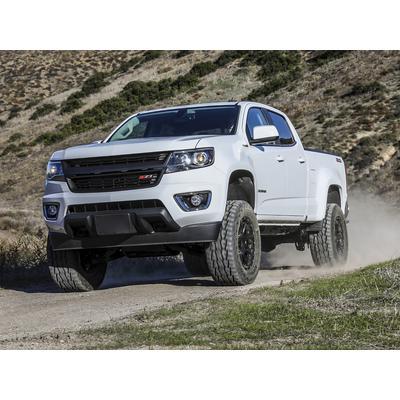

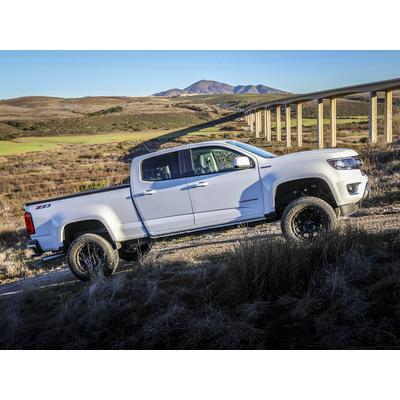

The kit gives 5 inches of stage 1 lift, with a range of 4 to 5.5 inches. The rear uses a block or spacer with a block and U-bolt component and add-a-leafs. PRO-X shocks are included at the front and the rear. It gives the stance and height to clear 33-inch tires with minor trimming.
The 5-inch lift systems for the Colorado and Canyon are compatible with factory electronic stability control.
Key features
- 5-inch stage 1 suspension lift

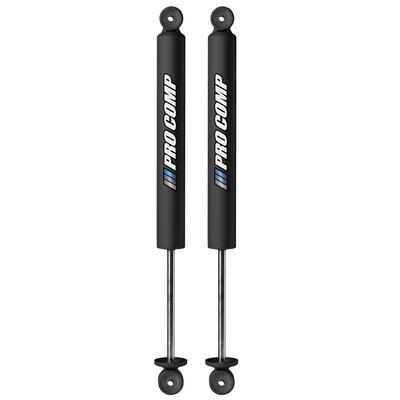

- PRO-X shocks at the front and rear, included
- Clears 33-inch tires with minor trimming
- Compatible with factory electronic stability control
- Block or spacer rear lift with add-a-leafs
Tires and stability systems
Tire size is one of the biggest factors in how a lifted truck drives. Larger tires change gearing, speedometer accuracy, braking distance and the load on wheel bearings. Choose tires that match the clearance and load rating you plan to run, and check clearance before the lift is finished.
Electronic stability control relies on wheel speed and steering inputs, so changes in tire size and ride height can affect how it reads the truck. Test stability control and traction systems on a safe road after the install. Brake lines and wiring near the lift should also be checked for stretch and rubbing.
- Check speedometer accuracy after tire changes
- Look for rubbing at full steering lock
- Inspect brake lines at full suspension travel
- Recheck alignment after the first few drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK1174T |
| Kit code | K1174T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 5 inches stage 1; range of 4 to 5.5 inches |
| Rear lift method | Block or spacer |

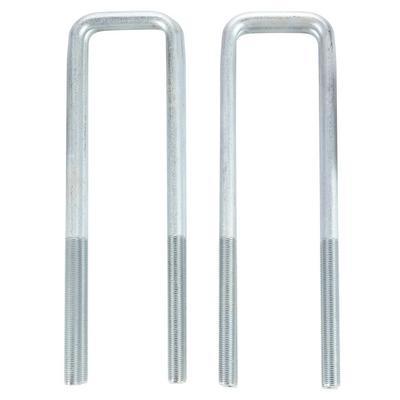

| Rear lift component | Block and U-bolt with add-a-leafs |
| Shocks included | Yes |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2015 to 2020 Chevrolet Colorado and the 2015 to 2021 GMC Canyon, in the trim packages named above.
It fits 2015 to 2020 Colorado and 2015 to 2021 Canyon models. For tires larger than 33 inches, confirm clearance for your setup before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Pro Comp says 33-inch tires need minor trimming to clear. Check the clearance with the tires you plan to run before the install is finished.

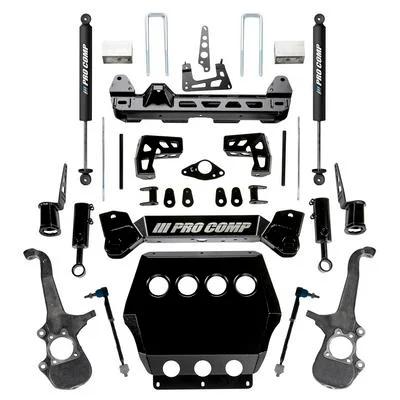

What’s included
The 5-inch stage 1 lift kit with PRO-X front and rear shocks, and the block and U-bolt rear components with add-a-leafs.
