Overview
The Pro Comp 4-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK4069T (kit K4069T), is a stage 1 suspension lift for the 1980 to 1989 Ford Bronco, across its Custom through XLT Lariat trims.
The kit provides 4 inches of stage 1 lift, with a listed lift height range of 4 to 5.5 inches. The rear uses an Add-A-Leaf lift, and PRO-X shocks are included at the front and the rear.
Key features
- 4-inch stage 1 suspension lift
- Add-A-Leaf rear lift

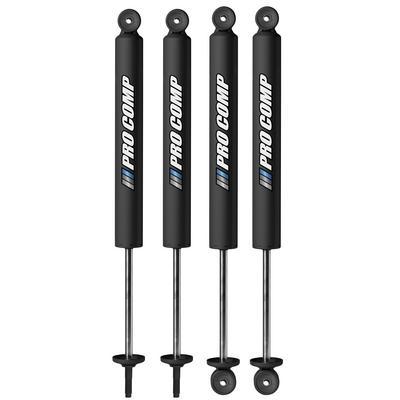

- PRO-X shocks at the front and rear, included
- Lift height range of 4 to 5.5 inches
Clearance and tire choice
A 4-inch stage 1 lift makes room for larger tires, but clearance depends on the tire’s overall diameter, width and offset, along with fender and body clearance on your particular Bronco. Measure before buying tires, and remember that taller tires change gearing and speedometer reading. Bigger tires also add load to the drivetrain, so joints and wheel bearings deserve attention.
On the trail, the lift raises the center of gravity slightly, which is worth considering on side slopes. Consider bump stops and fender trimming if the tires rub at full compression. Check tire pressures and wear regularly, since larger tires can wear differently on this type of setup.
- Measure fender clearance at full compression
- Check the speedometer after changing tire size
- Inspect wheel bearings after larger tires
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK4069T |
| Kit code | K4069T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Rear lift method | Add-A-Leaf |
| Rear lift component | Add-A-Leaf |
| Shocks included | Yes |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Fit type | Direct fit |
Vehicle fitment
It is a direct fit for the 1980 to 1989 Ford Bronco in the Custom, Eddie Bauer, Ranger XLT, XLS, XLT and XLT Lariat versions.
The list does not include the 1979 and earlier Bronco or the 1990 and newer models, which are covered by a different listing. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The Add-A-Leaf rear lift changes the rear ride height and the driveline angle, so the driveline and alignment should be checked after installation.
What’s included
The 4-inch stage 1 lift kit with PRO-X front and rear shocks, and the Add-A-Leaf rear component.
