Pro Comp 6″ Lift Kit with PRO-M Shocks – K1176M

Pro Comp Suspension

Shop GMC Sierra 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2019 to 2021 Silverado 1500 Trail Boss models and 2019 to 2022 Sierra 1500 pickups, plus the 2022 Sierra 1500 Limited
  • 6-inch stage 1 lift with PRO-M shocks
  • Block and U-bolt rear lift
  • Not for vehicles with factory base suspension packages

Description

Overview

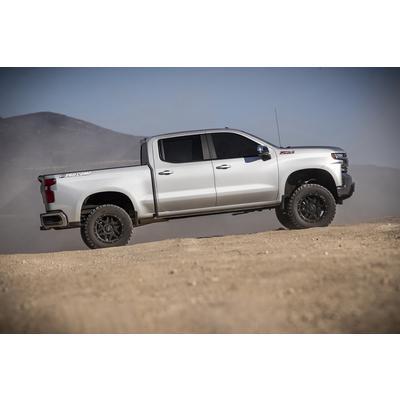

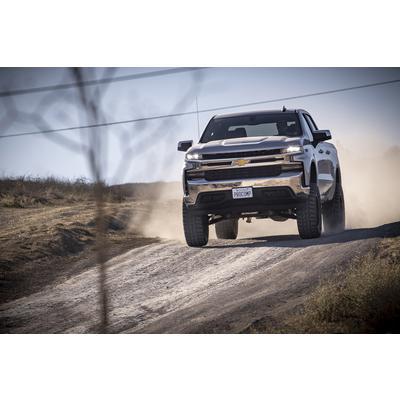

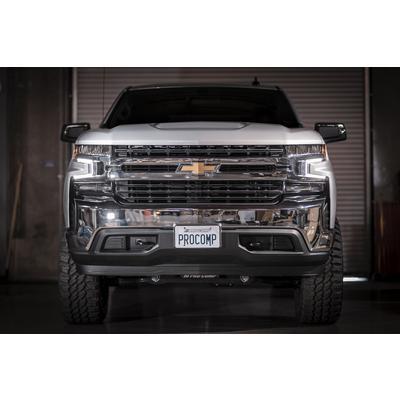

The Pro Comp 6-inch Lift Kit with PRO-M Shocks, part number EXPK1176M (kit K1176M), is a stage 1 suspension lift for the 2019 to 2021 Chevrolet Silverado 1500 Custom Trail Boss and LT Trail Boss, the 2019 to 2022 GMC Sierra 1500, and the 2022 Sierra 1500 Limited. It fits the Sierra in the AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE and SLT versions.

The 2019 GM 1500 uses a new chassis design. The 6-inch lift is engineered for 20-inch or larger wheels and 35-inch all-terrain tires. Extended steering knuckles keep factory steering geometry, 3/16-inch steel front lower crossmembers and a differential skid plate are included, and upper strut spacers keep the factory-tuned struts.

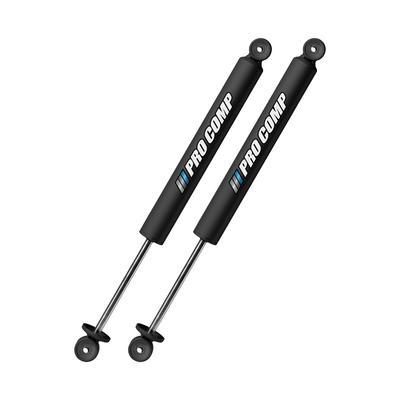

The rear uses block or spacer lift components with a block and U-bolt setup. PRO-M shocks are fitted at the front and rear and come with the kit.

Key features

  • 6-inch stage 1 suspension lift

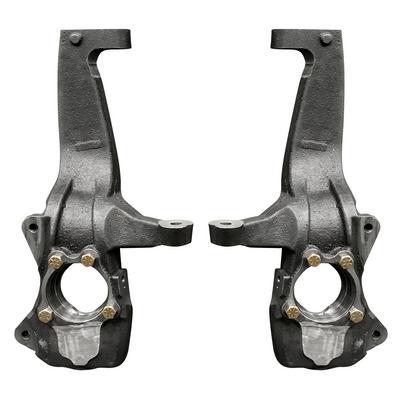

  • Extended steering knuckles that keep factory steering geometry

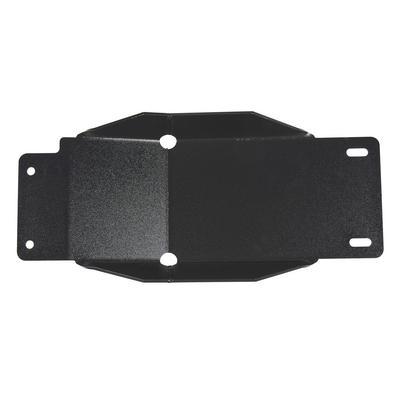

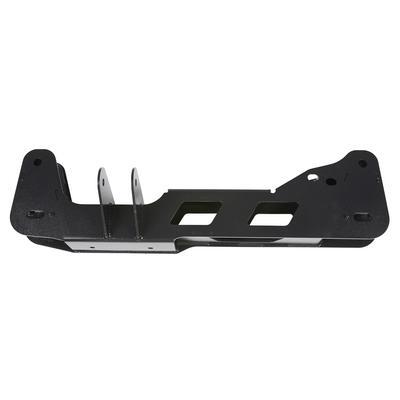

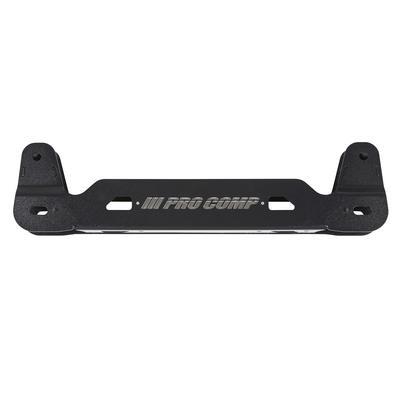

  • Steel front lower crossmembers and differential skid plate

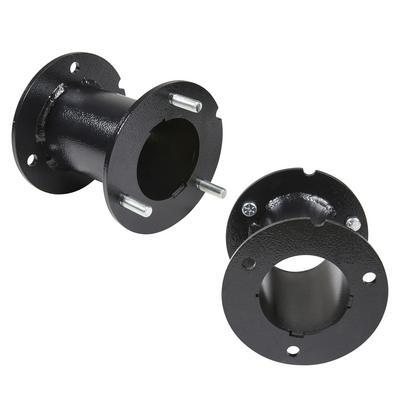

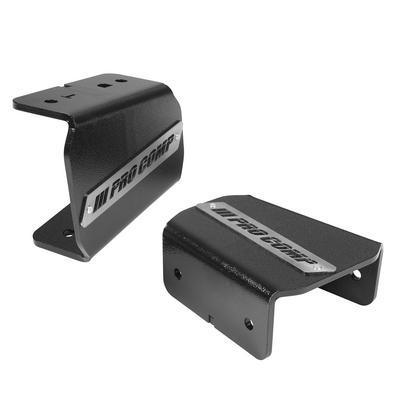

  • Upper strut spacers that keep the factory-tuned struts
  • PRO-M shocks, included

Checking the factory setup

Trail Boss and similar off-road trims are built with their own factory suspension tuning, so the starting height and ride control setup often differ from a standard pickup. A lift that works on one trim may not sit the same way on another. Comparing the truck’s factory options against the kit before installation helps avoid surprises with fitment and ride quality.

Upper strut spacers and extended knuckles change how the front suspension moves, so they affect bump travel and steering feel. Ride control options can also interact with the shocks, which is worth considering if the truck sees rough trails. After installation, check the steering, alignment and brake line routing, and inspect the rear block and U-bolts at regular intervals.

  • Verify the factory suspension package and options
  • Compare tire size and wheel width with fender clearance
  • Check brake lines after installation
  • Look for rubbing at full steering lock

Specifications

Brand Pro Comp Suspension
Part number EXPK1176M
Kit code K1176M
Suspension type Lift kit, stage 1
Lift height 6 inches stage 1; range 6 to 7 inches
Rear lift method Block or spacer

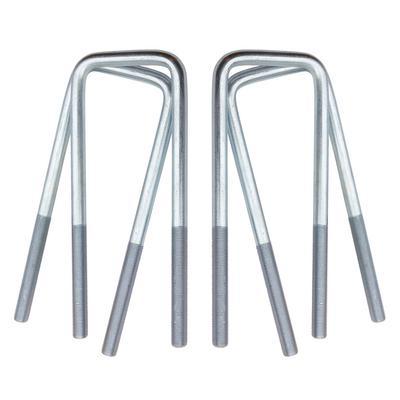

Rear lift component Block and U-bolt
Shocks included Yes
Front shocks PRO-M
Rear shocks PRO-M
Fit type Direct fit

Vehicle fitment

It fits the 2019 to 2021 Chevrolet Silverado 1500 Custom Trail Boss and LT Trail Boss, the 2019 to 2022 GMC Sierra 1500 in the trim packages named above, and the 2022 GMC Sierra 1500 Limited.

Confirm fit for your vehicle’s year, model and trim before ordering. It is not for vehicles with factory base suspension packages, or for GMC Denali trucks with Adaptive Ride Control.

Installation notes

Confirm the factory suspension package on the truck before the install, since Pro Comp excludes trucks with base suspension packages and GMC Denali trucks with Adaptive Ride Control.

What’s included

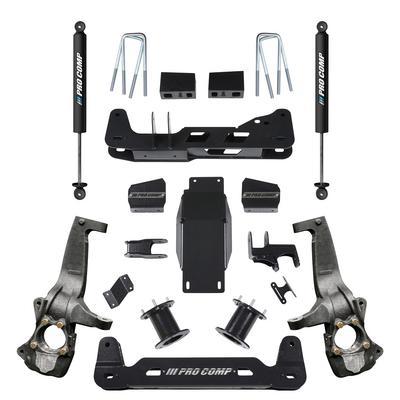

The 6-inch stage 1 lift kit with PRO-M front and rear shocks, the extended steering knuckles, the front crossmembers and differential skid plate, and the upper strut spacers.

SKU: EXPK1176M Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002019–2021Custom Trail Boss, LT Trail Boss
GMC Sierra 15002019–2026AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE, SLT
GMC Sierra 1500 Limited2022AT4, Denali, Elevation, Pro, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK1176M fit a 2020 Chevrolet Silverado 1500 Trail Boss?

Yes. It fits the 2019 to 2021 Chevrolet Silverado 1500 LT Trail Boss and Custom Trail Boss models, and 2020 falls within that range. Confirm the trim before ordering.

Can it be used on a truck with the base suspension?

No. The kit is not for vehicles with factory base suspension packages. Check the factory suspension package on the truck before starting, since GMC Denali trucks with Adaptive Ride Control are also excluded from this kit.

Does it fit a 2022 GMC Sierra 1500 Denali?

It fits the 2019 to 2026 GMC Sierra 1500 in the Denali version, but it is not for Denali trucks with Adaptive Ride Control. Confirm the Adaptive Ride Control status before ordering, and confirm the trim and year as well.

How do I know if the shocks need replacement after a lift?

Check the shocks for leaks, mounting wear and noise over bumps. Shocks that have been in use for a long time may not handle the new suspension height well. Confirm the installed shocks suit the setup before replacing any other shock.
