Pro Comp 2.5 Inch Stage I Lift Kit with ES3000 Shocks – K1021

Pro Comp Suspension

Shop Chevrolet K1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.5-inch stage I lift with leaf springs and U-bolts at the front
  • ES3000 front and rear shocks
  • Steering correction not needed
  • Fits 1987-1992 Chevrolet and GMC trucks

Description

Overview

The Pro Comp 2.5 Inch Stage I Lift Kit with ES3000 Shocks, part number K1021, is a 2.5-inch lift for 1987-1992 Chevrolet and GMC trucks. The front uses leaf springs and U-bolts, and the rear uses a block and U-bolt kit. The kit includes ES3000 shocks front and rear.

No steering correction is needed with this kit, so no steering arm is included. It includes brake line extension brackets, and shock boots are not included. Maximum tire size is 33.

Key features

  • 2.5-inch stage I lift
  • Front leaf springs and U-bolts
  • Steering correction not needed
  • Brake line extension brackets
  • Rear block and U-bolt kit
  • ES3000 front and rear shocks

Leaf spring lift considerations

A leaf spring lift raises the body by changing how the axle sits under the springs. The springs carry the vehicle weight, so the way load is shared between the front and rear changes once the height is raised. Many owners find the ride feels firmer when the truck is loaded, and the shocks do more of the work over rough ground.

Because the axle moves relative to the frame, U-bolts can loosen after the first trips. Re-torque them after the first few drives and check them again at regular service intervals. Brake lines and the parking brake cable may need a look after a lift, since the wheel and axle position changes slightly.

Tire and wheel choice affects rubbing, so measure clearance at full steering lock and over bumps before a long trip.

  • Re-torque U-bolts after initial break-in
  • Inspect brake lines for stretch or rubbing
  • Check driveshaft angle after the height change

Specifications

Brand Pro Comp Suspension
Part number K1021
UPC 614901122145
Lift height 2.5 inches, stage I
Front suspension Leaf springs and U-bolts
Steering correction Not needed
Rear lift Block and U-bolt kit
Shocks ES3000, front and rear (shock boots not included)
Maximum tire size 33
Fitment Direct fit

Vehicle fitment

It fits the 1987-1991 Chevrolet Blazer, the 1988-1992 Chevrolet K1500, the 1987 Chevrolet V10, the 1987-1988 Chevrolet V10 Suburban, the 1989-1991 Chevrolet V1500 Suburban, the 1987-1991 GMC Jimmy, the 1988-1991 GMC K1500, the 1987 GMC V1500 and the 1987-1991 GMC V1500 Suburban.

Trucks from 1986 and earlier and from 1993 on are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because steering correction is not needed, no steering change is part of this kit. A front alignment is still a good idea after installing a leaf spring lift.

What’s included

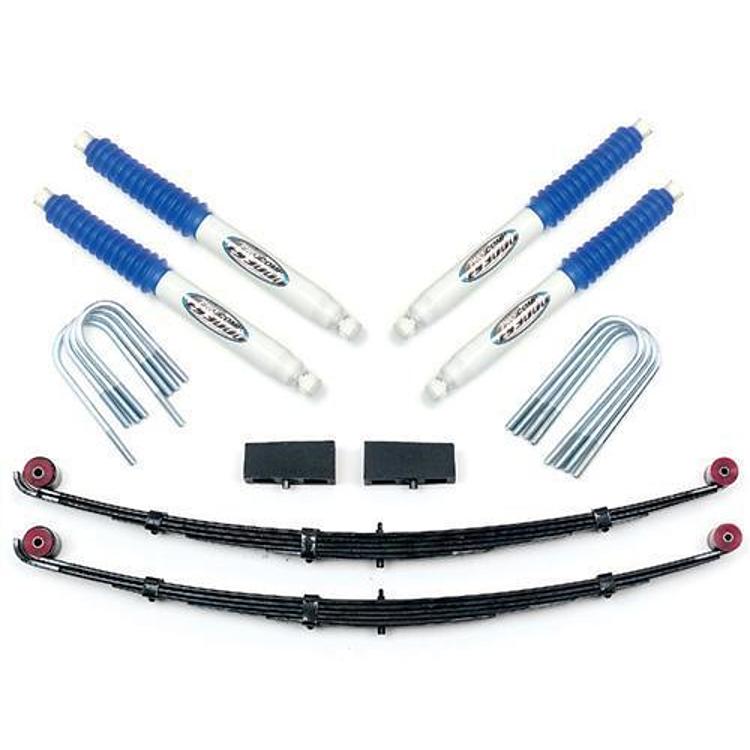

The kit includes front leaf springs and U-bolts, brake line extension brackets, a rear block and U-bolt kit, and ES3000 shocks. Shock boots are not included.

SKU: EXPK1021 Category:

Specification

Shipping weight 136.14 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Blazer1987–1991Custom Deluxe, Scottsdale, Silverado
Chevrolet K15001988–1992Cheyenne, Scottsdale, Silverado, Sport, WT
Chevrolet V101987Custom Deluxe, Scottsdale, Silverado
Chevrolet V10 Suburban1987–1988Custom Deluxe, Scottsdale, Silverado
Chevrolet V1500 Suburban1989–1991Scottsdale, Silverado
GMC Jimmy1987–1991Base, Sierra Classic
GMC K15001988–1991Sierra, Sierra SLE, Sierra SLX
GMC V15001987Base, High Sierra, Sierra Classic
GMC V1500 Suburban1987–1991Base, High Sierra, SLE, Sierra Classic

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1021 fit a 1989 Chevrolet V1500 Suburban?

Yes. The kit fits the 1989-1991 Chevrolet V1500 Suburban, so a 1989 model falls within the fitment range. Confirm fit for your vehicle's year, model and trim before ordering.

Does the K1021 need a steering correction?

No. The K1021 does not need a steering correction, so the kit does not include a steering arm. A front alignment is still a good idea after a leaf spring lift is installed.

How much lift does the K1021 add?

It is a 2.5-inch stage I lift with leaf springs and U-bolts at the front and a block and U-bolt kit at the rear.

How can I tell when the leaf springs or shocks need replacing?

Sagging springs, a leaning body, or a bouncy ride over small bumps are common signs of worn springs or shocks. Look for oil on the shock bodies, cracked spring leaves, and bushings that feel loose. Inspect these parts every few months, especially after off-road use.
