Overview

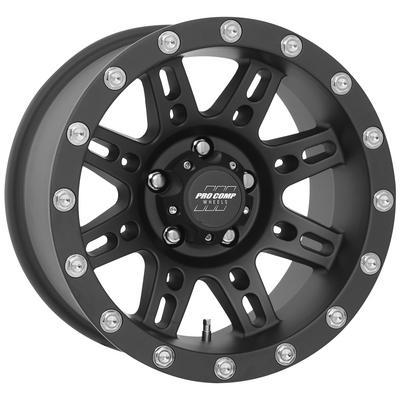

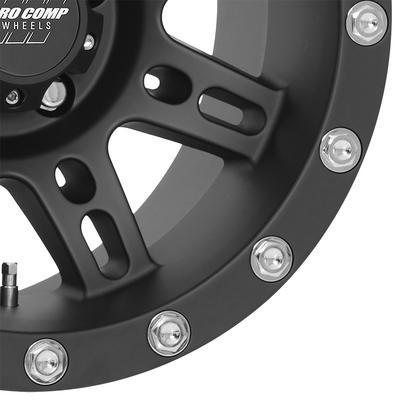

The Pro Comp PXA7031-6865 is a 16×8 split-spoke aluminum wheel from the 31 Series Stryker line, in a matte black finish. It uses a 5 on 4.5 bolt pattern, a center bore of 83, a 0 offset and a 4.5 backspacing.
This 16-inch Stryker is one of five diameters in the series. The line uses cast aluminum wheels made with low-pressure casting, and this model comes in matte black.
The 5 on 4.5 pattern and 83 center bore need to match the hub. The matte black split-spoke face and aluminum construction are the features listed, and the 0 offset places the face near the centerline of the wheel.
Choose a tire that suits a 16-inch rim that is 8 inches wide. Pro Comp describes its wheels as low-pressure cast, and this one is listed in the matte black finish for the Stryker series.
The 4.5 backspacing is the inner measurement to compare with the suspension and brake parts on the truck before the wheel is installed.
Confirm the 5 on 4.5 bolt pattern before ordering, since this wheel does not fit a 5 on 5 hub. The 0 offset and 4.5 backspacing are listed in the specifications, and they set how far the flat black split-spoke face sits from the mounting surface. Compare the backspacing with your truck’s inner clearance before choosing tires.
Key features
- Split-spoke face
- Matte black finish
- 5 on 4.5 bolt pattern
- Center bore 83
- Offset 0
Choosing the right setup
When a wheel swap is planned, the hub match comes first. Lug pattern and center bore must agree with the truck before other choices are considered. If the wheel bore is larger than the hub, hub-centric rings can close the gap so the wheel seats on the hub rather than on the studs alone. Lug nuts should suit the seat style of the wheel, and their thread length should be checked so they engage fully.
Inner clearance deserves the same attention. Backspacing shows how far the mounting face sits from the back edge of the wheel, which matters when a brake caliper or control arm sits close to the inside of the rim. Tire sidewall height also changes overall diameter, so a tire chosen for a 16-inch rim should be checked against the fender at full articulation, not only while parked.
- Lug seat type matched to the wheel
- Hub-centric rings for oversized bores
- Torque checked after the first trail runs
- Brake caliper clearance at full steering lock
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7031-6865 |
| Diameter | 16 inches |
| Width | 8 inches |
| Bolt pattern | 5 on 4.5 |
| Center bore | 83 |
| Offset | 0 |
| Backspacing | 4.5 |
| Style | Split spoke |
| Finish | Matte black |
| Construction | Aluminum |
| Series | 31 Series Stryker |
Vehicle fitment
Its 5 on 4.5 bolt pattern and 83 center bore must match the hub, and the 0 offset should be checked against the fender before the wheel is mounted.
Pick tires for a 16-inch rim that is 8 inches wide. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel. No center cap is included.
