Pro Comp 69 Series Vintage, 16x8 Wheel with 5 on 5 Bolt Pattern – Polished – 1069-6873

Pro Comp Alloy Wheels

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA1069-6873: 16×8 polished aluminum Vintage wheel, 69 Series Classic
  • 5 on 5 bolt pattern, center bore 108, offset -12, backspacing 4
  • Holes style face, low-pressure cast construction
  • No vehicle is named for this wheel

Description

Overview

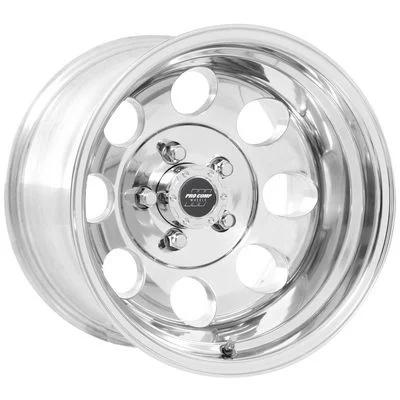

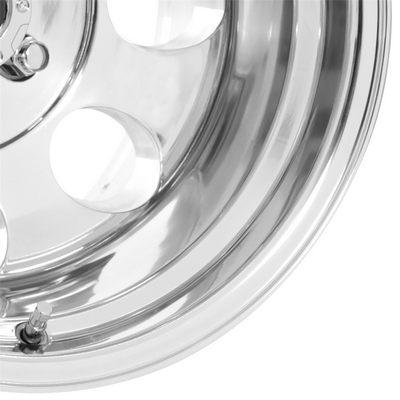

The Pro Comp PXA1069-6873 is a 16×8 polished aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style face and a 5 on 5 bolt pattern. It is sold as one wheel with a center bore of 108 and an offset of -12.

Pro Comp describes its Vintage alloys as low-pressure cast and combining head-turning style with light weight. This polished 8-inch-wide version has a backspacing of 4, and the brand says its high offset construction is built for brake clearance on trucks and sport utility vehicles.

Key features

  • Low-pressure cast aluminum
  • Holes style face
  • 16-inch diameter, 8-inch width
  • 5 on 5 bolt pattern
  • Center bore of 108
  • Offset -12 with 4 backspacing

Bolt patterns and hub fit

Bolt pattern is the first gate for any wheel. Five-lug patterns are common on light trucks and older SUVs, and the bolt circle must match the hub exactly. Measure from the center of one lug hole to the far edge of the hole across from it, then compare that figure with the vehicle’s hub.

The center bore and hub pilot work together. A bore that is too small will not slide onto the hub, and one that is too large can let the wheel sit off center and cause vibration. Hub-centric rings can close a gap when the bore is larger than the hub, but confirm the ring size before buying one.

Once the wheel is mounted, tighten lug nuts in a star sequence and recheck them after the first few drives. Look for wear on the studs and any sign of play at the hub, since both affect how the wheel stays put on rough trails.

  • Measure the bolt circle across opposite holes
  • Confirm center bore against the hub pilot
  • Consider hub-centric rings if the bore is larger
  • Inspect studs for wear

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA1069-6873
Series 69 Series Vintage (Classic)
Style Holes
Construction Aluminum
Finish Polished
Diameter 16 inches
Width 8 inches
Bolt pattern 5 on 5
Center bore 108
Offset -12
Backspacing 4

Vehicle fitment

No vehicle is named for this wheel, so it is a universal design rather than a fit for one truck or Jeep. A 5 on 5 hub with a 108 center bore is the first match, and the -12 offset needs a clearance check against the vehicle.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use a five-lug hub in a 5 on 5 layout with a matching center bore. Test-fit with the tire mounted before the vehicle sees trail use. Five lug holes on a 5 on 5 spacing and a 108 center bore are the measurements to confirm first. The 8-inch width and -12 offset move the tire outward, so the inner fender and brake caliper should be checked with the tire fitted. The 4-inch backspacing sets how far the inner lip sits behind the mounting face. Choose a tire width that suits an 8-inch rim, and test-fit at full steering lock. A wheel that does not seat on the hub pilot will not center, so measure the pilot before mounting.

What’s included

One 16×8 aluminum wheel. Confirm the lug nut and center cap situation before starting the install.

SKU: PXA1069-6873 Categories: ,

Questions & Answers

Is the PXA1069-6873 a 5 on 5 wheel?

Yes. It has a 5 on 5 bolt pattern and a center bore of 108. The offset is -12 and the backspacing is 4, so confirm each before ordering.

What finish is this polished 16x8 wheel?

It has a polished finish on an aluminum Holes style wheel from the 69 Series Classic range. The 5 on 5 pattern, 108 bore and -12 offset decide whether this wheel mounts.

Are lug nuts included with the PXA1069-6873?

Whether lug nuts or a center cap come with this wheel is not confirmed. Check the arriving parts, and confirm the hub hardware you need before buying.

When is a hub-centric ring needed?

A hub-centric ring is used when the wheel's center bore is larger than the hub pilot, so the wheel centers on the hub rather than on the lug nuts. Confirm the ring's inside and outside diameters match your wheel and hub before fitting it.
