Pro Comp 43 Series Sledge, 17x9 Wheel with 5 on 5 Bolt Pattern – Satin Black and Milled Finish – 5143-7973

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 43 Series Sledge 17×9, part number PXA5143-7973
  • 5 on 5 bolt pattern, center bore 87
  • Satin black and milled spoke wheel
  • Offset -6, backspacing 4.5

Description

Overview

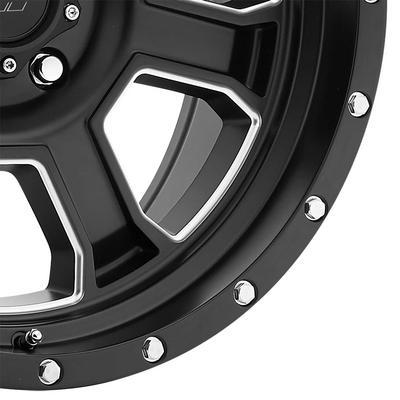

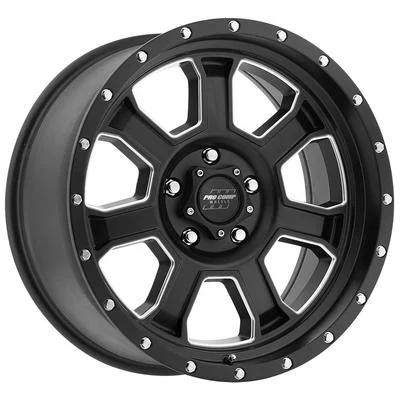

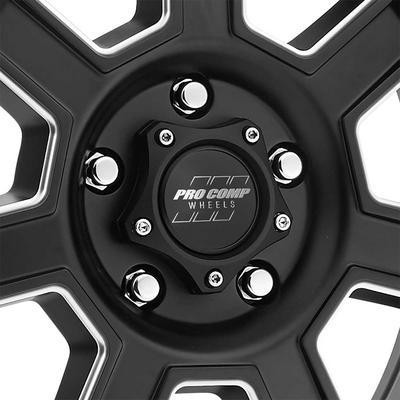

The Pro Comp 43 Series Sledge 17×9 wheel, part number PXA5143-7973, is a 17-inch aluminum spoke wheel that is 9 inches wide. It has a 5 on 5 bolt pattern and a satin black finish with milled accents, named in the series as 43 Series Sledge satin black and milled.

The wheel uses an 87 center bore, a -6 offset and a backspacing of 4.5. It is built with low-pressure casting and carries a load rating of 2500 to 3650 lbs per wheel. It is universal fit and is not assigned to a vehicle.

Key features

  • Low-pressure cast aluminum
  • 17-inch diameter and 9-inch width
  • 5 on 5 bolt pattern
  • Center bore 87
  • Offset -6 and backspacing 4.5
  • Satin black with milled accents

Clearance on a 17-inch spoke

Spoke wheels leave open gaps that show the brake parts, so brake dust and grime build up on the inner barrel and caliper area more than on solid faces. A regular rinse helps keep the caliper visible for inspection. Look for brake fluid residue, scoring on the rotor, and pads that wear unevenly.

A -6 offset with 4.5 backspacing places the mounting face outward and leaves less room inside the wheel. Measure caliper clearance with the wheel on the hub, then check the inner suspension parts through the spokes at full steering lock.

Milled accents collect road grit in the recessed areas. A soft brush and mild soap clean them well, and a periodic check of the lug nuts and bolt holes helps catch loosening early. Re-torque the lug nuts after the first few drives.

  • Measure brake caliper clearance with the wheel mounted
  • Check lug nut tightness after the first drives
  • Clean recessed milled areas to see wear and cracks
  • Inspect spokes for cracks near the hub

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5143-7973
Wheel diameter 17 inches
Wheel width 9 inches
Bolt pattern 5 on 5
Center bore 87
Offset -6
Backspacing 4.5
Load rating 2500 to 3650 lbs per wheel
Style Spoke
Finish Satin black, milled
Construction Aluminum
Series 43 Series Sledge

Vehicle fitment

No vehicle is named for this 17×9 Sledge, which is universal fit. Check the 5 on 5 bolt pattern and 87 center bore against the hub, and measure the -6 offset against the brake caliper and fender.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 4.5 backspacing leaves less inner room than deeper wheels, so confirm caliper and inner suspension clearance with the wheel mounted before driving.

The 17-inch diameter and 9-inch width describe the wheel size, while the 5 on 5 pattern and 87 center bore define the hub fit. The -6 offset and 4.5 backspacing set the face position, so measure clearance to the caliper before mounting.

What’s included

One 17×9 satin black wheel with milled accents is included. Inspect the package contents against your installation first.

SKU: PXA5143-7973 Categories: ,

Questions & Answers

Is the PXA5143-7973 a 5 on 5 wheel?

Yes. The bolt pattern is 5 on 5 with an 87 center bore. The wheel is 17 inches in diameter and 9 inches wide, so compare these with your hub before ordering.

What load rating does the Sledge have?

The load rating is 2500 to 3650 lbs per wheel. Check that the rating suits your vehicle's weight and intended use before choosing this wheel.

Is this Sledge made for a particular vehicle?

No. It is universal fit and is not built for a specific make or model. Choose it by bolt pattern, center bore, offset and clearance for your application.

Do spoke wheels need more frequent cleaning?

Often, yes. Open spokes let brake dust and road grime reach the caliper and inner barrel. Rinsing the wheel regularly makes it easier to spot leaks, rotor wear and cracks around the spokes.

What should I look for when inspecting a spoke wheel?

Look for cracks around the spoke roots and hub, bent or loose spokes, and signs of rubbing on the tire or brake parts. Check lug nut tightness as well, since loosening can damage the bolt holes.
