Pro Comp 75 Series Trilogy Race Beadlock Wheel, 17x9 with 5 on 4.5 Bolt Pattern – Satin Black – 5175-796537

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 5x4.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17 x 9 aluminum beadlock wheel for 5 on 4.5 bolt pattern, satin black
  • Offset -30, backspacing 3.75, center bore 87
  • Eight-spoke Trilogy Race design with Grade 8 countersunk bolts
  • Wheel-only listing, no tires included

Description

Overview

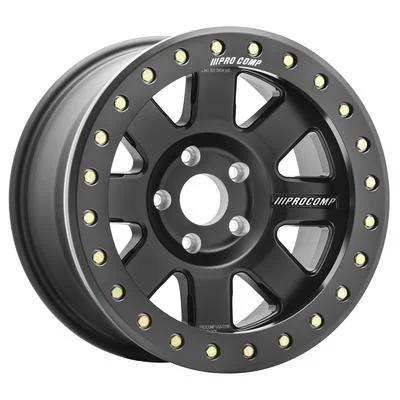

The Pro Comp PXA5175-796537 is a 17 x 9 aluminum beadlock wheel for a 5 on 4.5 bolt pattern, in satin black. It has an offset of -30, a backspacing of 3.75 and a center bore of 87. The wheel uses the Trilogy Race 75 Series design, with an eight-spoke face and a beadlock ring that clamps the tire bead to the rim for low-pressure running.

The wheel is a universal-fit part. Because the offset, backspacing and center bore differ from the 5 on 150 version of this series, confirm the hub and bolt pattern for your vehicle before buying.

Key features

  • Eight-spoke Trilogy Race design
  • Beadlock ring of double the original thickness, per the manufacturer
  • Ring forged from 6061 aluminum
  • Fully countersunk Grade 8 bolts
  • NORDLOCK washers on the ring hardware
  • Infini-Grip figure eight pattern on the bead area
  • Full 27% stronger than the previous version, per the manufacturer

Offset and clearance

Offset sets how far the wheel sits in or out relative to the hub, and backspacing sets how much room is behind the mounting face. A -30 offset pushes the tire outward, which can improve clearance inside the fender but can reach the outer edge of the fender sooner.

A wider stance changes scrub radius, steering effort and the load on wheel bearings, so the effect on handling is worth considering before choosing this offset. Wheel spacers and different tire widths are also options, but they change load paths and should be sized carefully.

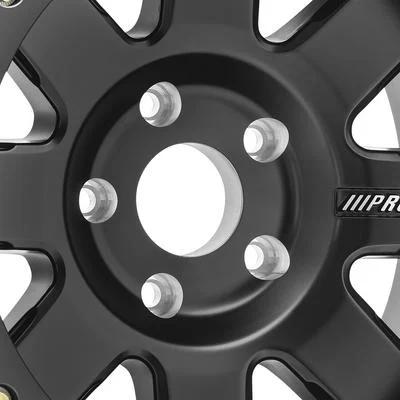

Center bore matters for hub-centric fit. A bore that does not match the hub relies on the lug nuts alone to center the wheel, which can cause vibration.

  • Check the 5 on 4.5 pattern against the hub
  • Measure fender clearance at full lock
  • Confirm brake caliper clearance before mounting

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5175-796537
Wheel size 17 x 9 inch
Style Beadlock, 75 Series Trilogy Race
Finish Satin black
Construction Aluminum
Bolt pattern 5 on 4.5
Offset -30
Backspacing 3.75
Center bore 87

Vehicle fitment

This is a universal-fit part, so compare the 5 on 4.5 bolt pattern, the center bore and the offset with your vehicle’s wheel specifications before ordering.

The -30 offset moves the wheel further out than the -6 offset in the 5 on 150 version, which changes fender and suspension clearance. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

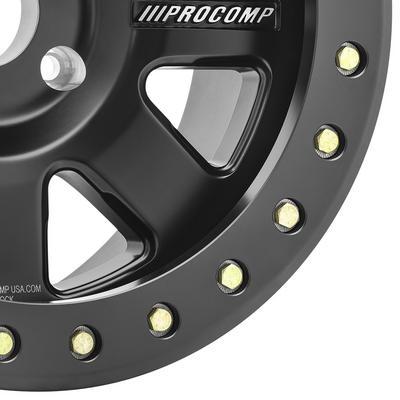

The bolts are fully countersunk, which helps keep them clear of rocks and impacts, and the ring is forged from 6061 aluminum. After mounting, check the beadlock ring hardware and retorque the bolts with the included washers. Check wheel clearance at full steering lock and brake caliper clearance with the tire you plan to run.

What’s included

The wheel comes with its beadlock ring hardware, including Grade 8 countersunk bolts and NORDLOCK washers. No tire is included.

SKU: PXA5175-796537 Categories: ,

Questions & Answers

Does the PXA5175-796537 fit a 5 on 150 hub?

No. This wheel fits a 5 on 4.5 bolt pattern. A 5 on 150 wheel is a separate part, PXA5175-795547, with a -6 offset.

What is the offset of this beadlock wheel?

The offset is -30 and the backspacing is 3.75. Compare these numbers with your vehicle's hub and clearance specifications before ordering, because they change where the tire sits.

Is a tire included with this wheel?

No. The wheel is sold with its beadlock ring hardware and no tire, so choose a tire that suits the 17 x 9 size and the clearance of your vehicle.

Why does a hub-centric fit matter?

A hub-centric wheel is centered by the hub itself, which keeps the wheel true and reduces vibration. Without a match, the lug nuts must center the wheel, so check the center bore against the hub before mounting.
