Pro Comp 60 Series Hammer, 18x9 Wheel with 5x5 Bolt Pattern – Satin Black Milled – 5160-897350

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 18x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5160-897350: 18×9 aluminum Hammer wheel, 60 Series, satin black milled
  • 5 on 5 bolt pattern, center bore 72, offset 0, backspacing 5
  • Load rating of 2500 to 3650 lbs per wheel across Pro Comp alloys
  • No vehicle is named for this wheel

Description

Overview

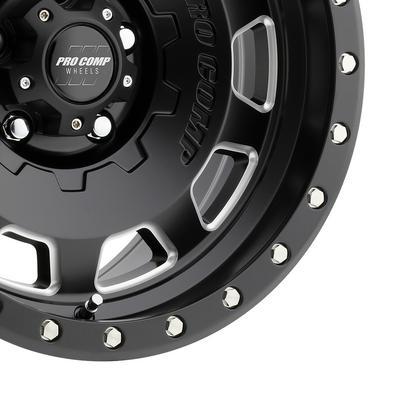

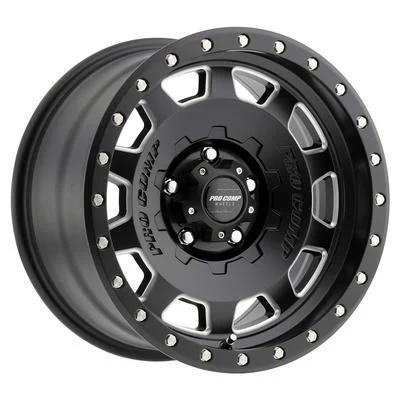

The Pro Comp PXA5160-897350 is an 18×9 aluminum wheel from the Pro Comp 60 Series Hammer line, with a satin black milled finish, a windowed face and a 5 on 5 bolt pattern. It is sold as a single wheel.

This 18×9 wheel is low-pressure cast from aluminum and carries a load rating in the 2500 to 3650 lbs per wheel range of the Pro Comp alloy line. It has a 72 center bore, a zero offset and a backspacing of 5, which places the mounting face close to the wheel’s centerline.

Key features

  • Low-pressure cast aluminum
  • 18-inch diameter, 9-inch width
  • 5 on 5 bolt pattern
  • Center bore of 72
  • Zero offset and 5 backspacing
  • Satin black milled finish
  • The Pro Comp Promise warranty is transferable.

Checking hub match before fitting

A wheel’s fit depends on the hub more than on any single figure. The center bore has to seat on the hub pilot so the wheel runs true, and the lug seats must match the wheel’s bolt holes. Many installers pull the wheel once after a test fit to confirm it sits flush against the hub before the lug nuts go on.

After the first few drives, re-check lug torque, since seats can settle on new wheels. Inspect the face and spokes for cracks or bends after any hard impact, and watch for slow air loss at the bead, which can point to a bent rim. Keep the satin black milled finish clean with mild soap, avoiding abrasive pads that dull the surface.

  • Test-fit the bare wheel before mounting the tire
  • Clean the mounting face and hub surface before installing
  • Torque lug nuts in a star pattern

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5160-897350
Series 60 Series Hammer
Style Windowed
Construction Aluminum
Finish Satin black milled
Diameter 18 inches
Width 9 inches
Bolt pattern 5 on 5
Center bore 72
Offset 0
Backspacing 5
Load rating 2500 to 3650 lbs per wheel (Pro Comp alloy range)

Vehicle fitment

No vehicle is named for this wheel. Universal fit on the specifications does not identify a truck or Jeep, so the 5 on 5 bolt pattern and 72 center bore are the figures to compare with the hub.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use a 5-lug hub with a 5 on 5 bolt pattern and a 72 center bore. Because the offset is zero, the tire sits at the centerline, so confirm inner clearance with the tire and brake parts before fitting. The center bore is the hole that centers the wheel on the hub, so the hub’s pilot must match it for the wheel to sit square.

What’s included

One 18×9 aluminum wheel. Check the package contents against your installation before starting.

SKU: PXA5160-897350 Categories: ,

Questions & Answers

What bolt pattern and center bore does the PXA5160-897350 use?

It has a 5 on 5 bolt pattern and a center bore of 72. Check both against the hub before ordering.

Does the PXA5160-897350 include lug nuts?

Check the package contents against your installation before starting, and confirm the lug nuts, center cap and any other hardware your hub needs before ordering the wheel.

What load rating applies to this Hammer?

Pro Comp rates its alloy wheels from 2500 to 3650 lbs per wheel, and this 18x9 model is part of that range.

How do I check a new wheel for hub fit before mounting a tire?

Test-fit the bare wheel on the hub first, with the lug nuts snug. It should sit flat against the mounting face with no rocking, and the center bore should sit on the hub pilot. Mount the tire only after the wheel seats square.
