Overview

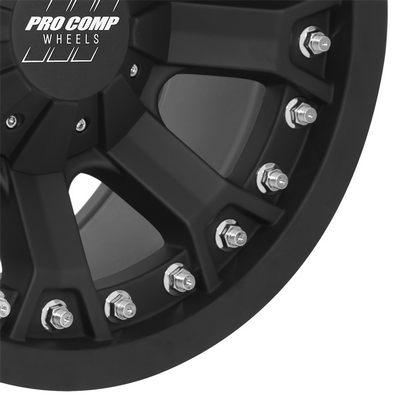

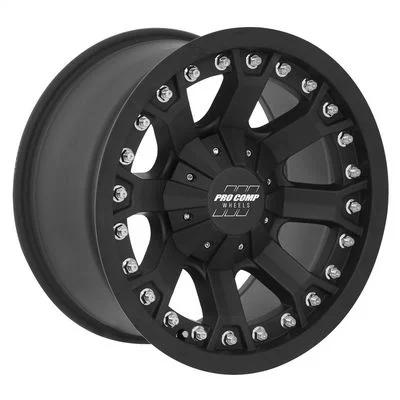

The Pro Comp 33 Series Grid 18×9 wheel, part number PXA7033-8939, is an 18-inch aluminum spoke wheel that is 9 inches wide. Its primary bolt pattern is 6 on 5.5, with 6 on 135 also offered, and the finish is matte black.
The wheel comes from the 33 Series Grid line and is made with low-pressure casting. With a 108 center bore, 0 offset and 5 backspacing, it suits the trucks and sport utility vehicles the brand targets. Because it is universal fit, the bolt pattern and center bore should be matched first.
Key features
- Low-pressure cast aluminum construction
- 18-inch diameter and 9-inch width
- 6 on 5.5 primary bolt pattern, 6 on 135 also listed
- Center bore 108
- Offset 0 with backspacing 5
- Black spoke design in the 33 Series family
Bolt pattern and bore matching
A six-lug wheel with two bolt patterns depends on exact hub matching. Confirm whether your hub is 6 on 5.5 or 6 on 135 before any other step, because the two are not interchangeable and a mismatch can leave the wheel loose. The center bore should match the hub hub-centric diameter so the wheel is centered before the lug nuts are tightened.
Clearance follows. The zero offset places the face near the centerline, so check the brake caliper and the suspension components before choosing a tire. Regular inspection helps too. Look at the lug seats, check the spoke joints after rough use, and replace worn hub hardware when it shows wear.
- Confirm 6 on 5.5 versus 6 on 135 on the hub
- Seat the wheel on the hub before tightening
- Replace worn studs or lug seats when found
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7033-8939 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 (also 6 on 135) |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 5 |
| Style | Spoke |
| Finish | Black, 33 Series flat black |
| Construction | Aluminum |
| Series | 33 Series Grid |
Vehicle fitment
No specific vehicle is named for this wheel; the brand gives it a universal fit. Choose it by the 6 on 5.5 or 6 on 135 bolt pattern and the 108 center bore, then check the 0 offset against your brake and fender clearance.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the bolt pattern is printed two ways in the specification (6 on 5.5 and 6 on 135), confirm which one your hub uses before mounting. The 0 offset places the mounting face at the wheel’s center line, so test clearance with the brakes and suspension installed.
What’s included
One 18×9 wheel in black is included. Check the package contents for center caps and lug nuts before installing.
