Pro Comp 69 Series Vintage, 15x10 Wheel with 6 on 5.5 Bolt Pattern – Polished – 1069-5183

Pro Comp Alloy Wheels

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA1069-5183: 15×10 polished aluminum Vintage wheel, 69 Series Classic
  • 6 on 5.5 bolt pattern, center bore 125, offset -47, backspacing 3.65
  • Holes style face, low-pressure cast construction
  • No vehicle is named for this wheel

Description

Overview

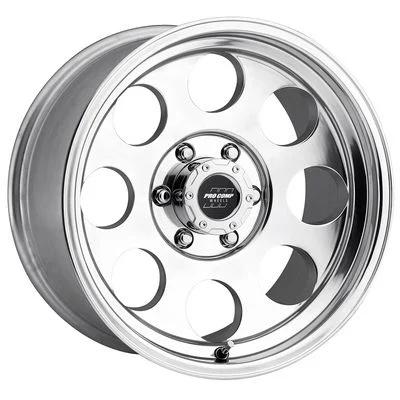

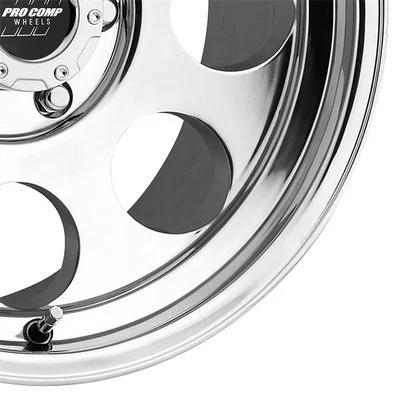

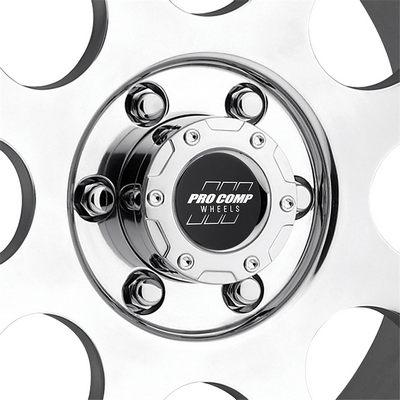

The Pro Comp PXA1069-5183 is a 15×10 polished aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style face and a 6 on 5.5 bolt pattern. It is sold as one wheel with a center bore of 125 and an offset of -47.

Pro Comp says its alloys are made with low-pressure casting and combine head-turning style with light weight in black, chrome or polished finishes. This polished model has a backspacing of 3.65, and the brand ties its high offset design to brake clearance on trucks and SUVs.

Key features

  • Low-pressure cast aluminum
  • Holes style face
  • 15-inch diameter, 10-inch width
  • 6 on 5.5 bolt pattern
  • Center bore of 125
  • Offset -47 with 3.65 backspacing

Lift height and clearance

Lift height and tire size both change how much room a wheel has. A taller tire moves the contact point outward and up, so the fender, brake caliper and steering components all need checking. Negative offset adds outward spacing, which is why clearance tests with the tire mounted are more reliable than measuring the rim alone. Before choosing a setup, look at how the suspension is configured and whether any aftermarket parts have changed its geometry.

Six-lug hubs are common on mid-size trucks and some SUVs, but the bolt pattern alone does not confirm a match. The hub pilot and center bore must seat without forcing, since a loose fit can cause vibration at speed. Seat the nuts evenly in a star sequence, then retorque them after the first drive.

  • Measure clearance at full left and right lock
  • Verify hub pilot size before mounting
  • Recheck lug torque after the first few trips

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA1069-5183
Series 69 Series Vintage (Classic)
Style Holes
Construction Aluminum
Finish Polished
Diameter 15 inches
Width 10 inches
Bolt pattern 6 on 5.5
Center bore 125
Offset -47
Backspacing 3.65

Vehicle fitment

No vehicle is named for this wheel, so it is a universal design that does not tie to one model. The 6 on 5.5 pattern and 125 center bore must match the hub, and the -47 offset needs a check of brake and steering clearance.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use a six-lug hub measuring 5.5 across the bolt holes. Confirm the hub pilot matches the 125 center bore before ordering, then test-fit with the tire to check the caliper.

What’s included

One 15×10 aluminum wheel. Lug nuts and a center cap are unclear, so review the delivered parts before fitting.

SKU: PXA1069-5183 Categories: ,

Questions & Answers

What bolt pattern is the PXA1069-5183?

It has a 6 on 5.5 bolt pattern and a center bore of 125. The offset is -47 and the backspacing is 3.65, so match all of these before buying.

Is this polished Vintage wheel a high offset design?

Pro Comp describes its alloys as designed with a high offset for brake clearance. This model's offset is -47, so confirm clearance on the vehicle before installing.

Are lug nuts included with the PXA1069-5183?

Lug nuts and a center cap are not confirmed as part of this wheel. Review the delivered parts against your installation, and confirm the hub hardware you need before ordering.

How do I know when a wheel needs replacing?

Replace a wheel that shows cracks, bends affecting the bead seat, or repeated slow air loss even after repair. Surface scratches on the face are usually cosmetic, but any crack near the spokes or hub area means the wheel should be retired.
