Overview
The Pro Comp 4-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK1122T (kit K1122T), is a stage 1 suspension lift for 1987 to 1991 Chevrolet and GMC V20 and V2500 trucks. It fits the Chevrolet V20 and V20 Suburban, the Chevrolet V2500 Suburban, the GMC V2500 and the GMC V2500 Suburban.
The kit lifts the truck 4 inches at stage 1 and carries a listed lift height range of 4 to 5.5 inches. Pro Comp lists 33 inches as the tire size. The rear uses a block or spacer with a block and U-bolt component. PRO-X shocks are listed at the front and the rear, and they are included.
Key features
- 4-inch stage 1 suspension lift
- PRO-X shocks at the front and rear, included
- Block or spacer rear lift with a block and U-bolt component
- Tire size of 33 inches
- Lift height range of 4 to 5.5 inches
Wheel and tire fit checks
Tire size has a direct effect on fit, gearing and how the truck handles, so it should be considered before the lift is installed. Larger tires can rub the fenders at full steering lock or when the suspension compresses over a bump. Wheel offset and backspacing also determine whether a tire clears the inner fender and the suspension parts.
Heavier tires add load to the brakes, wheel bearings and axle components, which may call for an inspection as part of the job. Tire pressure and tread pattern affect traction and ride on pavement as well as in mud. Checking clearance with the truck fully loaded gives a more realistic picture than a static measurement.
- Check fender clearance at full steering lock
- Inspect wheel bearings after the tire change
- Recheck tire rub after a few hard turns
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK1122T |
| Kit code | K1122T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Tire size | 33 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt |
| Shocks included | Yes |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1987 Chevrolet V20 and the 1987 to 1988 Chevrolet V20 Suburban, both in the Custom Deluxe, Scottsdale and Silverado versions, along with the 1989 to 1991 Chevrolet V2500 Suburban, the 1987 GMC V2500 and the 1987 to 1991 GMC V2500 Suburban.
The list does not include 1986 and earlier V20 models or 1992 and later V2500 models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rear block or spacer changes the rear height, so measure the truck after installation and have the alignment checked.
What’s included

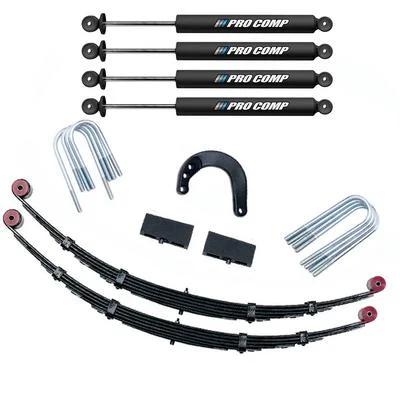

The 4-inch stage 1 lift kit with PRO-X front and rear shocks.
