Pro Comp 4 Inch Lift Kit with ES9000 Shocks – K4017B

Pro Comp Suspension

Shop Ford Excursion Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 leaf spring lift for 2000–2005 Ford Excursion
  • Front sway bar spacers, bump stops and pitman arm correction

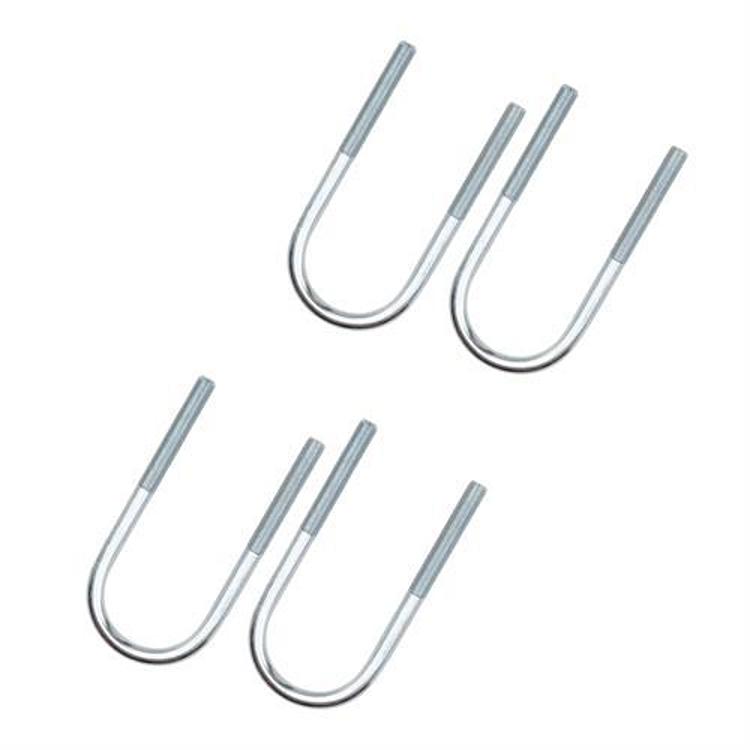

  • Rear block and U-bolt kit with add-a-leafs

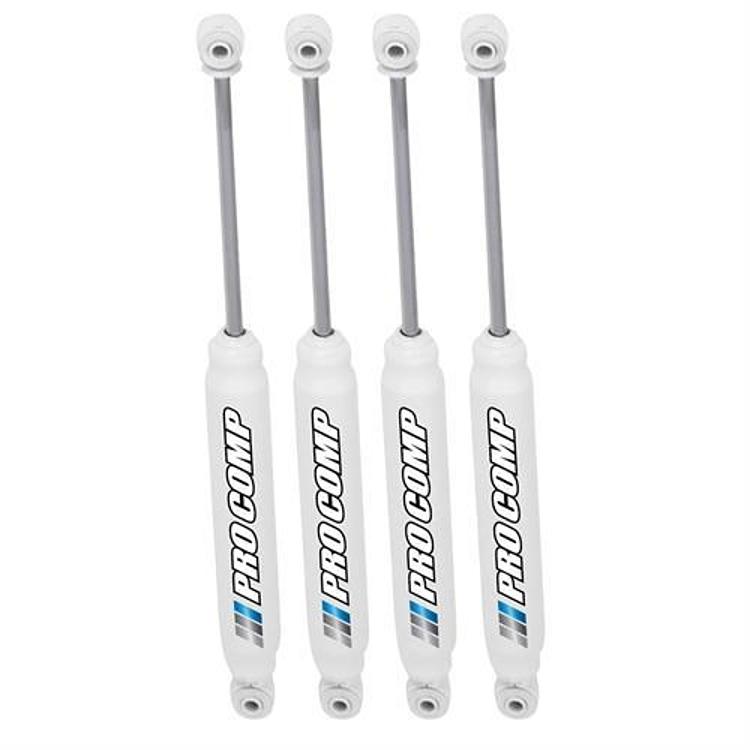

  • ES9000 front and rear shocks

Description

Overview

The Pro Comp K4017B is a 4-inch stage 1 leaf spring lift with ES9000 front and rear shocks. It fits the 2000–2005 Ford Excursion in the Eddie Bauer, Limited, XLS and XLT trims.

The front uses leaf springs with sway bar spacers and bump stops, and a pitman arm is included for steering correction. The rear uses a block and U-bolt kit with add-a-leafs. The lift height range is 3 to 4.99 inches.

Key features

  • 4-inch lift, stage 1

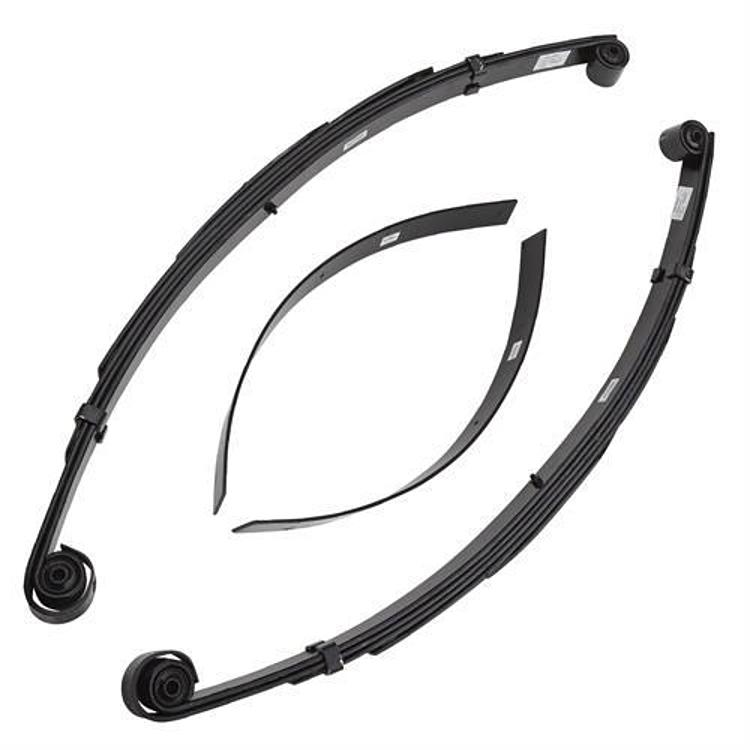

  • Front leaf springs
  • Front sway bar spacers and bump stops

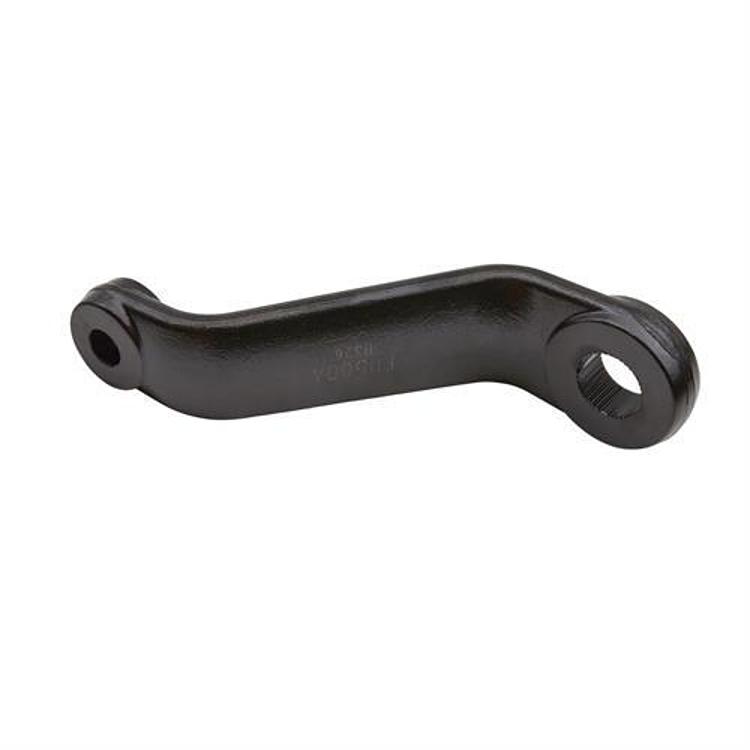

  • Pitman arm steering correction
  • Rear block, U-bolt kit and add-a-leafs
  • ES9000 front and rear shocks

Excursion suspension wear

Excursions are heavy full-size SUVs, and the front and rear springs carry more weight than a typical half-ton. Over time the stock leaf packs and bushings can sag, which makes a lift feel uneven from side to side. A leaf spring lift works best when the existing components are checked first, since any worn part will be loaded harder once the height is raised.

A block and U-bolt rear lift changes the axle location, so the driveshaft, brake lines and rear shock angles should be checked after installation. Passengers and cargo change the load every trip, so a periodic check of ride height and tire wear keeps the setup predictable. Steering and alignment work often follows a lift of this kind.

  • Leaf pack sag and bushing wear
  • Driveshaft angles at the rear axle
  • Brake line length after the axle moves
  • Tire wear across the front and rear

Specifications

Brand Pro Comp Suspension
Part number K4017B
UPC 614901124439
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Leaf spring
Front lift Leaf springs
Rear lift Block, U-bolts and add-a-leaf

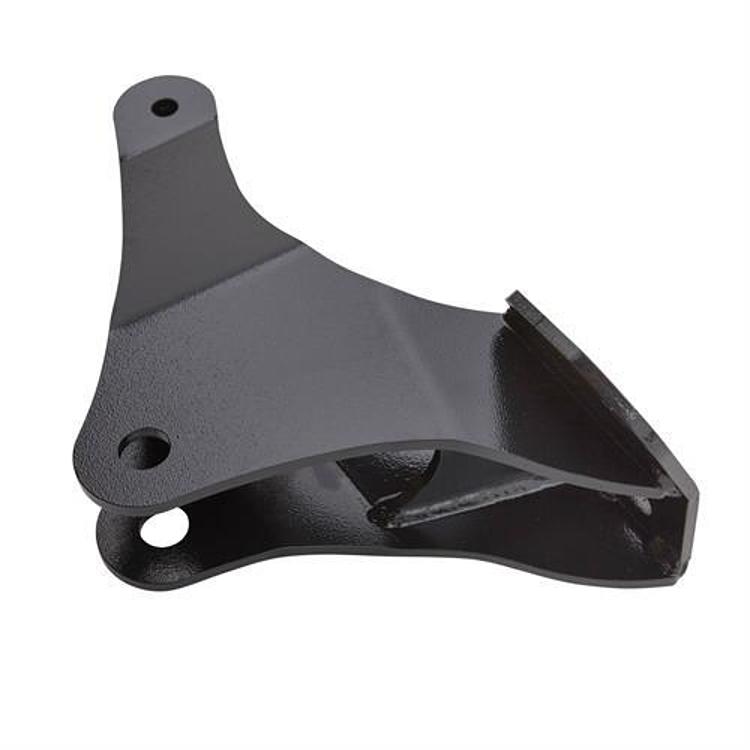

Steering correction Pitman arm
Front shocks ES9000
Rear shocks ES9000
Shock boots Not included

Vehicle fitment

Covered models are 2000–2005 Ford Excursion trucks in the Eddie Bauer, Limited, XLS and XLT trims. Super Duty and other Ford trucks are not covered.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Block and U-bolt rear lifts change the rear axle location, so check the driveline angles after installation. The pitman arm changes the steering geometry, so check the steering centering once the kit is in.

What’s included

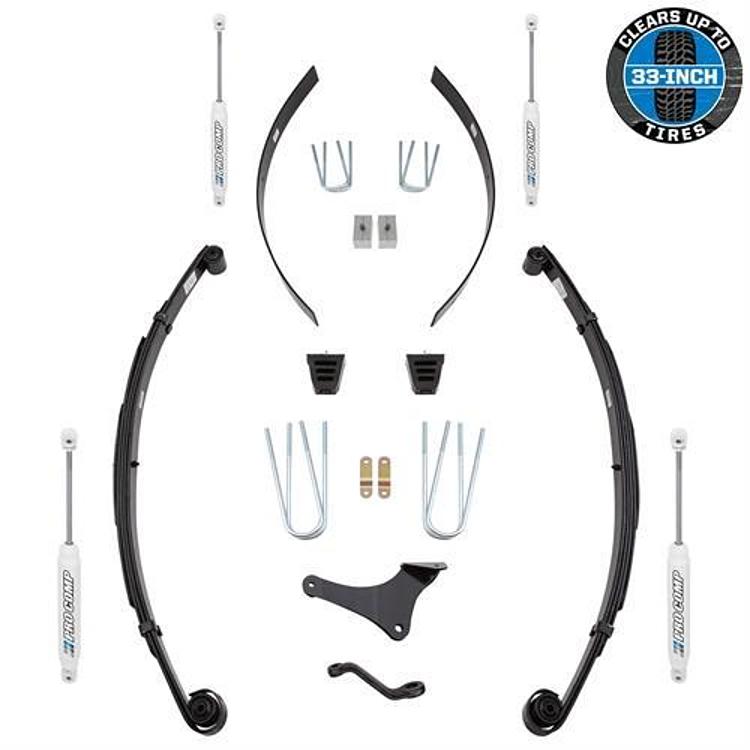

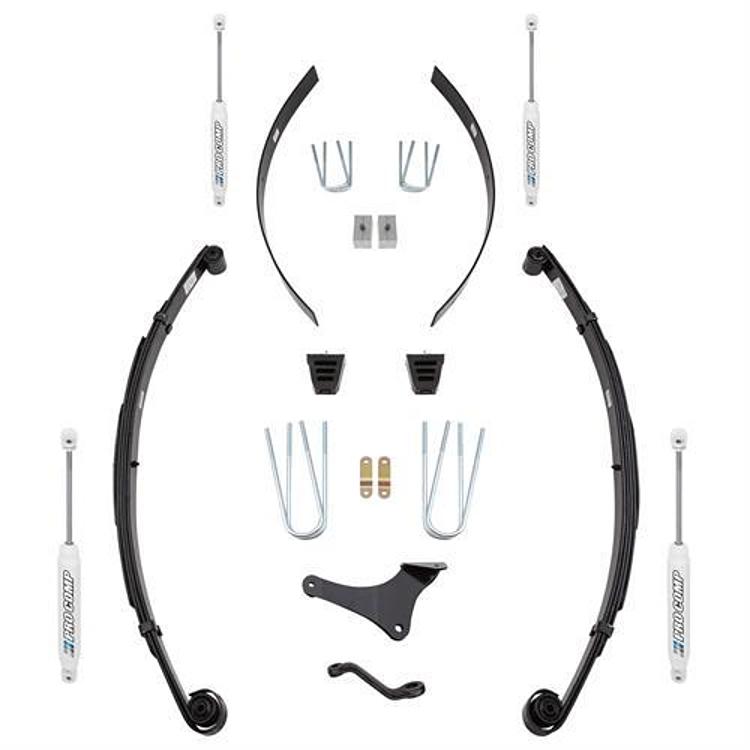

The kit includes front leaf springs, sway bar spacers, bump stops, a pitman arm, the rear block and U-bolt kit with add-a-leafs, and ES9000 front and rear shocks. Shock boots are not included.

SKU: EXPK4017B Category:

Specification

Shipping weight 238.81 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford Excursion2000–2005Eddie Bauer, Limited, XLS, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4017B fit a 2003 Ford Excursion?

Yes. It fits 2000–2005 Ford Excursion models, which includes 2003. Make sure the trim is Eddie Bauer, Limited, XLS or XLT before ordering.

Does the K4017B fit a Ford F-250 Super Duty?

No. This kit covers the Excursion only, so Ford F-250 Super Duty trucks are not covered by this part number.

Are shock boots included with the K4017B?

No. This Excursion kit does not include shock boots, so any boots for the ES9000 shocks must be bought from another source.

Should the Excursion's brake lines be checked after a rear block lift?

Yes. Once the axle moves, brake lines can be under more tension or closer to a rub point. Look at them for stretch, chafing and leaks, and make sure they route cleanly through the new position.
