Pro Comp 5 Inch Stage I Lift Kit with Pro Runner Shocks – K4035BP

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Stage 1 coil spring lift with Pro Runner front shocks and radius arm brackets
  • Pitman arm steering correction and brake line extension brackets
  • Front sway bar links and bump stop extensions
  • Rear block and U-bolt kit with add-a-leafs

Description

Overview

The Pro Comp K4035BP is a stage 1 coil spring lift with radius arm brackets and Pro Runner front shocks. Fitment spans 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks with the Harley-Davidson Edition included.

This kit is the Pro Runner front shock version of the K4035B. The front uses coil springs with radius arm brackets, and sway bar links and bump stop extensions are included. A pitman arm corrects the steering, and the rear uses a block and U-bolt kit with add-a-leafs. The product name gives a 5-inch lift, while the specifications list 6 inches.

Key features

  • Stage 1 lift
  • Pro Runner front shocks
  • Front coil springs with radius arm brackets
  • Front sway bar links and bump stop extensions
  • Pitman arm steering correction
  • Brake line extension brackets

Stage 1 setup basics

A stage 1 lift is a modest step for a heavy-duty truck, mainly aimed at clearing larger tires and improving ride height without a full suspension rebuild. Because the front coil springs and radius arm brackets change the ride, the factory bushings, sway bar links and steering components see more movement than before. Tire size and wheel offset matter too, since a change in size can rub the fender or inner liner during full steering lock.

Front shocks are a place where a different style of damper shows its effect quickly, so a shock built for the new spring rate is a sensible match. Inspect the bump stops, brake hoses and pitman arm joints during routine service, and listen for clunks on rough roads, which point to wear. After the first few trips, recheck every fastener, including the U-bolts on the rear block, since they settle as the truck is driven.

Specifications

Brand Pro Comp Suspension
Part number K4035BP
UPC 70000637838
Lift 6 inches, stage 1 (per specifications)
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arm brackets
Rear lift Block, U-bolts and add-a-leaf
Steering correction Pitman arm
Front shocks Pro Runner

Vehicle fitment

Fitment covers 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks, including the Harley-Davidson Edition and related trims. Ford model years beyond that range are outside this fit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arm brackets change the front geometry, so set the alignment and check the pitman arm steering centering after installation. The rear block and U-bolts also change the driveline angles, which should be checked as well.

What’s included

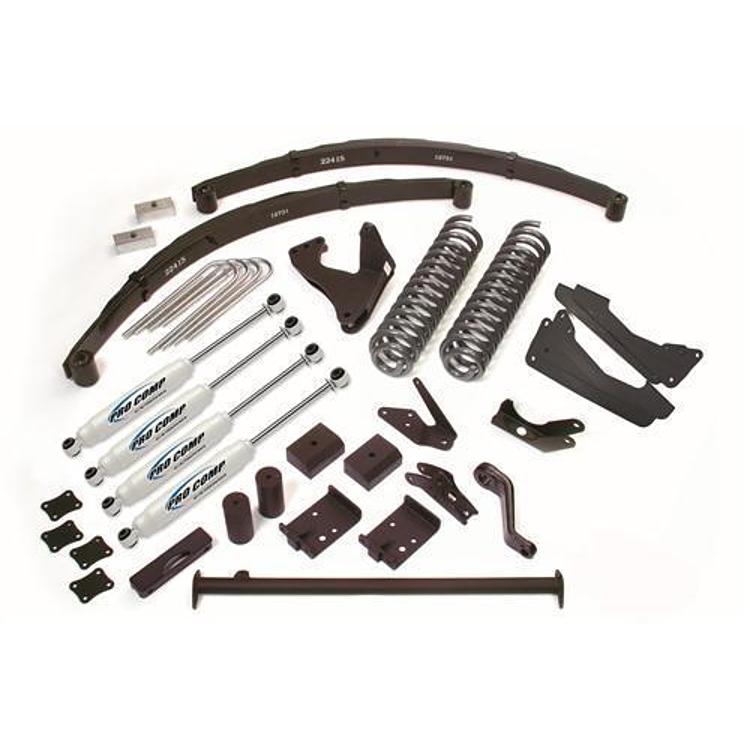

The kit includes front coil springs, radius arm brackets, front sway bar links, bump stop extensions, brake line extension brackets, a pitman arm, a rear block and U-bolt kit with add-a-leafs and Pro Runner front shocks.

SKU: EXPK4035BP Category:

Specification

Shipping weight 228.15 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2005–2007Harley-Davidson Edition, King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty2005–2007Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How does the K4035BP differ from the K4035B?

Both are coil spring lifts with radius arm brackets for the same Super Duty trucks. The K4035BP uses Pro Runner front shocks, while the K4035B lists ES9000 shocks.

Does the K4035BP fit a 2006 Ford F-250 Super Duty?

Yes. It fits 2006 Ford F-250 Super Duty models, which falls inside the 2005–2007 range. Compare the trim name with the trims this kit covers before you order.

Is the lift 5 inches or 6 inches?

The product name gives 5 inches, while the specifications list 6 inches with a lift height range of 5 to 6.99 inches. Confirm the height before ordering.

Can I run larger tires after this lift?

Often, yes, but it depends on tire size, wheel offset and the clearance you have. Check fender clearance at full steering lock and again after a few drives, since rubbing can damage both the tire and the body.
